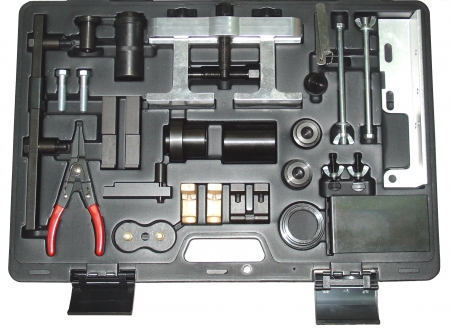

Master Clutch Service Tool Set

KA-7578K(2)
KA-7578K(2)

Model

KA-7578K

ADD INQUIRY

Description

  • The Set contains all the tools needed to service clutches on the following compressors:
  • General Motors A6, R4, and DA6; 6 Pole R4, V5 and HR-6; Ford FS6; Chrysler C171; Nippondenso 6P 148A; Sanden 507, 508 and 510 and Pitts and Warner clutches.
  • All in H/D blow case

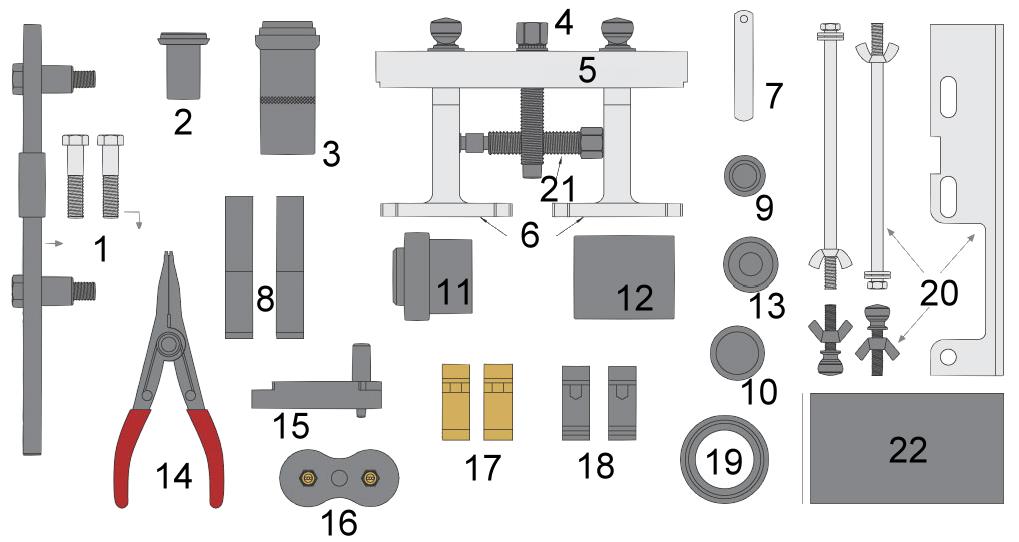

Contains:

 1. KA-0177  compressor holding fixture & hardware 12. KA-0183  coil installer
 2. KA-0178  rotor & bearing pilot 13. KA-0156  shaft protector pilot
 3. KA-0114  pulley bearing remover & driver 14. KA-0136  external retaining ring pliers
 4. KA-0102  pulley arbor 15. KA-0184  clutch bearing staking tool
 5. KA-0132  puller body 16. KA-0185  GM compressor test plate
 6. KA-0133  pulley remover jaws 17. KA-0186  rotor & bearing puller jaws
 7. KA-0101  feeler gauge set 18. KA-0187  pulley removal jaws
 8. KA-0179  coil puller jaws 19. KA-0110  bearing & pulley installer
 9. KA-0180  pulley hub removal pilot 20. KA-0188  compressor holding fixture set
10. KA-0181  pulley removal pilot 21. KA-0189  universal puller arboy
11. KA-0182  clutch assembly installer 22. KA-0190  rotor & bearing puller arbor
