Master Import Compressor Clutch, Seal And Bearing Service Tool Set

KA-7561K(2)
KA-7561K(2)

Model

KA-7561K

ADD INQUIRY

Description

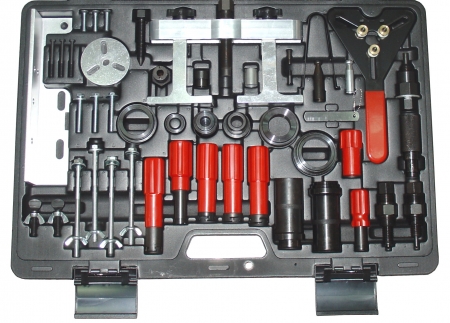

  • Includes all the tools necessary to replace seals, clutches and clutch bearing on Diesel Kiki (Zexel), Hitachi, Mitsubishi, Nippondenso, Seiko-Seiki and Sanden 505, 507, 508, 510, 575, 708 and 709. Set is packaged into a heavy blow case. Set includes instruction manual.

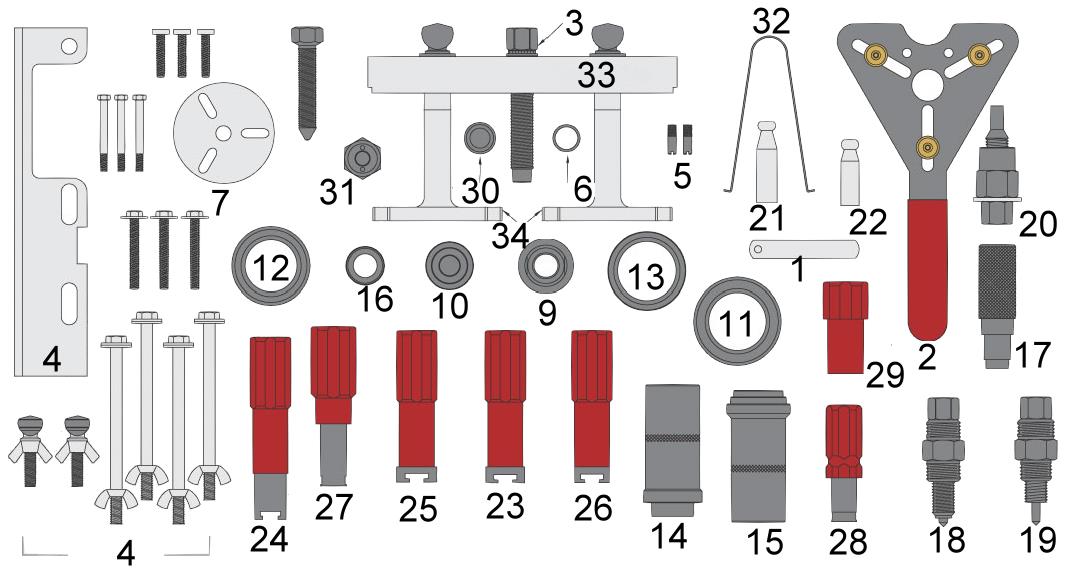

Contains:

 1. KA-0101  universal feeler gauge set 19. KA-0118  diesel kiki clutch plate remover
 2. KA-5010  universal clutch holding tool 20. KA-0119  SANDEN plate installer
 3. KA-0102  pulley arbor 21. KA-0120  seal protector sleeve
 4. KA-0103  compressor holding fixture 22. KA-0121  SANDEN 505 seal protector sleeve
 5. KA-0104  clutch puller thrust pin 23. KA-0122  MITSUBISHI seal remover & installer
 6. KA-0105  MITSUBISHI seal remover lock sleeve 24. KA-0123  YORK seal remover & installer
 7. KA-0106  MITSHBISHI/SANDEN clutch plate remover 25. KA-0124  seal remover & installer
 9. KA-0108  diesel kiki nut remover 26. KA-0125  diesel kiki seal remover & installer
10. KA-0109  pulley puller pilot 27. KA-0126  seal seat remover & installer
11. KA-0110  bearing & pulley installer 28. KA-0127  SANDEN 505 SEAL SEAT REMOVER
12. KA-0111  SANDEN 505 bearing & pulley installer 29. KA-0128  diesel kiki retainer ring installer
13. KA-0112  bearing & pulley installer 30. KA-0129  CLUTCH PLATE INSTALLER
14. KA-0113  diesel kiki pulley drive 31. KA-0130  HITACHI spanner plug remover & installer
15. KA-0114  pulley bearing remover & installer 32. KA-0131  MITSUBISHI seal seat remover
16. KA-0115  seal seat installer 33. KA-0132  puller body
17. KA-0116  seal seat remover 34. KA-0133  pulley remover jaws
18. KA-0117  NIPPONDENSO clutch plate
