Master Sanden Compressor Tool Service Set

KA-7560K(1)
KA-7560K(1)

Model

KA-7560K

ADD INQUIRY

Description

  • All specialized tools necessary to service seal, clutch and clutch bearing on Sanden 505, 507, 508, 510 and 575. Complete with H/D blow case and instructions.

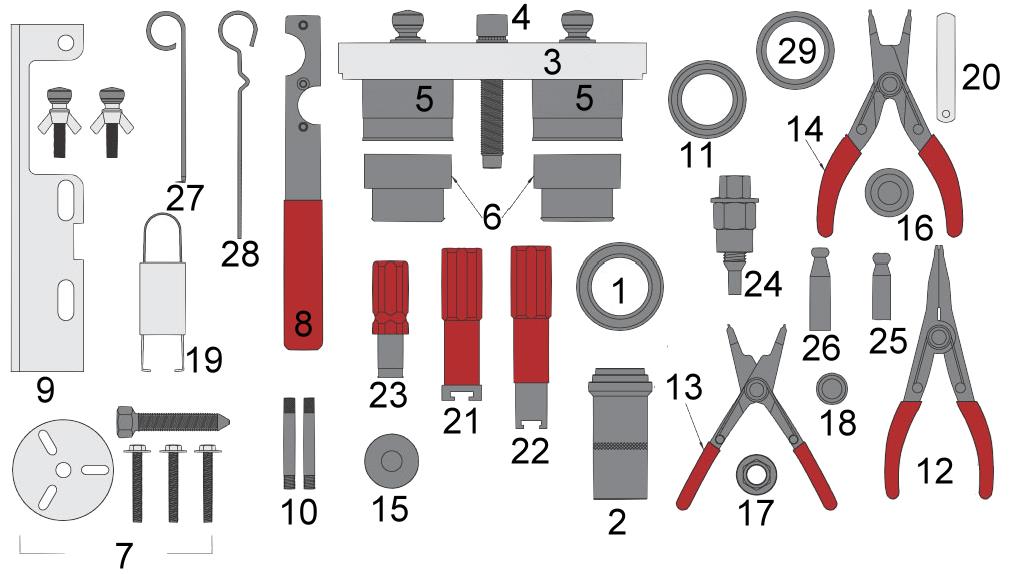

Contains:
 1. KA-0110  bearing & pulley installer 16. KA-0147  shaft protector pilot
 2. KA-0114  pulley bearing remover/drive 17. KA-0148  seal retainer remover/installer
 3. KA-0132  puller body 18. KA-0129  clutch plate installer
 4. KA-0102  puller arbor 19. KA-0137  seal seat remover
 5. KA-0141  pulley & clutch remover jaws 20. KA-0101  feeler gauge set
 6. KA-0142  pulley & clutch remover jaws 21. KA-0125  seal remover/installer
 7. KA-0106  clutch plate remover 22. KA-0123  YORK seal remover/installer
 8. KA-0143  clutch holder 23. KA-0127  SANDEN 505 seal seat remover
 9. KA-0144  holding fixture & hardware 24. KA-0119  clutch plate installer
10. KA-0145  pilot studs 25. KA-0121  SANDEN 505 seal protector sleeve
11. KA-0111  SANDEN 505 bearing & pulley installer 26. KA-0120  seal protector sleeve
12. KA-0136  external retainer remover/installer 27. KA-0138  O-ring seal sleeve remover
13. KA-0135  internal snap ring plier 28. KA-0148  oil level checker
14. KA-0134  internal snap ring plier 29. KA-0128  diesel kiki clutch installer
15. KA-0146  clutch installer pilot
