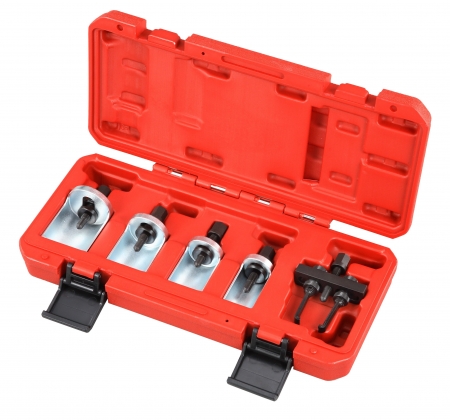

5pcs Wiper Arm Puller Set

Windshield Tool
KA-7266
KA-7266

Model

KA-7266

ADD INQUIRY

Description

  • Universal applications
  • Provide 4 adjustable removers and one high versatility puller fits nearly all difficult wiper arm removing works.
  • For deep and narrow space, the “limited space killer” puller is absolutely recommended.
KA-7266(PULLER 示意圖)KA-7266(PULLER 示意圖1)

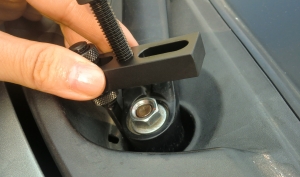

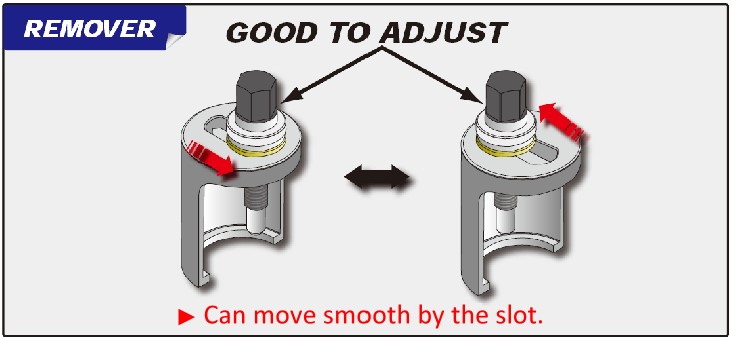

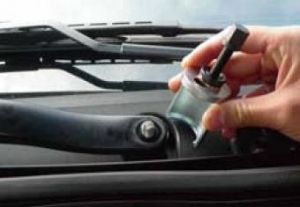

How to use remover
1. Remove the plastic cover
2. Choose spanner and release the nut
3. Choose a suitable size remover from this set
4. Hook the remove and seize the target. Adjust the spindle height and distance. The slot helps position work well.
5. Screw the spindle with hand or 12mm spanner, then release the target easily.
6. Remove the wiper arm, work done

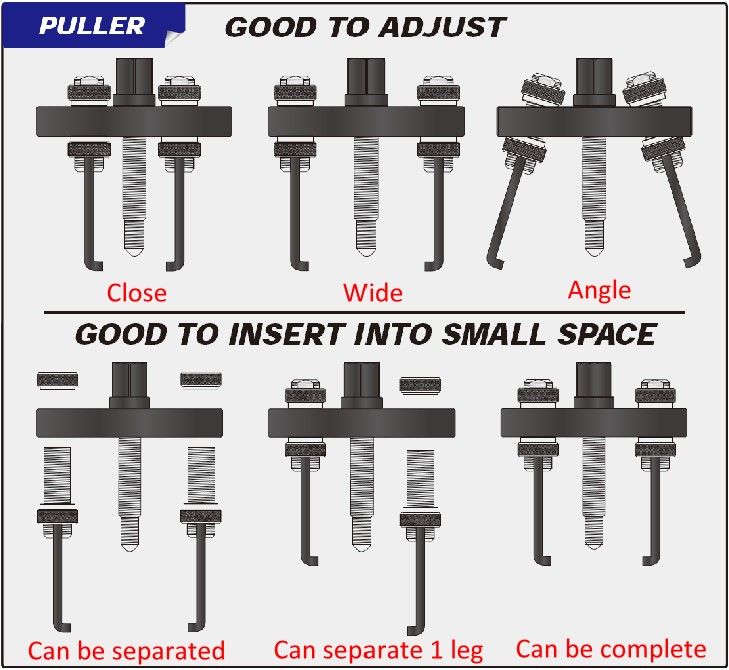

How to use the puller
1. Remove the plastic cover
2. Choose spanner and release the nut
3. Screw out the small nut on top; install one leg first and adjust tool
4. Install second leg and adjust two legs to seize well
5. Screw the spindle clockwise with 12mm spanner
6. Release the target and remove the wiper arm easily.
