Light Cover Remover Set – 2pcs/set
Model
KA-6982
Specification:
- Easily removes automobile front and tail light covers without cracks.
- Universal application for light covers with clips, but not for those fixed with screws and nuts.
- Slip-resistant handle provides secure gripping.
- Plastic probes avoid creating scrapes on light cover surface.
Instruction:

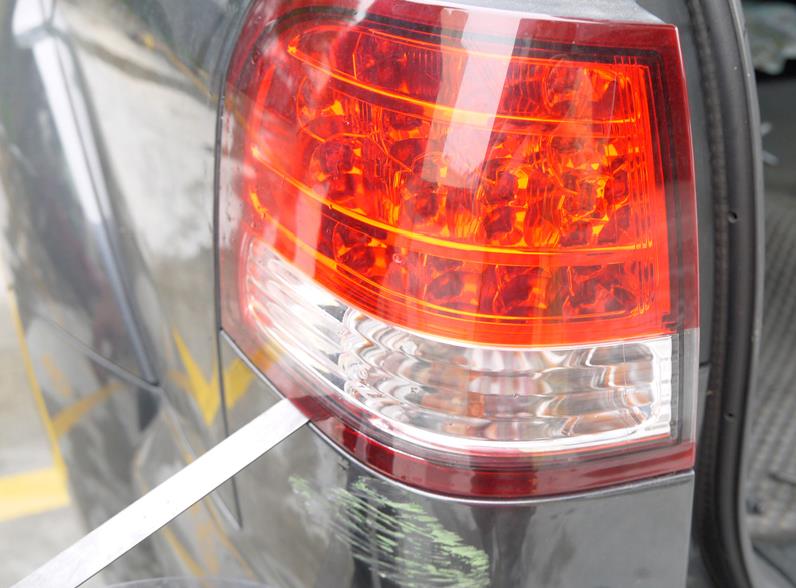

Step 1: Locate light cover clips by the plastic probe. (fig. 1)

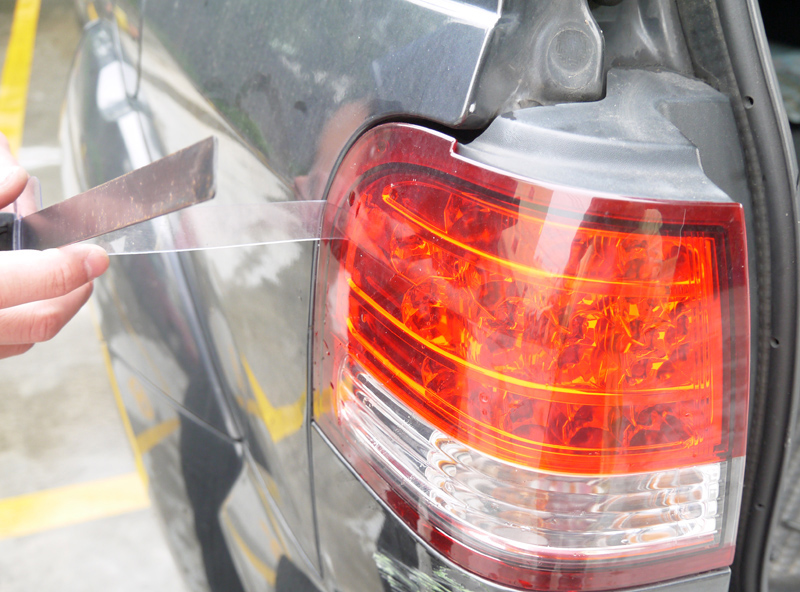

Step 2: Make sure the clips location. (fig. 2)

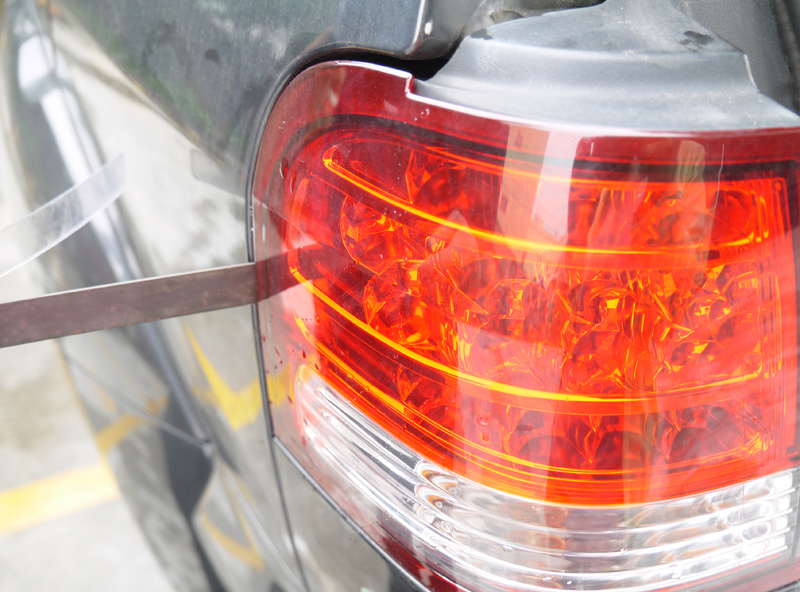

Step 3: Use the straight or angled remove to lift up the light cover. (fig. 3)
.jpg)

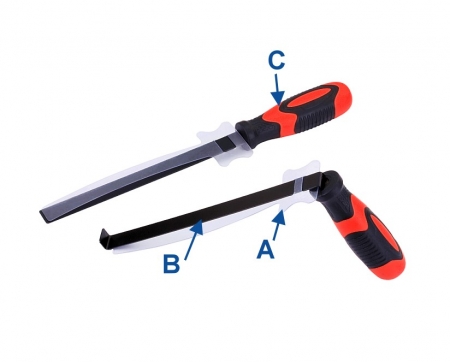

Material:
A: Plastic probe
B: Remover
C: Handle
Step 1: Locate light cover clips by the plastic probe. (fig. 1)
Step 2: Make sure the clips location. (fig. 2)
Step 3: Use the straight or angled remove to lift up the light cover. (fig. 3)

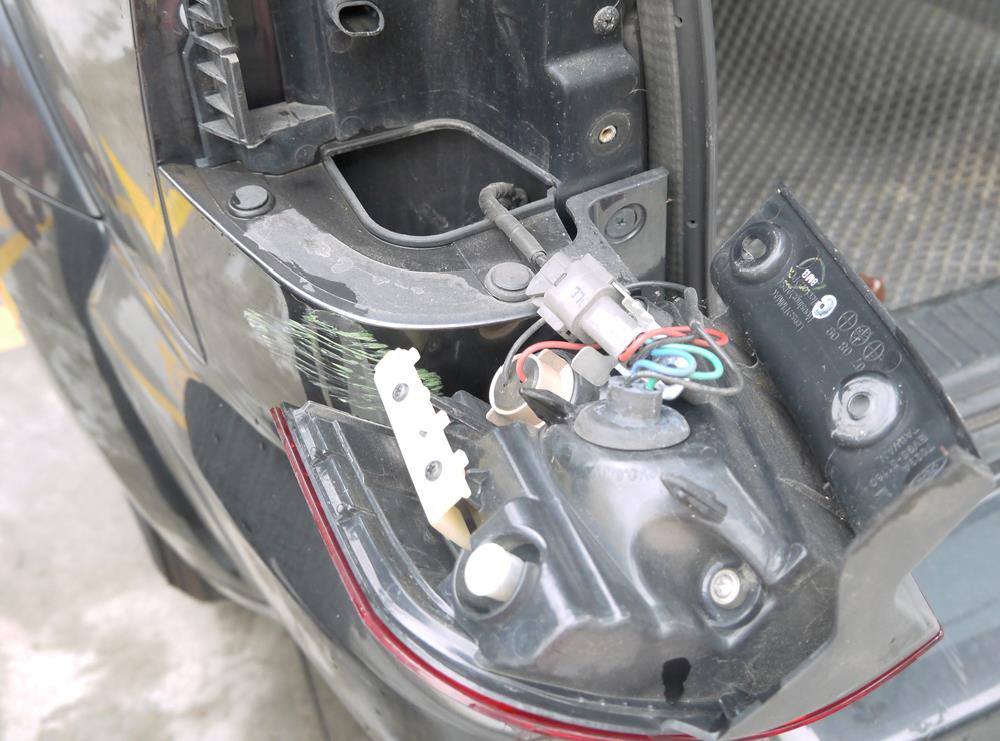

Step 4: Light-related services can be done.
.jpg) Fig. 1 |
.jpg) Fig. 2 |
.jpg) Fig. 3
|
.jpg) Fig. 4
|

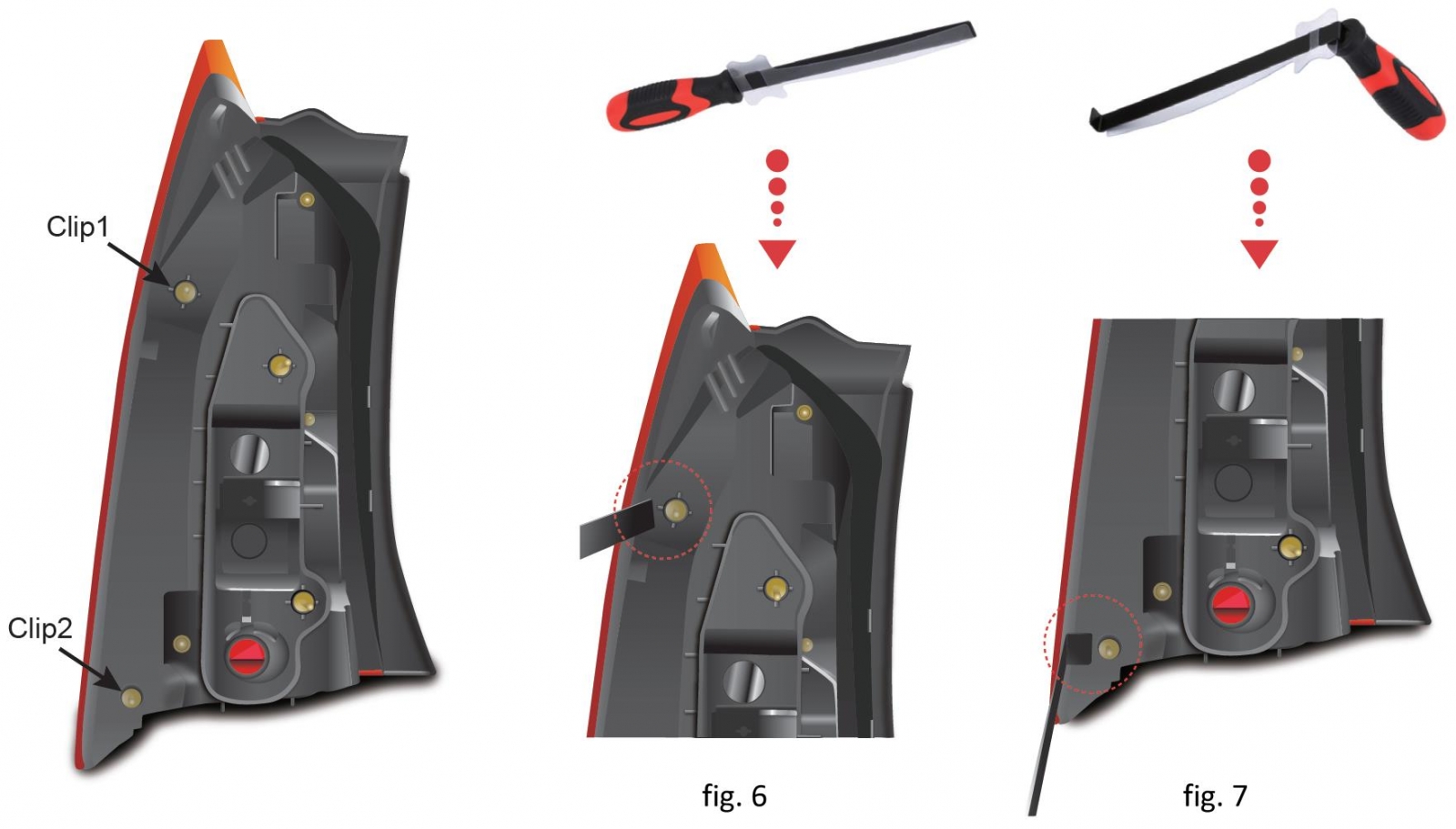

- Clip 1, could be removed by the straight remover. (fig. 6)
- Clip 2, with its limited access, could be removed by the angled remover. (fig. 7)
Material:
A: Plastic probe
| Material | PC |
|---|---|
| Length | 198mm |
| Width | 18.4mm |
| Thickness | 0.7mm |
B: Remover
| Material | S50C |
|---|---|
| Hardness | 38 – 39 degree |
| Surface finish | Black |
| Length | 220mm |
| Width | 17mm |
| Thickness | 1.2mm |
C: Handle
| Color | Black & Red |
|---|---|
| Length | 118mm |
| Diameter | 28.2mm |
