Description

• After making necessary adjustments to front caster & camber and rear camber, center the steering wheel in the straight ahead position.
• Remove the gearbox cap bolt.

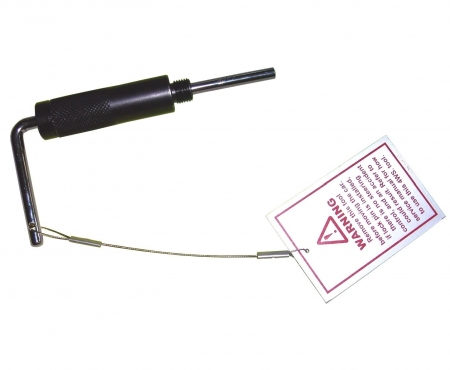

• Install the KA-2415 tool into the rear steering gearbox.
• Turn the steering wheel right or left slightly until the tool seats fully.
• Note: the red mark on the pin will not be visible when the tool is completely seated properly.
• Caution: Do not turn the steering wheel when the tool is in place or damage may result to the tool or gearbox.
• When the alignment is completed, remove the KA-2415 tool and replace the gearbox cap bolt. Road test vehicle for proper steering wheel alignment.
