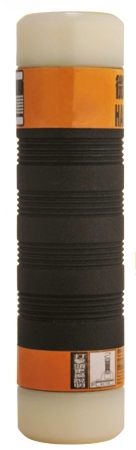

Hammer-Adjusters (PU strike face)

KT-P5025~KT-T5050
KT-P5025~KT-T5050

Model

KT-P5025 / KT-P5030 / KT-P5035 / KT-P5040 / KT-P5045 / KT-P5050

ADD INQUIRY

Description

  • Basic: steel structure and include steel shot.
  • Materials: the strike face have PU materials and Pure copper materials.
  • Feature: the design fit to attack the any position, strike face can repeat change.
  • Hardness: PU strike face (60D、65D、70D)
  • Pure copper strike face (pure copper 99.9%)
  • Application: Machine tool, lathe, milling machine, combined, maintenance factory, repair machine.

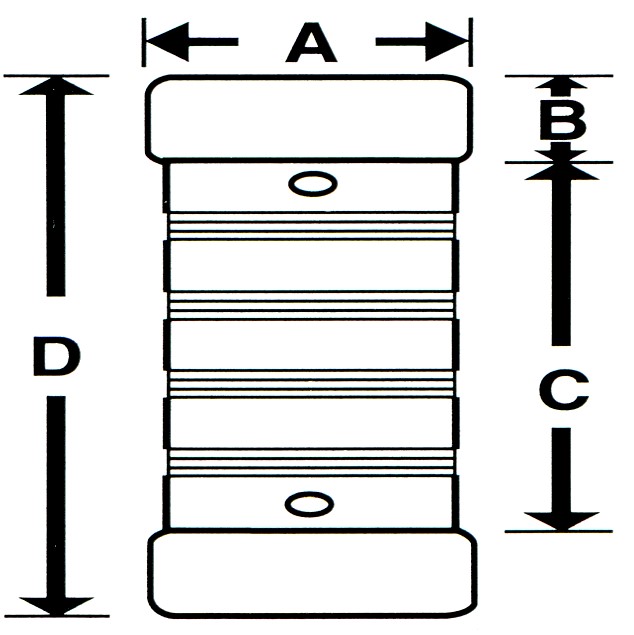

Model A B C D Weight
KT-P5025 25 18 110 146 410g
KT-P5030 30 18 120 156 650g
KT-P5035 35 20 121 161 710g
KT-P5040 40 21 126 168 940g
KT-P5045 45 21 130 172 1200g
KT-P5050 50 21 140 182 1440g

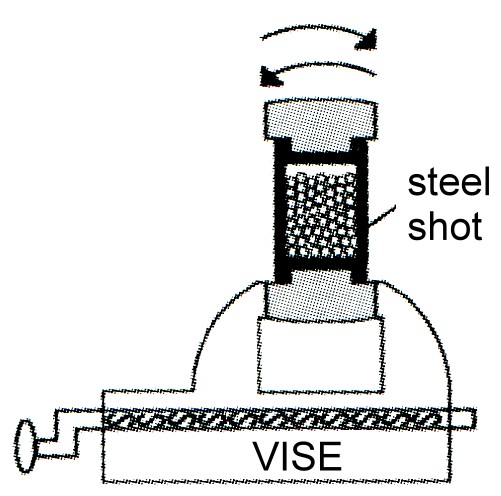

Take out the strike face
Use the VEST to shock both side the bad PU face, the bad strike face will take of.

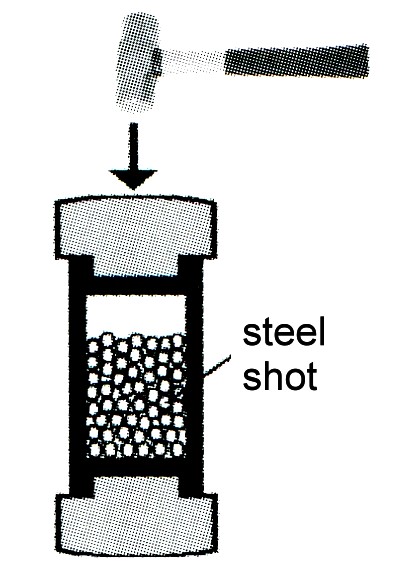

Install the strike face
Press the new PU face into the adjusters-hammer. Use hammer to beat the PU face and fixed.
