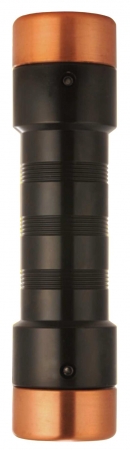

Hammer-Adjusters (Pure copper strike face)

KT-C5025~KT-C5045
KT-C5025~KT-C5045

Model

KT-C5025 / KT-C5030 / KT-C5035 / KT-C5040 / KT-C5045

ADD INQUIRY

Description

  • Basic: steel structure and include steel shot.
  • Materials: the strike face have PU materials and Pure copper materials.
  • Feature: the design fit to attack the any position, strike face can repeat change.
  • Hardness: PU strike face (60D、65D、70D)
  • Pure copper strike face (pure copper 99.9%)
  • Application: Machine tool, lathe, milling machine, combined, maintenance factory, repair machine.
Model A B C D Weight
KT-C5025 25 14 110 138 515g
KT-C5030 30 17 120 154 840g
KT-C5035 35 18 131 167 1060g
KT-C5040 40 21 136 178 1500g
KT-C5045 45 25 140 190 1980g
Replace the pure copper strike face

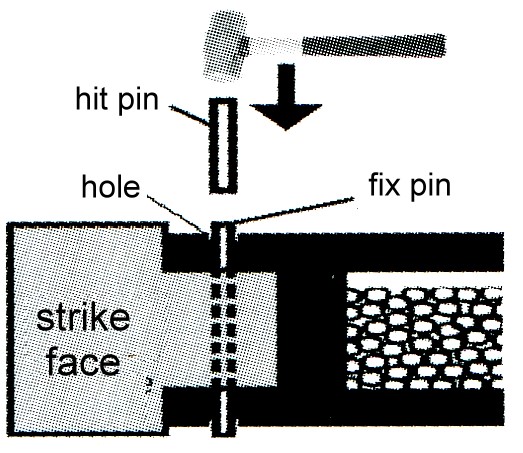

Take out the strike face
Use the hit pin and hammer to beat the fix pin, the bad strike face will take off

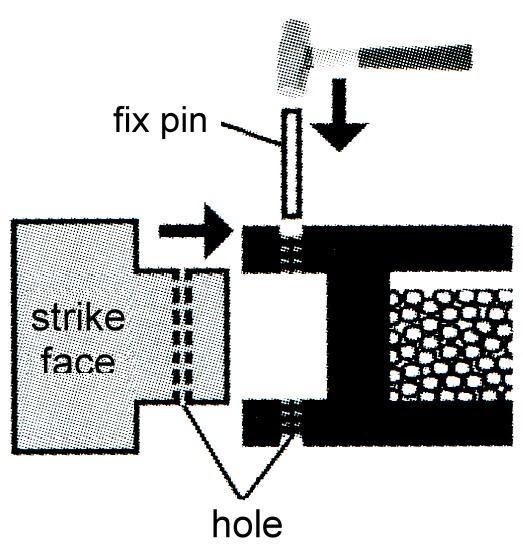

Install the strike face
Make up the hole by new strike face and adjusters-hammer. Use the hammer to beat the fix pin to fixed new strike face.
