Automotive Dent Repair Set

KA-9053
KA-9053

Model

KA-9053

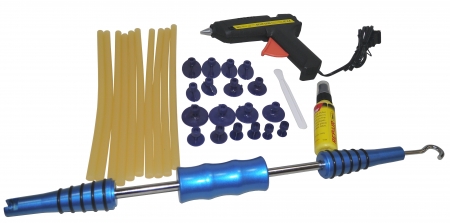

Specification:

  • KA-9046A Multi-Functional Slide Hammer -1pc
  • Hot Glue Gun -1pc
  • PDR Glue 10pcs
  • Dent Repair Peptizing Agent (60c.c.) -1pc
  • KA-9045B 18pcs Super Connector Head -1set
  • Plastic Razor Blade -1pc
  • Plastic Razor Blade -1pc
ADD INQUIRY
Instruction:
Step 1: Remove dent surface. (fig.1)
Step 2: Select suitable joints in accordance with dent sizes, and select applicable repair tool handle. (fig.2)
Step 3: Use high-performance glue guns. It take only 8 minutes for use after plug-in. The operation temperature is around 1565-200℃. Uniformly apply the glue the surface of joints. Quickly and lightly place on the dent locations (No pressing). (fig.3)
Step 4: Wait 50 seconds or 1 minute for completely bonding joint and dent together. (fig.4)
Step 5: In operation, if is required to slowly adjust the applying force till totally removing the dent to original. (fig.5)
Step 6: After finishing repairs, spray the glue solvent on the bonding spot of joint and glue. Meanwhile, slightly remove remaining glue using glue-removing sheet. (fig.6)


Fig.1
Fig.2
Fig.3

Fig.4
Fig.5
Fig.6

Notice: it will not be suggested to process the repairs for the following dent damages, such as:
1. oversized dents
2. dents on auto body consisted of multilayered sheets.
3. dents on auto body with soldering spots.
4. dents repeatedly bake-painted.
5. dents auto body partially puttied and bake-painted.
