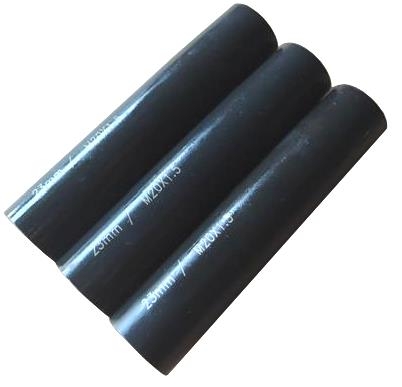

Wheel Centering Sleeve Tool Set

KA-2166-1821
KA-2166-1821

Model

KA-2166-1821 / KA-2166-1824 / KA-2166-2023 / KA-2166-2026 / KA-2166-2226 / KA-2166-2232 / KA-2166-7826 / KA-2166-7830

ADD INQUIRY

Description

  • Easy to fit centered commercial vehicle wheels.
  • This tool is screwed on and off with a standard commercial vehicle.
  • Prevents wheel bolt threads and bolt holes against damage.
  • Use with 1/2” ratchet head

Item No. Wheel bore Bolt thread Suitable Q’ty
KA-2166-1821 21mm M18x1.5 DAF, IVECO, MAN, RENAULT, VOLVO 3pcs/set
KA-2166-1824 24mm M18x1.5 DAF, IVECO, MAN, RENAULT, VOLVO 3pcs/set
KA-2166-2023 23mm M20x1.5 Mercedes 3pcs/set
KA-2166-2026- 26mm M20x1.5 DAF, FORD, MAN, RENAULT, VOLVO, MERCEDES, SCANIA 3pcs/set
KA-2166-2226 26mm M22x1.5 Alloy wheels MAN, MERCEDES 3pcs/set
KA-2166-2232 32mm M22x1.5 Alloy wheels MAN, MERCEDES 3pcs/set
KA-2166-7826 26mm 7/8-11 Alloy wheels SCANIA 3pcs/set
KA-2166-7830 30mm 7/8-11 Alloy wheels SCANIA 3pcs/set


Operation:
  1. Remove wheel assembly , and then clean wheel studs and mounting holes

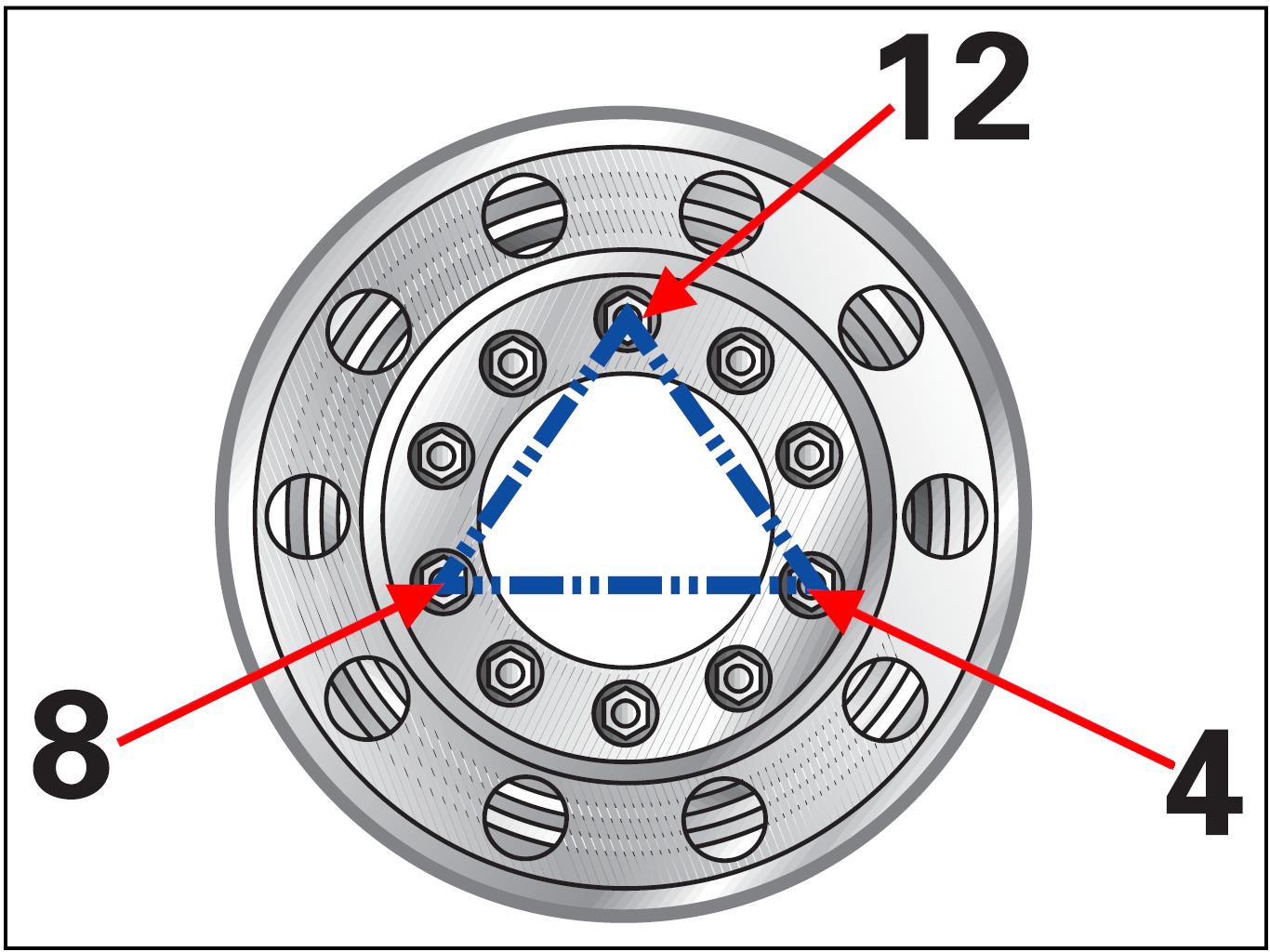

  2. Install centering tools at 12, 4 and 8 o’clock positions (Fig. 1)
  3. Install wheel over centering tools.
  4. Install wheel lug nuts and lightly tighten.
  5. Remove centering tools and replace with remaining nuts.
  6. Tighten all nuts to wheel / stud to manufacturer’s specification.
 Note: Always follow truck, tire and wheel manufacturer’s recommended mounting and install procedures.
Remove centering tools before moving truck.
 Fig.1
