Tire Valve Tool

KA-8384
KA-8384
KA-8384(1)

Model

KA-8384

ADD INQUIRY

Description

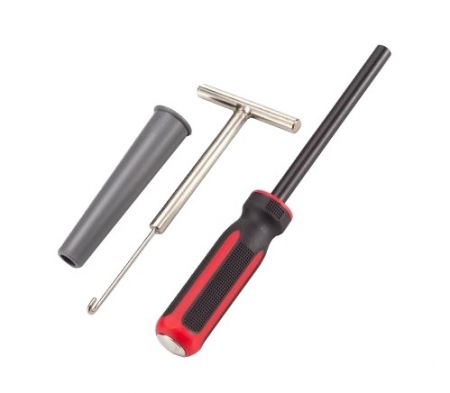

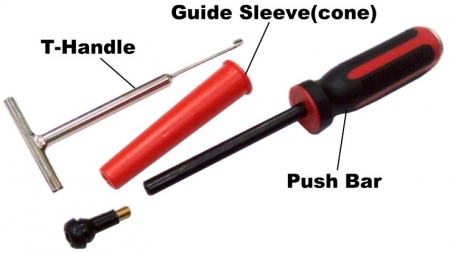

  • Tire valve installer and remover.
  • Remove / install tire valves without removing the tire.
  • Deal for replacing leaking valves (rubber bodied tire) on cars/ vans/ motorcycles …etc
  • Noticed: Not suitable for tires with TMPS.
Instruction:

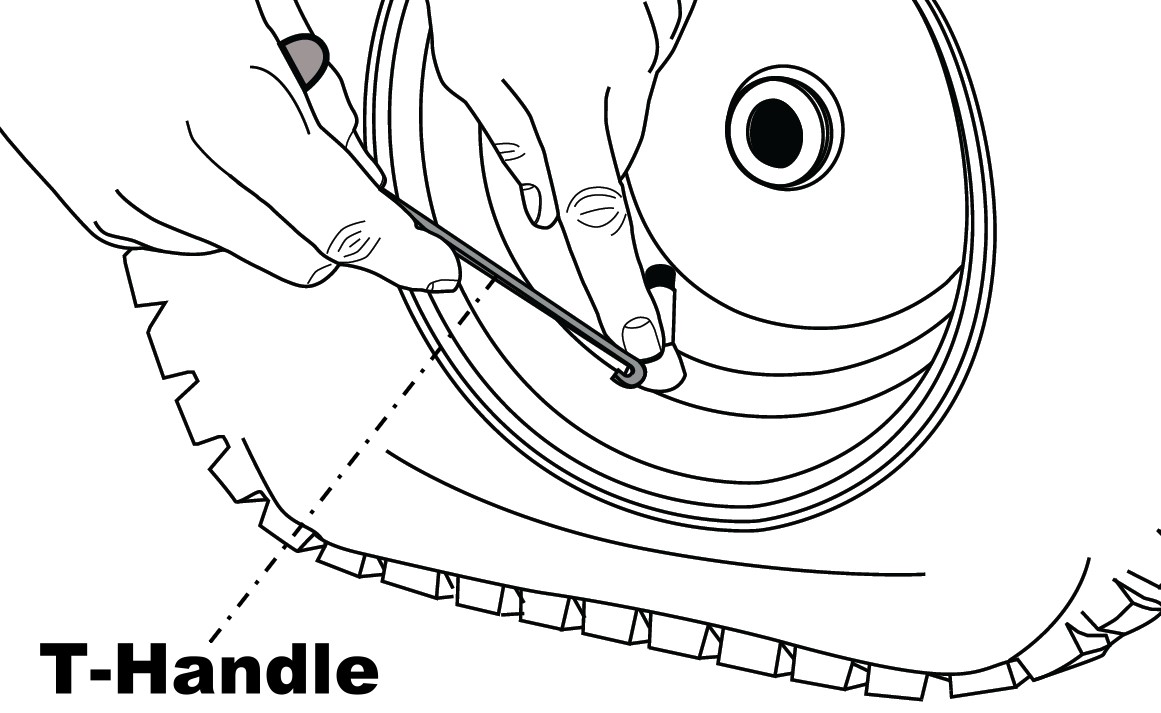

1. Deflate tire if not already flat. Insert T-Handle between rim and valve stem.

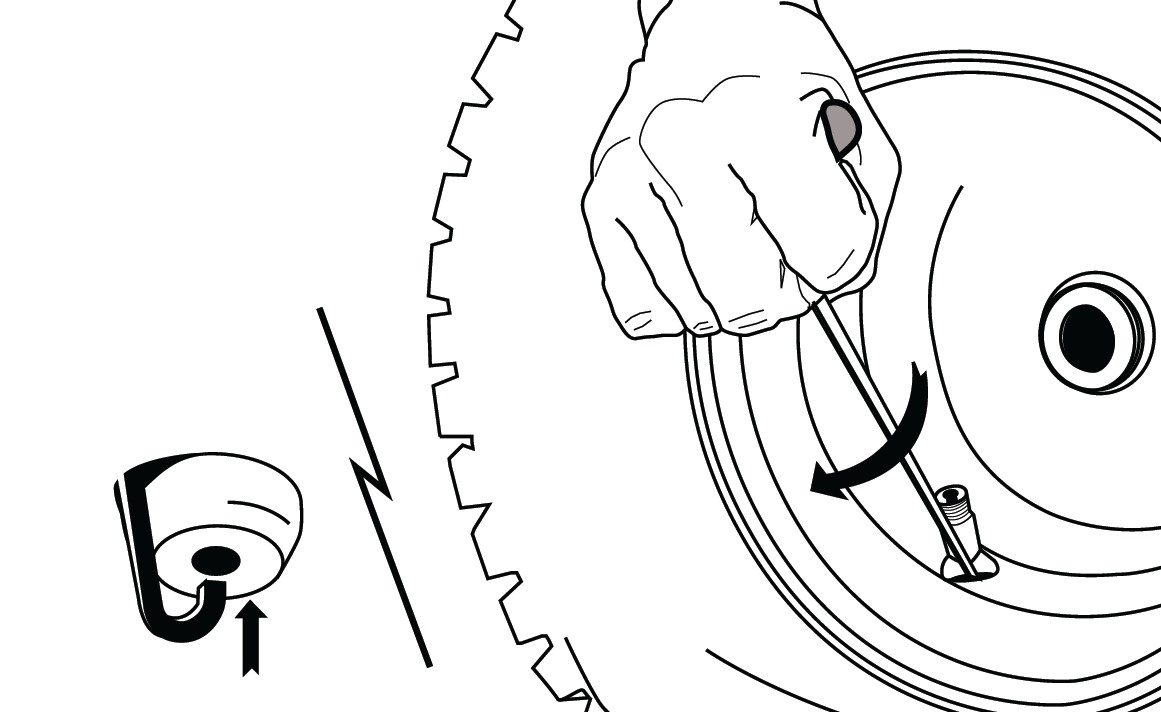

2. Turn T-Handle 1/4 turn to hook valve stem and pull out.

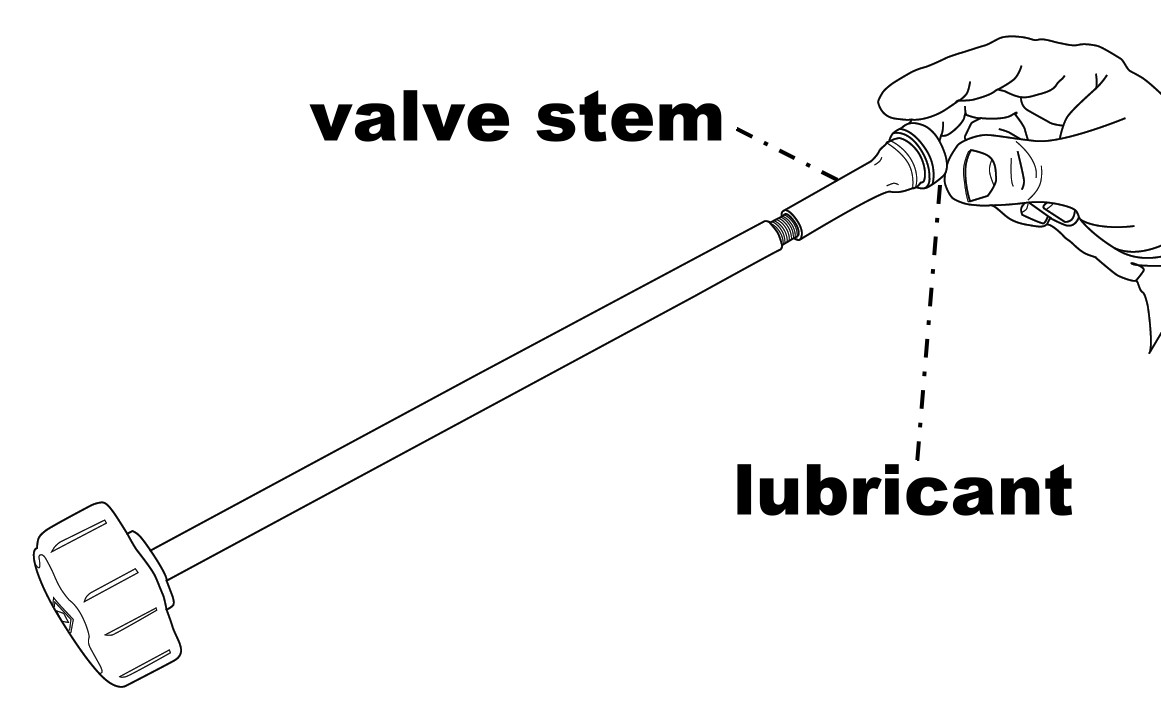

3. Thread new valve stem on end of plunger rod. Apply tire/rubber lubricant to the base of the valve stem.

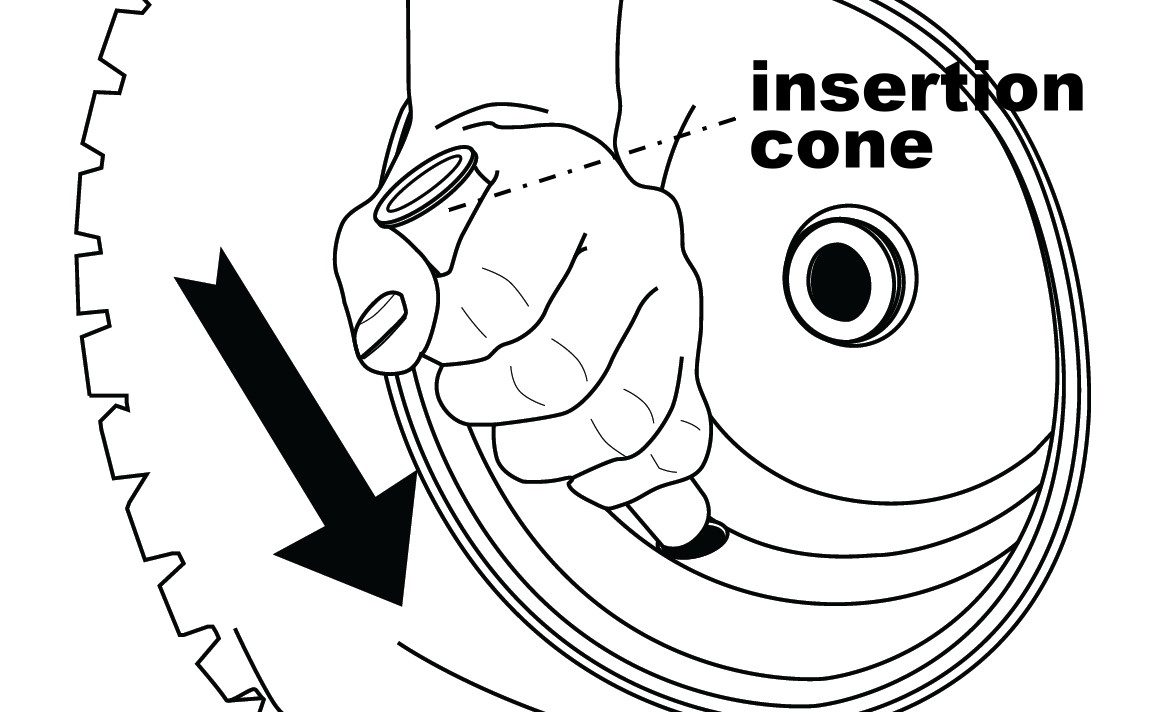

4. Position insertion cone over stem hole.

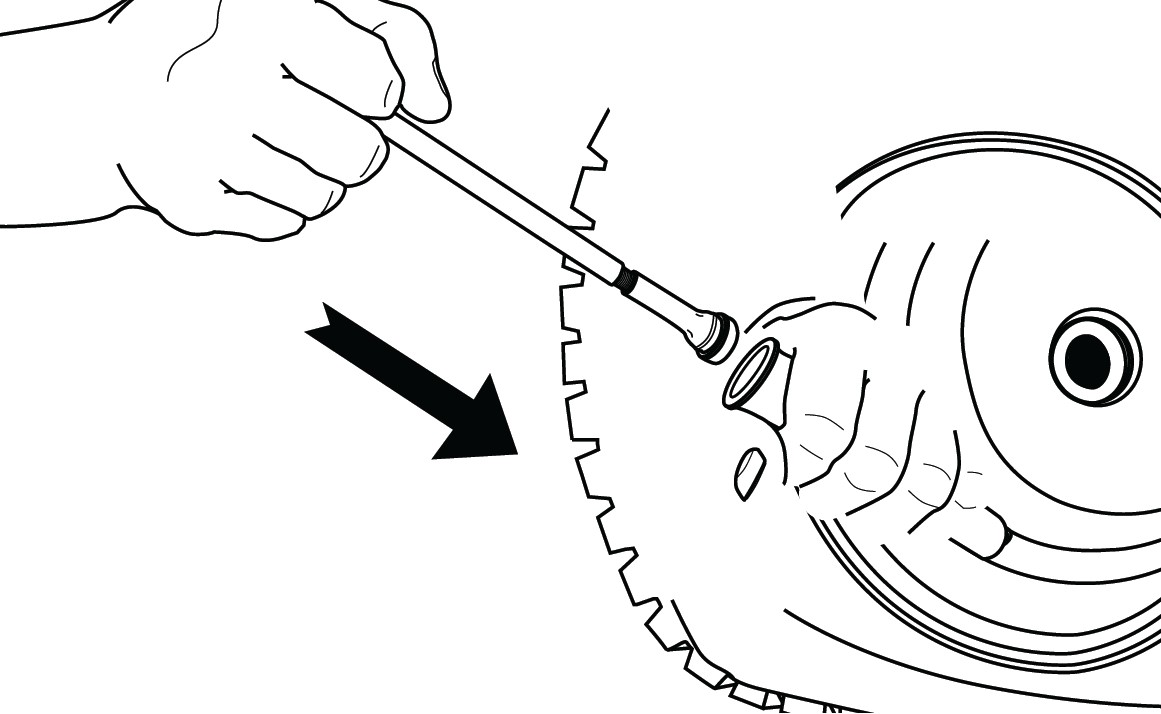

5. Push plunger rod/valve stem assembly completely through insertion cone.

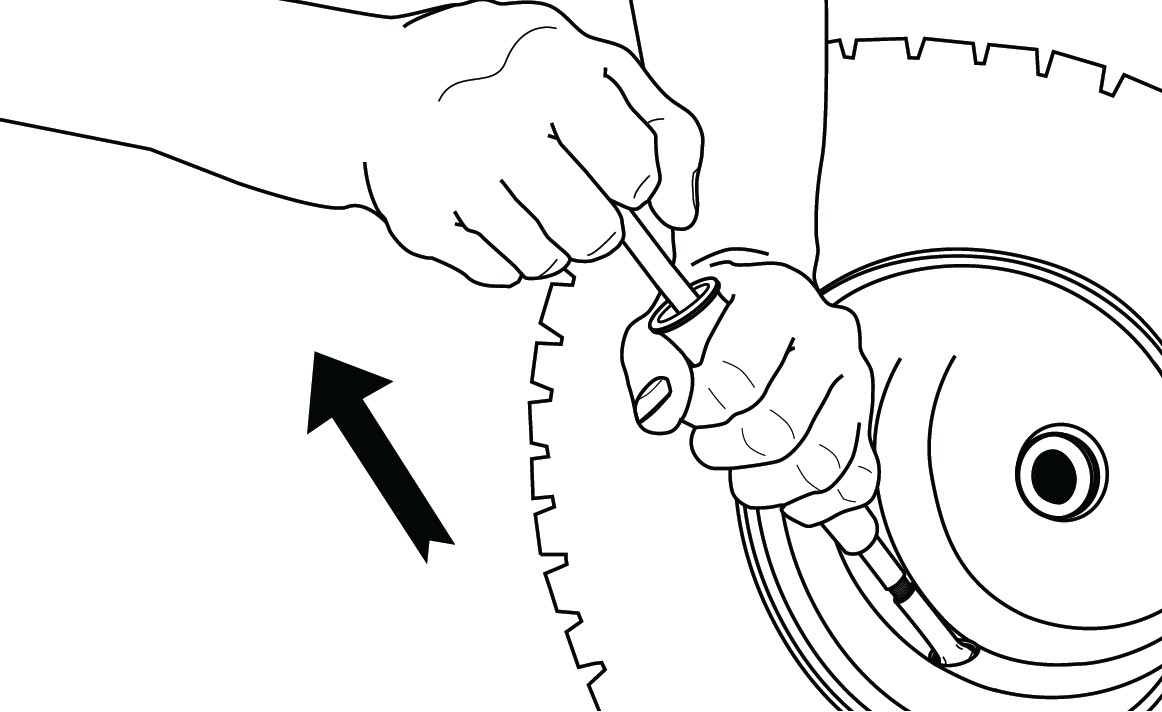

6. Pull back to seat valve stem and un-thread.






















  • For use with 453 valve stems only.
  • Not to be used with 5/8” valve stems.
  • Not to be used on tires TPMS-Tire pressure mounting system.
  • Valve stems not included.
