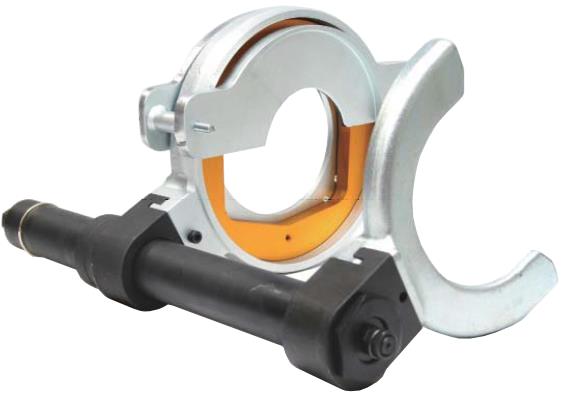

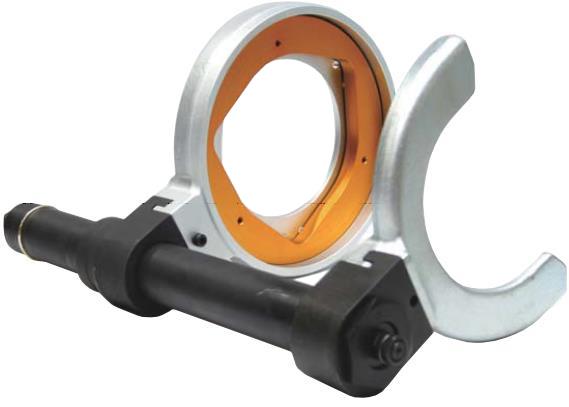

Tensioning Accessory Jaw Set

Spring Compressor Tool
KA-7309K-15
KA-7309K-15

Model

KA-7309K-15

Specification:

  • Available for KA-7309K, KA-7309KA-AIR, KA-7309KA, KA-7309K-AIR

Description

  • Specially designed for Mercedes-Benz W204, X204 and W212 shock absorbers with fewer spring coils.

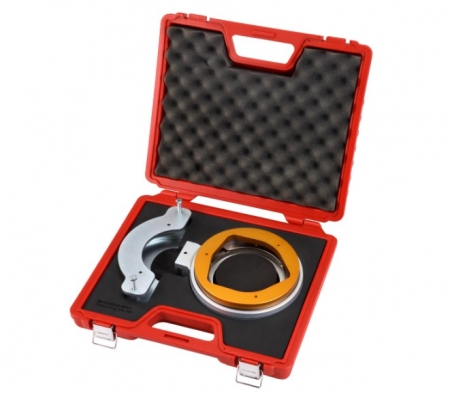

  • Set includes an adapter housing and 3 adapters, fitting Mercedes-Benz special shock absorber covers.

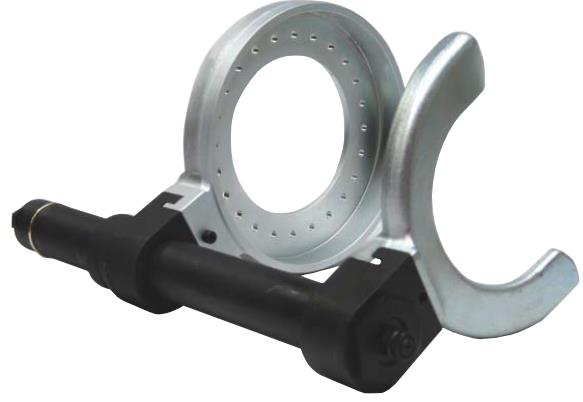

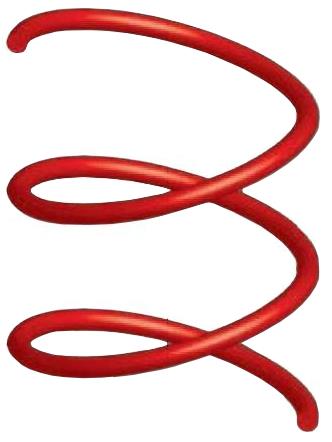

General spring

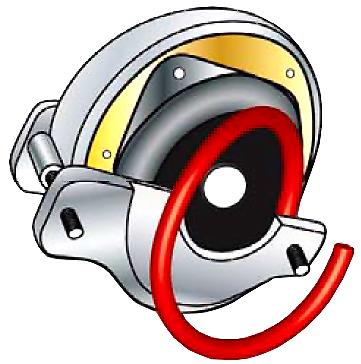

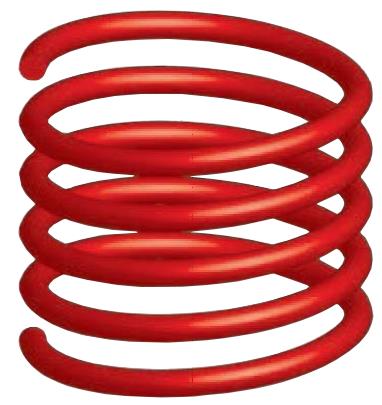

Mercedes-Benz springs (W204, X204 and W212)


W204 (C-class)

X204 (GLK-class)

W212 (E-class)

Installation:
Step 1
Connect the adapter housing to the main body. (The main body and the lower jaw are not included in this set)
Step 2
Choose a suitable adapter and then insert the adapter into the adapter housing
Step 3
Use the fasteners and washer to connect the paired jaws for shock absorber services.
