Universal Tool For Silent Blocks and Joint Bearings.

Puller, Bearing Tool
KA-5349
KA-5349

Model

KA-5349

Specification:

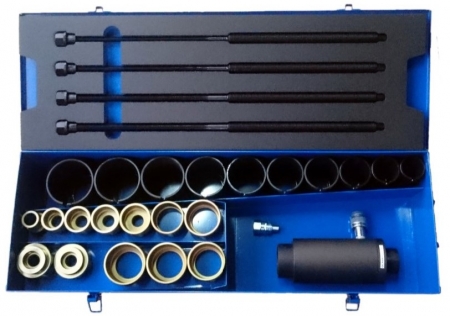

  • 2 adapters
  • 570mm long M10 spindle with nut, 570mm long M12 spindle with nut,
  • 570mm long M14 spindle with nut, 570mm long M16 spindle with nut,
  • Press sleeve short: Ø30mm, Ø40mm, Ø46mm, Ø50mm, Ø54mm, Ø58mm, Ø64mm, Ø66mm, Ø70mm , Ø72mm
  • Press sleeve long: Ø44mm, Ø50mm, Ø56mm, Ø62mm, Ø66mm, Ø70mm, Ø74mm, Ø78mm, Ø82mm, Ø84mm

Description

  • Enables safe and quick work in replacing silent blocks and joint bearings with Ø 30-75mm.
  • Very tight-fitting or corroded parts can be easily removed by the 17t hydraulic cylinder.
  • Can be used to replace the ball joints with an additional press frame.
  • Vital and basic tool set for chassis repair.

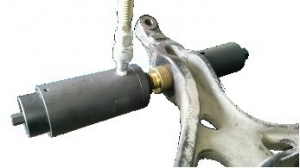

KA-5349(示意圖)
