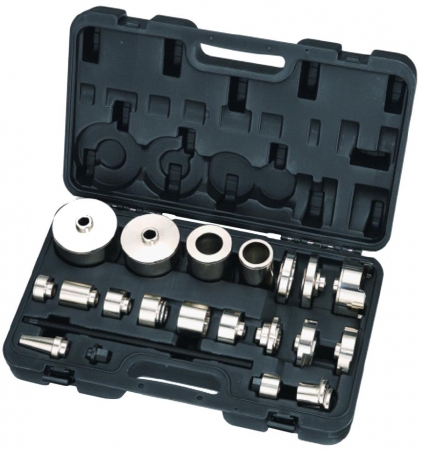

| KA-5296 Pulling device for Mercedes Benz W211, mechanical | ||
|---|---|---|

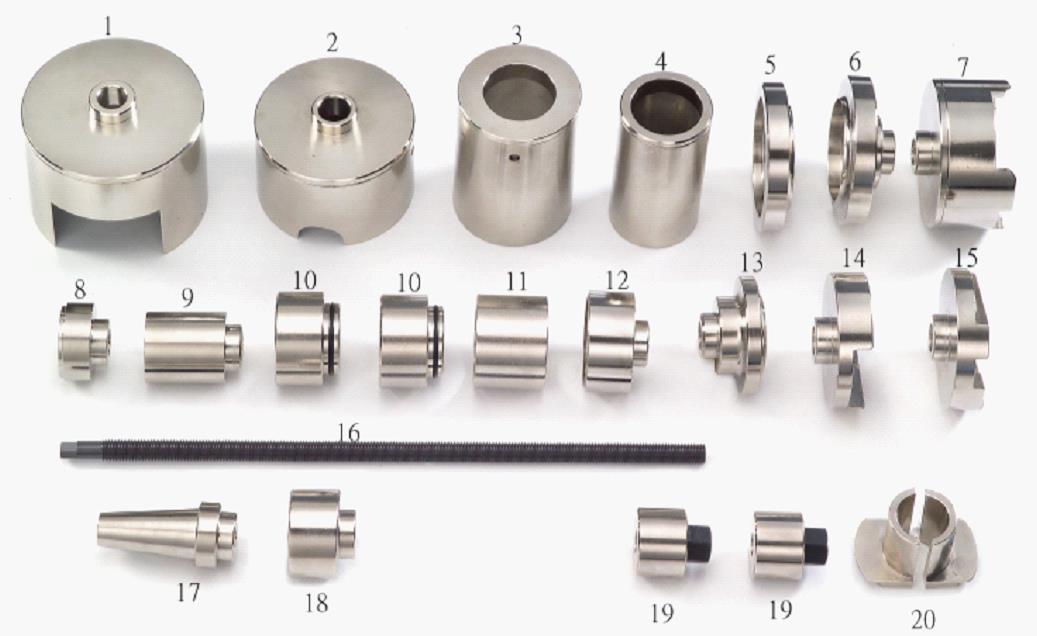

| Part No. | Description | Qty |
| KA-5296-10 | Retainer adaptor for mechanical spindle | 2 |
| KA-5296-16 | Pulling spindle M14 | 1 |
| KA-5296-19 | Axle-bearing | 2 |
| KA-5296A | KA-5296A set of rubber for bearing sleeve Ø75.5 / Ø90 (W211) | 1 |
| KA-5296B | KA-5296B set of sleeves for differential bearing Ø66 (W211) | 1 |
| KA-5296C | KA-5296C set of sleeves for suspension arm / wishbone Ø51 (W211) | 1 |
| KA-5296A set of rubber for bearing sleeve Ø75.5 / Ø90 (W211) | ||
|---|---|---|
| Part No. | Description | Q’ty |
| KA-5296-1 | Support sleeve | 1 |
| KA-5296-2 | Support sleeve | 1 |
| KA-5296-7 | Press piece | 1 |
| KA-5296-9 | Extension for adaptor 50mm with O-ring | 1 |
| KA-5296-13 | Support sleeve | 1 |
| KA-5296-14 | Press piece | 1 |
| KA-5296-15 | Press piece | 1 |
| KA-5296-17 | Mandrel | 1 |
| KA-5296-18 | Press piece | 1 |
| KA-5296-20 | Tension segment | 1 |
| KA-5296B set of sleeves for differential bearing Ø66 (W211) | ||
|---|---|---|
| Part No. | Description | Q’ty |
| KA-5296-3 | Press / Support Sleeve long Ø80 | 1 |
| KA-5296-5 | Support ring | 1 |
| KA-5296-6 | Support sleeve | 1 |
| KA-5296-12 | Press Sleeve | 1 |
| KA-5296C set of sleeves for suspension arm / wishbone Ø51 (W211) | ||
|---|---|---|
| Part No. | Description | Q’ty |
| KA-5296-4 | Press / Support sleeve long Ø60 | 1 |
| KA-5296-8 | Press piece | 1 |
| KA-5296-9 | Extension for adaptor 50mm with O-ring | 1 |
| KA-5296-11 | Press / Support sleeve short Ø60 | 1 |
