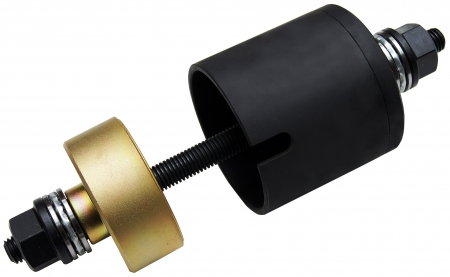

Front Lower Control Arm Bushing Tool for Honda and Acura

Puller, Bearing Tool
KA-7276B
KA-7276B

Model

KA-7276B

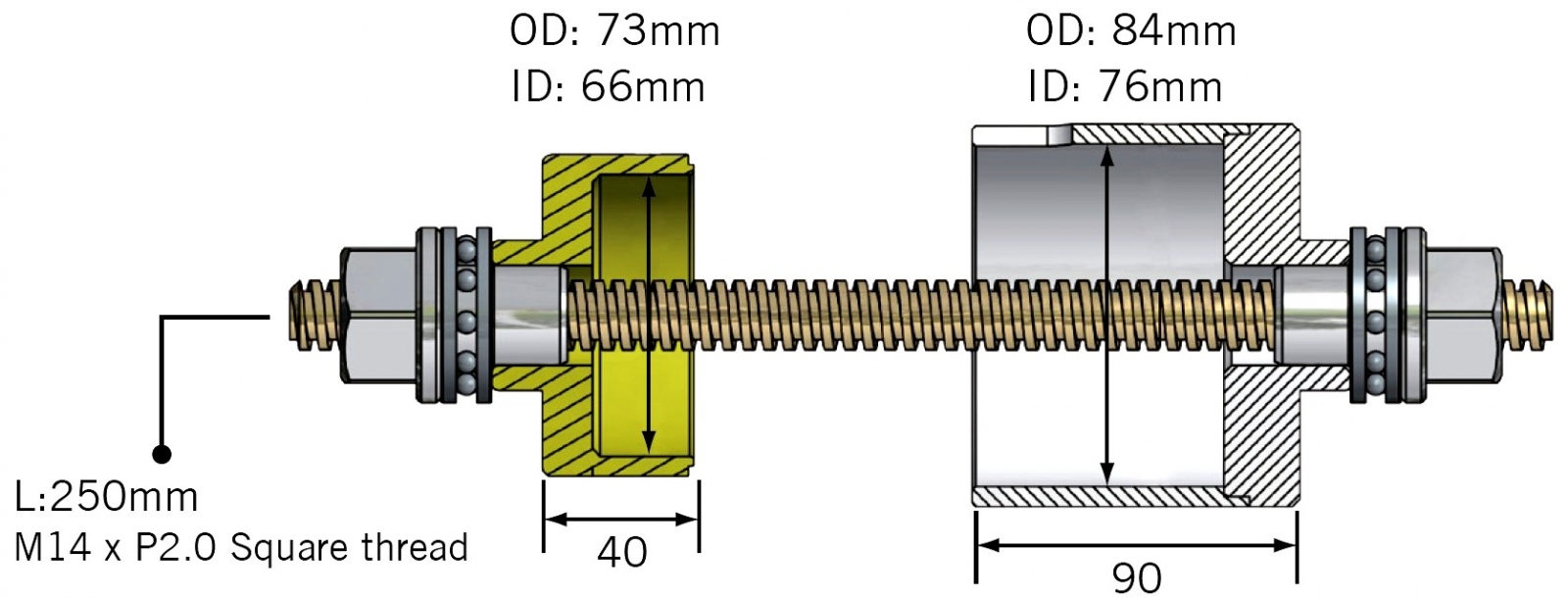

Specification:

  • Black socket, ID: 76mm; OD: 84mm
  • Golden Socket, ID: 66mm; OD: 73mm

Description

  • Designed to remove and replace the large hydro-bushings on the front-axle lower control arms for nearly all Honda vehicles.
  • Using on car, saving valuable time and effort and avoiding potential damage to other suspension joints & components.
Application:
Acura TL 2004-2008
Honda Accord 2003-2012, Civic 2009-
Odyssey 2005- 2010







Spindle
Size M14 x P2.0
Material Steel-SCM440
Hardness 35 – 38
Surface finish Phosphate(Black)
Nut with bearings
Size M14 x P2.0
Hex 27mm
Material Steel-SCM440
Hardness 43 – 41
Surface finish Phosphate(Black)
Black socket with window
Material Steel-S45C
Hardness 68-72
Surface finish Phosphate(Black)
 Check balanced installation work
Golden socket
Material S45C
Hardness 38 - 43
Surface finish Golden Zinc

Instructions:
  • Connect the spindle, golden socket, bush object and the black socket.
  • Use open two wrenches 27mm to remove the damaged bush.


Install:
  • Connect the spindle, golden socket, new bush and the black socket.
  • Use open two wrenches 27mm to install the damaged bush.
