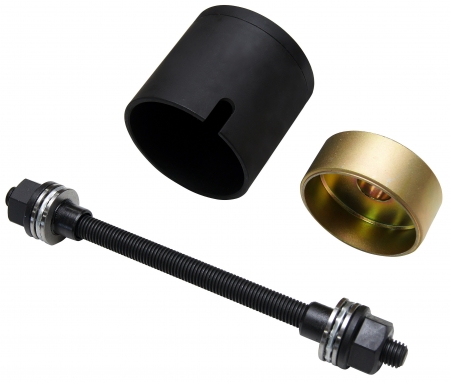

Front Lower Control Arm Bushing Tool for Honda and Acura

Puller, Bearing Tool
KA-7276A
KA-7276A

Model

KA-7276A

Specification:

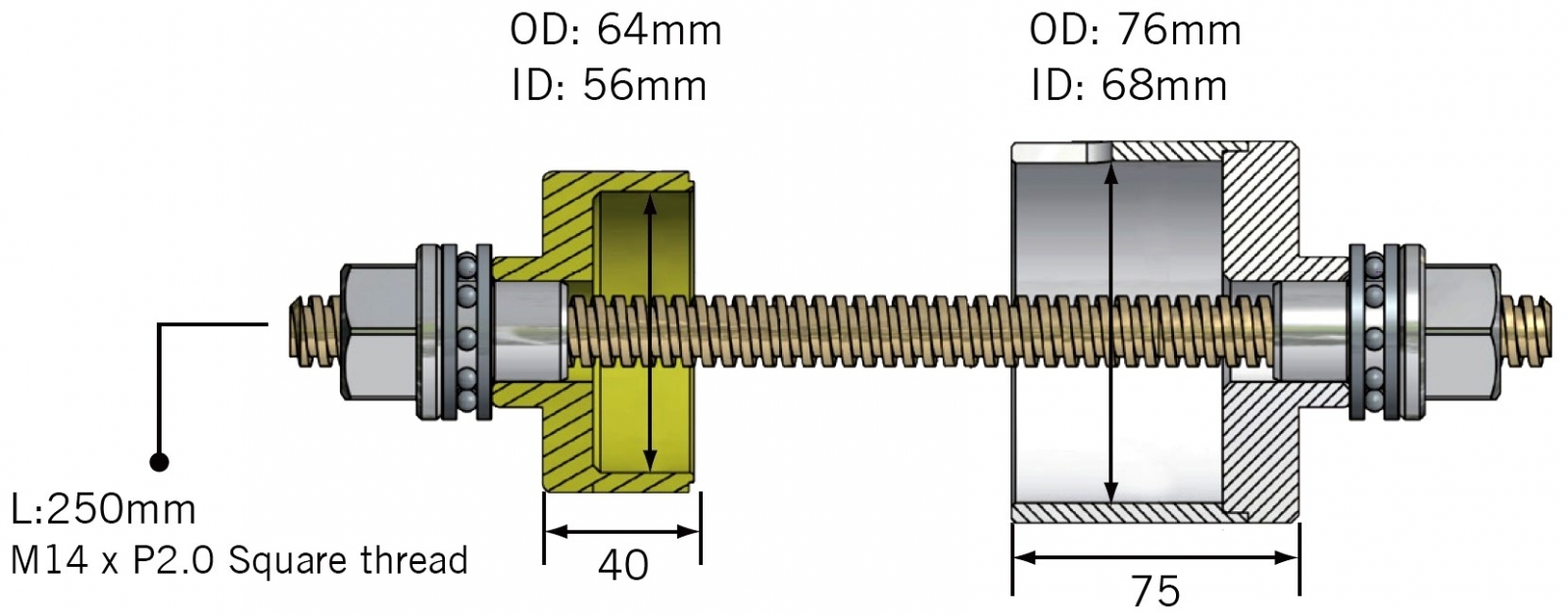

  • Black socket, ID: 68mm; OD: 76mm
  • Golden Socket, ID: 56mm; OD: 64mm

Description

  • Designed to remove and replace the large hydro-bushings on the front-axle lower control arms for nearly all Honda vehicles.
  • Using on car, saving valuable time and effort and avoiding potential damage to other suspension joints & components.
Application:
Acura EL 2001-2005, MDX 2001-2006,
RSX: 2002-2006, TSX 2004-2008,
TL 2001-2003
Honda Accord 2003-2007, Civic 2000-2008,
CRV 2001-2006, Element 2004-2011,
Odyssey 1999-2004, Pilot 2001-2007

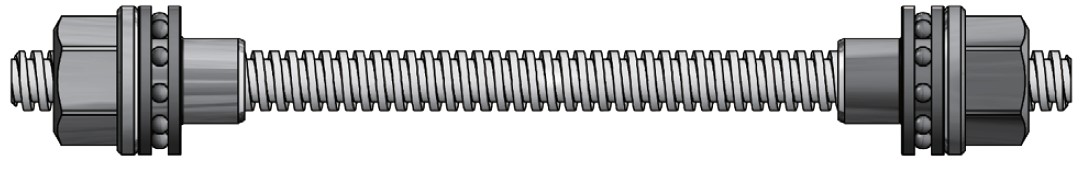

Spindle
Size M14 x P2.0
Material Steel-SCM440
Hardness 35 – 38
Surface finish Phosphate(Black)
Nut with bearings
Size M14 x P2.0
Hex 27mm
Material Steel-SCM440
Hardness 43 – 41
Surface finish Phosphate(Black)

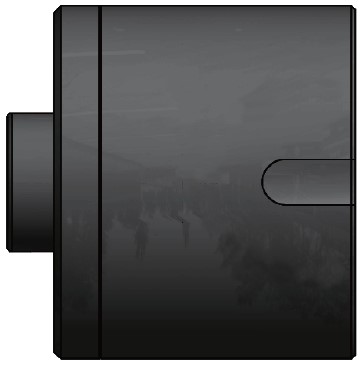

Black socket with window
Material Steel-S45C
Hardness 68-72
Surface finish Phosphate(Black)
 Check balanced installation work

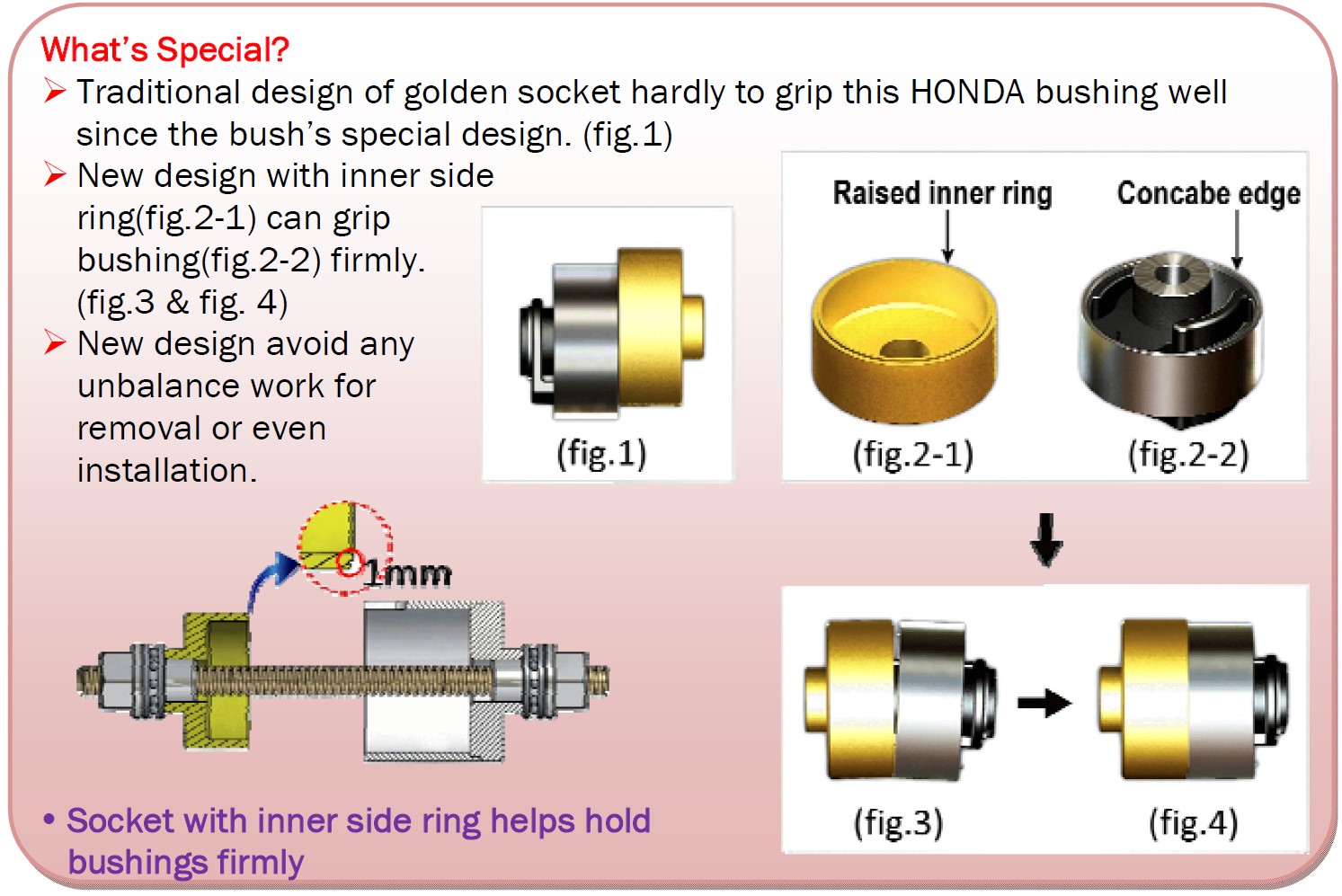

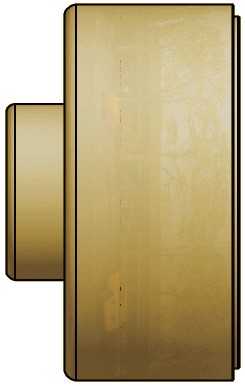

Golden socket
Material S45C
Hardness 38 - 43
Surface finish Golden Zinc

 Instructions:
  • Connect the spindle, golden socket, bush object and the black socket.

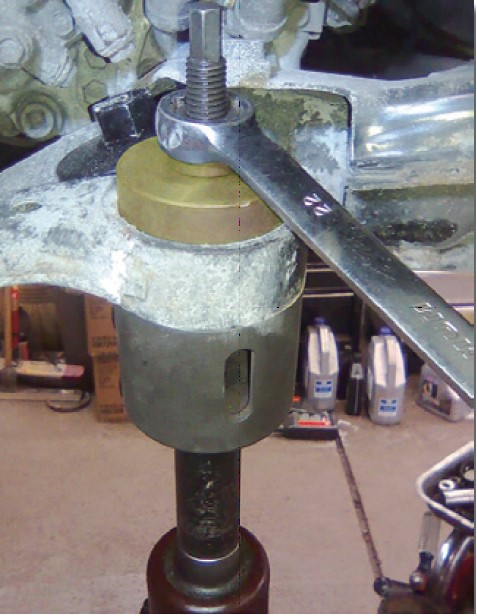

  • Use open two wrenches 27mm to remove the damaged bush.

Install:

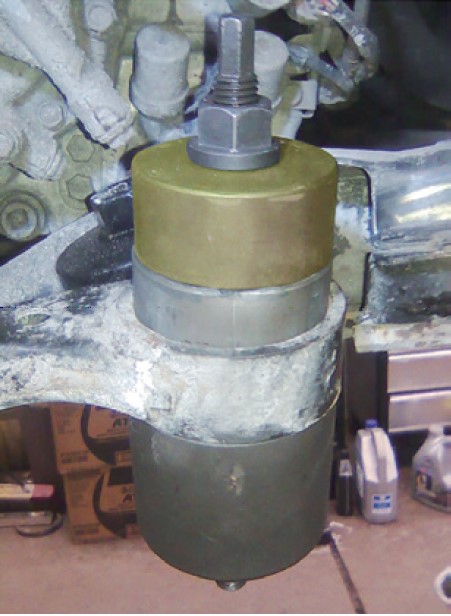

  • Connect the spindle, golden socket, new bush and the black socket.
  • Use open two wrenches 27mm to install the damaged bush.
