Inner Bearing Race Puller Set

KA-2161
KA-2161

Model

KA-2161

ADD INQUIRY

Description

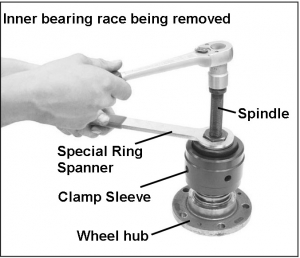

  • Removal of the hub leaves the inner race on the hub. The race is impossible to remove without the correct tool.
  • KA-2161 gives quick and easy removal of inner bearing races bearing of diameters from 44mm ~ 72mm within minutes of time without risk of damage or injury.
  • For VW-Audi, BMW, Ford, Fiat, Mercedes, Opel, Renault, Seat Skoda, Porsche, Volvo.
KA-2161(示意圖2)

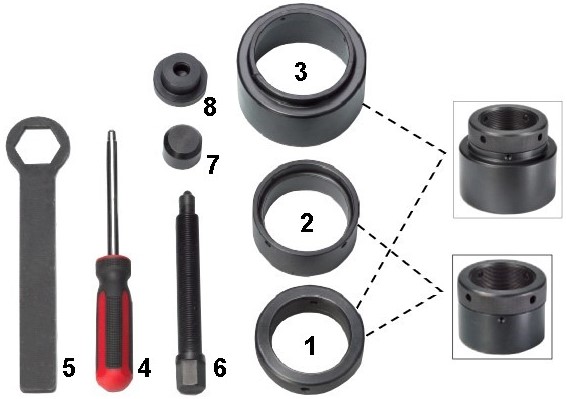

Content:
Puller Tool Body
No. Description
1 Chuck
2 Chuck
3 Chuck
4 Handle
5 Special Ring Spanner 36mm
6 Spindle with pin (M20 x 1.5)
7 Pressure Piece for Hubs
8 Pressure Piece for Hubs

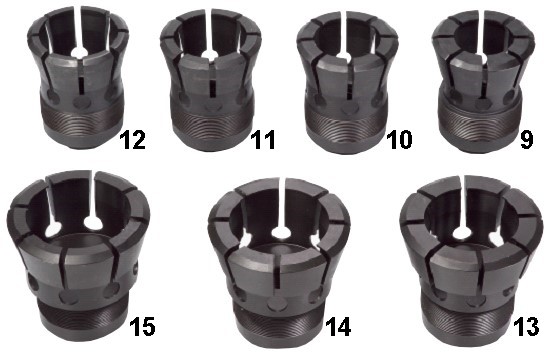

Inner bearing Race Pull Set
No. Collet Chuck Size Application
9 Ø44 – Ø48mm Lancia Cappa, Renault
10 Ø48 – Ø52mm Ford Transit, T330
11 Ø52 – Ø56mm VW-Audi, Seat, Skoda
12 Ø56 – Ø60mm Mercedes W168
13 Ø60 – Ø64mm Mercedes W201, W202, W210, W214, BMW, Peugot
14 Ø64 – Ø68mm Mercedes W163, W140, W169, W211, W220, W245, W124T
15 Ø68 –Ø72mm VW Touareg, Porsche Cayenne
