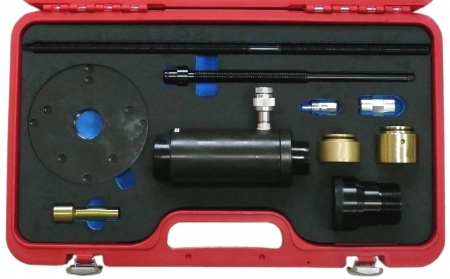

Hydraulic Cylinder Operation Repair Tools

KA-2097K
KA-2097K

Model

KA-2097K

ADD INQUIRY

Description

  • This tool set is designed for hydraulic operation.
  • A 18t hydraulic cylinder(KA-2097-1)
  • New designed of the disk (KA-2097-7) will be able to operate KA-2058K & KA-2058EK series by hydraulic.
  • Two specially designed adapter (KA-2097-8, KA-2097-4), accurate and safe guidance of the hydraulic cylinder and the clamping nut fixed on the wheel hub bearing tool set the center.
  • A kit designed to demolition of the universal joint drive shaft / drive shaft (KA-2097-6 pressure piece, KA-2097-5 adapter, KA-2097-3 pressure spindle, KA-2097-2 pull spindle)
For Drive Shafts, Wheel Hubs, Bearings, etc
Parts No. Description
KA-2097-1 A 18 t hydraulic cylinder
KA-2097-1A Coupling hose side 3/8” NPT
KA-2097-2 Pull spindle, M20xP2.5, Length:570mm
KA-2097-3 Pressure spindle, M20xP2.5, Length:350mm, O-ring
KA-2097-4 Adaptor for hydraulic cylinder, O-ring
KA-2097-5 Adapter 2-1/4” -14UNS to 2-1/4”-14UNS
KA-2097-6 Pressure Piece
KA-2097-7
PAT.		 Adapter plate,
PCD–Ø100mm & 152mm side for 572-1 & 5178-1
PCS– Ø120mm & side for 585-1
KA-2097-8 Double headed nut Ø29mm & 29.9mm
KA-2097-9 Retainer adaptor for KA-2097-8  Ø29.9mm side

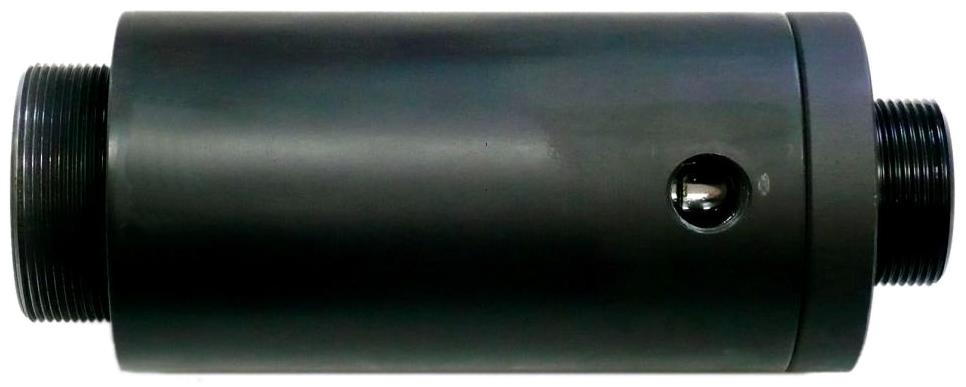

KA-2097-1  Hydraulic cylinder 18T

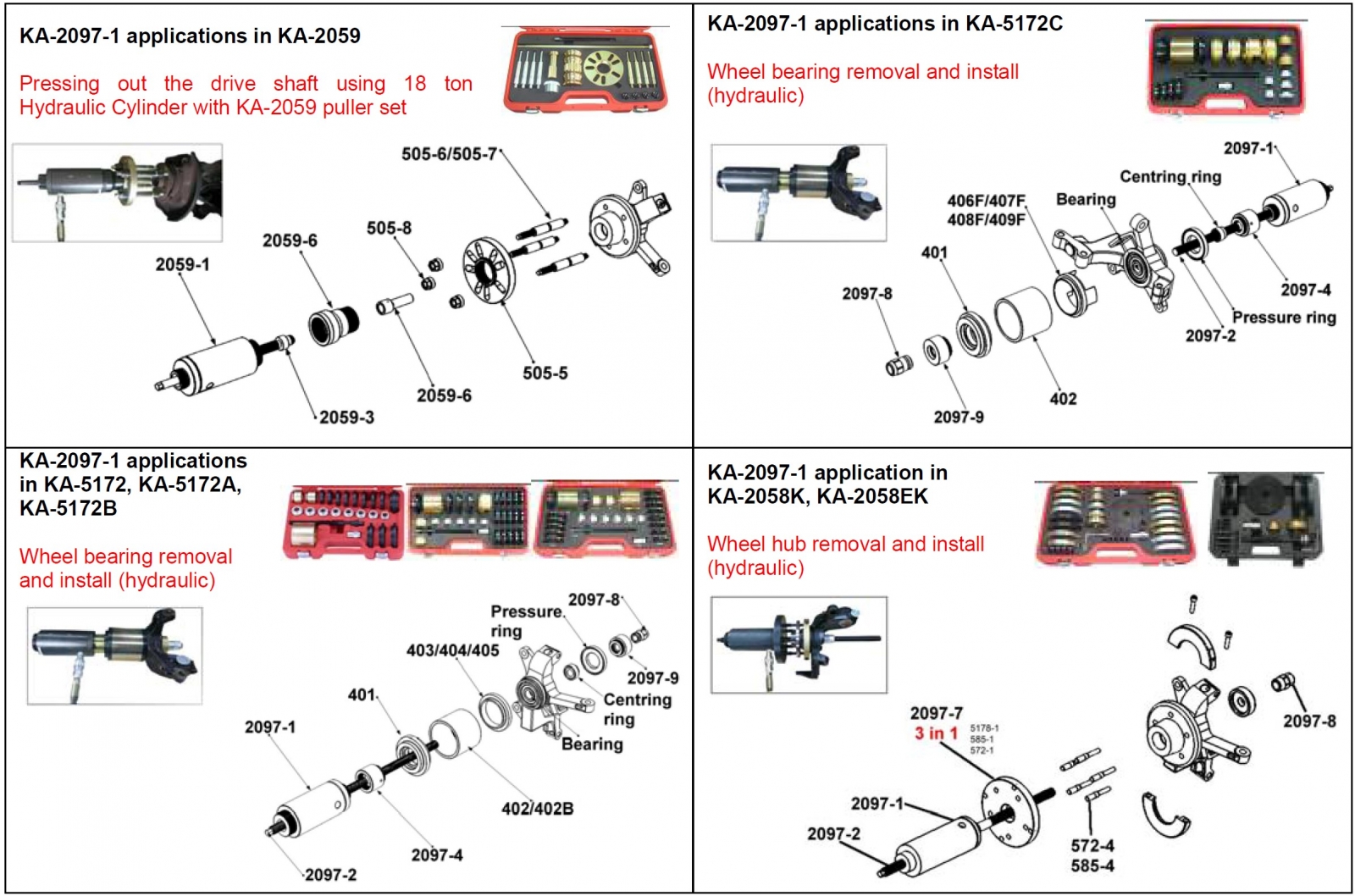

Applications:
This tool can be in conjunction with other repair tool to use (eg, KA-5172, KA-5172A, KA-5172B, KA-5172C, KA-2059, KA-2058K, KA-2058EK series), will be able to remove and replace the drive shaft, wheel hubs and wheel hub bearings…


 		 Technical Data:
Maximum admissible force: 18 t
Maximum stroke: 45mm
Cylinder outer diameter: 80mm
Cylinder overall length: 202mm
Cylinder weight: 5.1kg
Hydraulic fluid connection thread: 3/8”NPT -18
Pressure side of retaining thread: 2-1/4” -14 UNS
Pulling side of retaining thread: M42 x P2
Thread in tubular piston: M20 x P2.5
