Drive Shaft Insertion Tool

KA-2096
KA-2096

Model

KA-2096

ADD INQUIRY

Description

  • These vehicles have strict tolerances between the drive shaft splines and the wheel hub, we must use special tools like KA-2096 for assembly work.

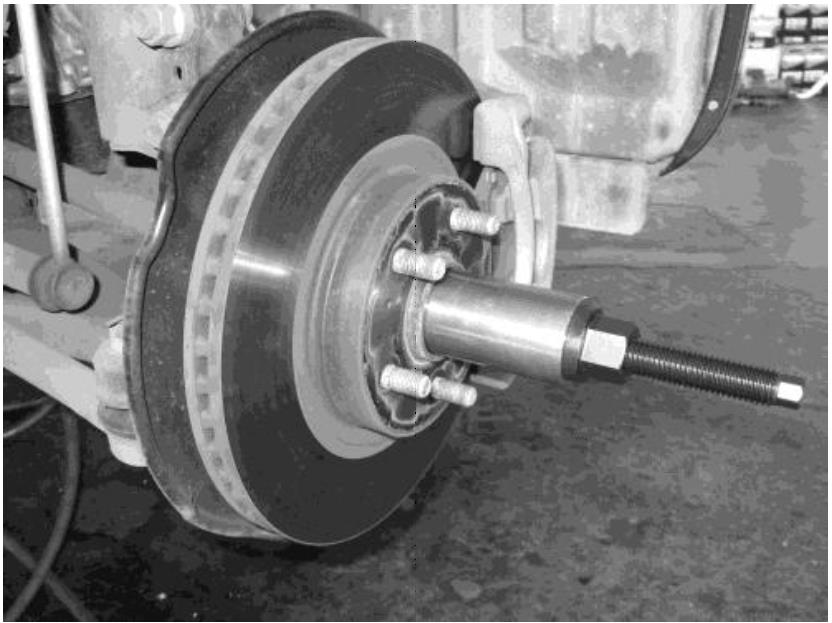

  • This insertion tool can be simple and quickly put the drive shaft fitted into the wheel hub.
  • With wide application in various specifications for drive shaft.
  • Mainly used for VW-Audi (Touareg etc.), Mercedes, BMW, Porsche (Cayenne etc.), Peugeot, Renault, Opel/Vauxhall, etc.

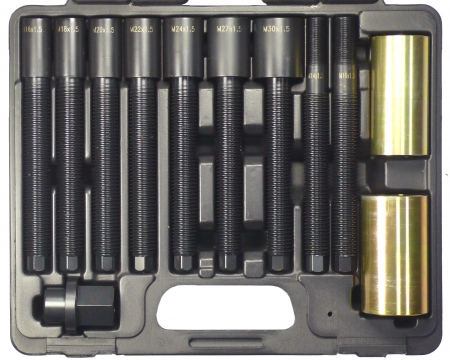

Contents:
1pc – shoulder nut
2pc – housing: ØOD39 x ØID29mm, ØOD46 x ØID36mm
7pc – Inner thread: M16 x 1.5, M18 x 1.5, M20 x 1.5, M22 x 1.5, M24 x 15.5, M27 x 1.5, M30 x 1.5
2pc – outer thread: M14 x 1.5, M16 x 1.5
