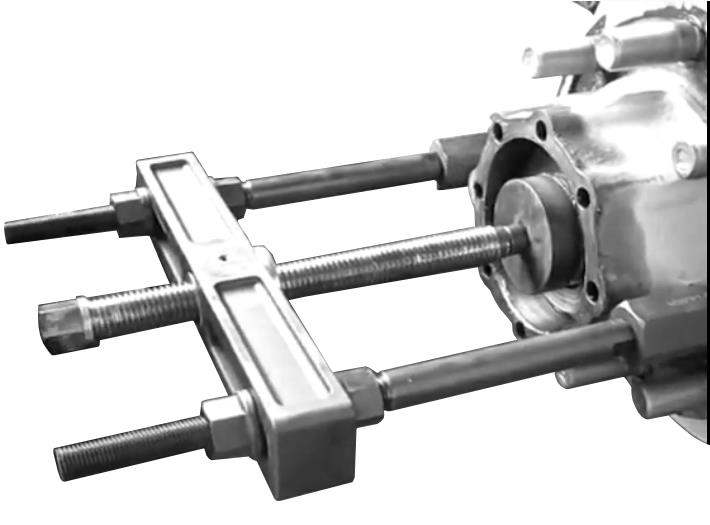

Universal Wheel HUB Extractor

KA-2088
KA-2088

Model

KA-2088

ADD INQUIRY

Description

  • Universal wheel HUB extractor.
  • Variable for bolt diameter up to 300mm.
  • Universal for bolts up to max Ø 22mm.
  • Application range: General Truck Repair Tool

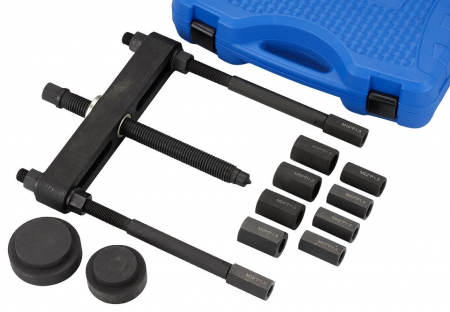

Contents:
Thread Adaptor Specification:
KA-2088-01 M18 x P1.5 x 65mm/L — 2pc
KA-2088-02 M20 x P1.5 x 65mm/L — 2pc
KA-2088-03 M22 x P1.5 x 65mm/L — 2pc
KA-2088-04 M24 x P1.5 x 65mm/L — 2pc
KA-2088-05 M30 x P1.5 x 65mm/L — 2pc
Pressure Plate
KA-2088-06 Ø 95mm / 65mm x 30mm/H — small x 1pc
KA-2088-07 Ø 110mm / 85mm x 30mm/H — large x 1pc
