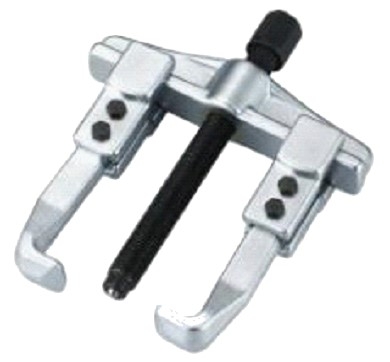

2-Arm Puller

KA-7620G (2020)
KA-7620G (2020)

Model

KA-7620B / KA-7620C / KA-7620D / KA-7620E / KA-7620F / KA-7620G / KA-7620H / KA-7620I

ADD INQUIRY

Description

  • Applies even pressure when remove gears, pulleys and flywheels from shaft without damage.
  • Sliding-arms puller provides constantly parallel claws.
  • Made of CRV Steel.

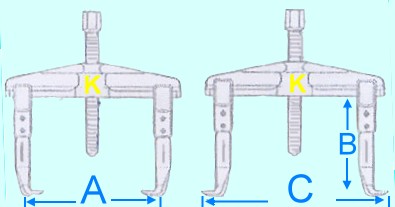

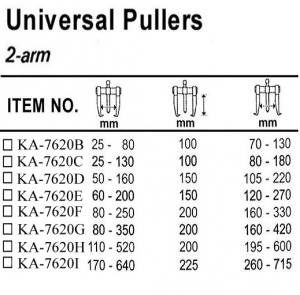

KA-7620GB-I SPECIFICATION
 ITEM NO A
min. - max		 B mm C
min. - max		 Max. Torque
NM		 Max  Capacity Claw  Size
ton kn a b c d
      -- -- -- -- -- -- -- --
KA-7620B 25-80 100 70-130 80 80 45 3 13 25 20
KA-7620C 25-130 100 80-180 80 80 45 3 13 25 20
KA-7620D 50-160 150 105-220 150 150 65 4 16 35 25
KA-7620E 60-200 150 120-270 150 150 65 4 16 35 25
KA-7620F 80-250 200 160-330 320 320 110 5 25 54 35
KA-7620G 80-350 200 160-420 320 320 110 5 25 54 35
KA-7620H 110-520 200 195-600 360 360 130 5 25 54 35
KA-7620I 170-640 225 260-715 400 400 180 10 33 55 50
