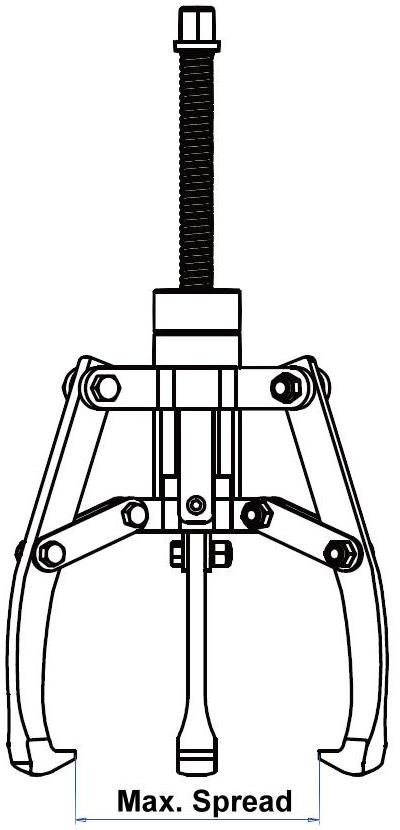

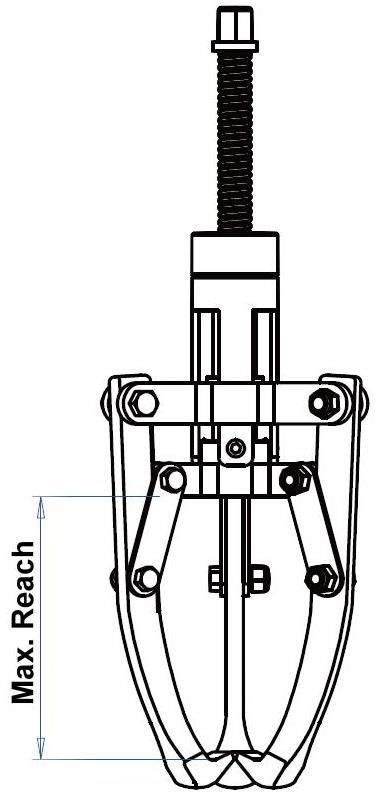

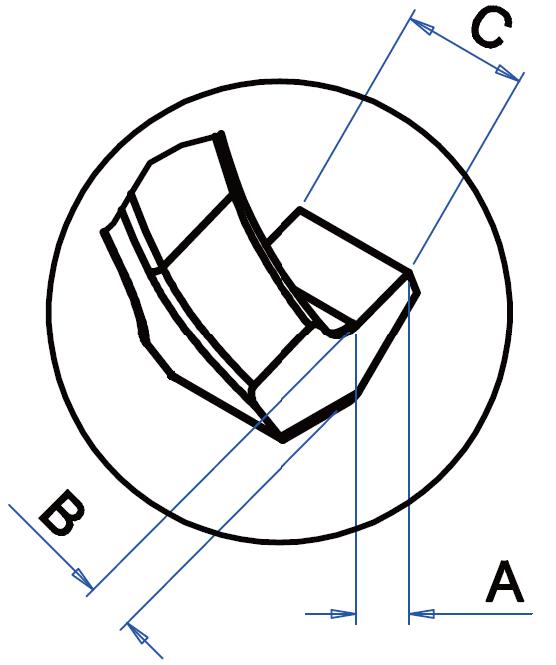

| Model No. | Capacity | Max Reach (mm) | Max Spread (mm) | Shaft Diameter | Jaw Tip (mm) | Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| KA-7618 | 2 TON | 80 | 120 | Ø5/8”x11T | 8 | 6 | 15 | 0.9 |
| KA-7620 | 5 TON | 160 | 250 | Ø3/4”x10T | 11 | 10 | 25 | 3.1 |
| KA-7621A | 10 TON | 230 | 380 | Ø7/8”x14T | 14 | 10 | 29 | 6.7 |
.jpg)
.jpg)
.jpg)

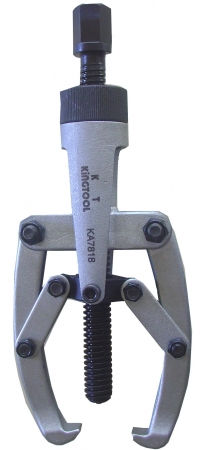

SIMPLE AND EASY PULLING JOB
Equipped with Screw-Operated Jaws, the unique “patent-pending” Easy Pullers are dedicated for the absolute user-friendly and safe dismounting job in the market today. The most simple and efficient design, Screw-Operated jaws enable the users to position the puller on the part quickly and correctly even by one hand operating as well.
USER-CONVENIENTLY:
- Absolutely user-conveniently design of screw-operated and self-positioning jaws, locking on the part with just one hand operating only.
- 3 fixed jaws and/or 2 fixed jaws for easily positioning and centring without miss.
- Available in three sizes (3-jaws and 2-jaws type each) with a maximum pulling force of 2, 5 and 10 tons for user’s needs.
- Self-locking jaws eliminate the puller jaw slipping off under loading and/or parts dismounted after.
SAVING COST:
- Service life of puller is extended by the forged and durable parts.
- Self-positioning & centring prevent the damage to the shaft as well.
- Conveniently positioning, efficiently pulling save on labor and operating time.
