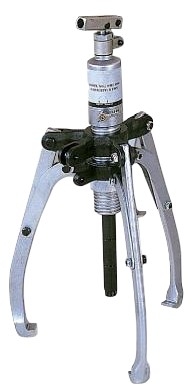

2/3 Way Hydraulic Easy Puller

KA-HPE-8
KA-HPE-8

Model

KA-HPE-4 / KA-HPE-6 / KA-HPE-8 / KA-HPE-10 / KA-HPE-20 / KA-HPE-25

ADD INQUIRY

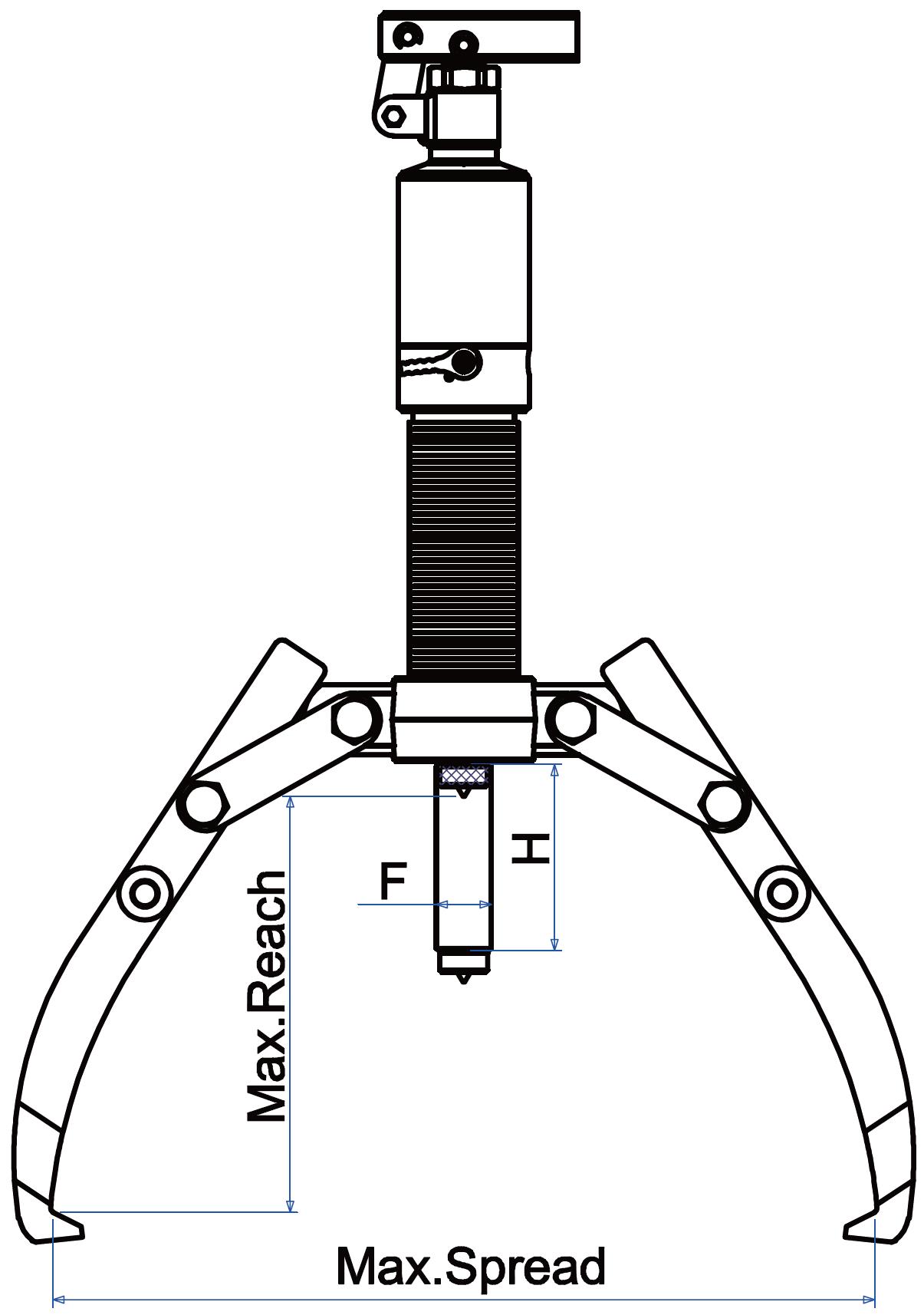

Item No. Max. Ton Reach
(Max. mm)		 Spread
(Max. mm)		 Stroke(mm) Jaw Tip (mm) Pump Tip (mm) Weight
(kg)

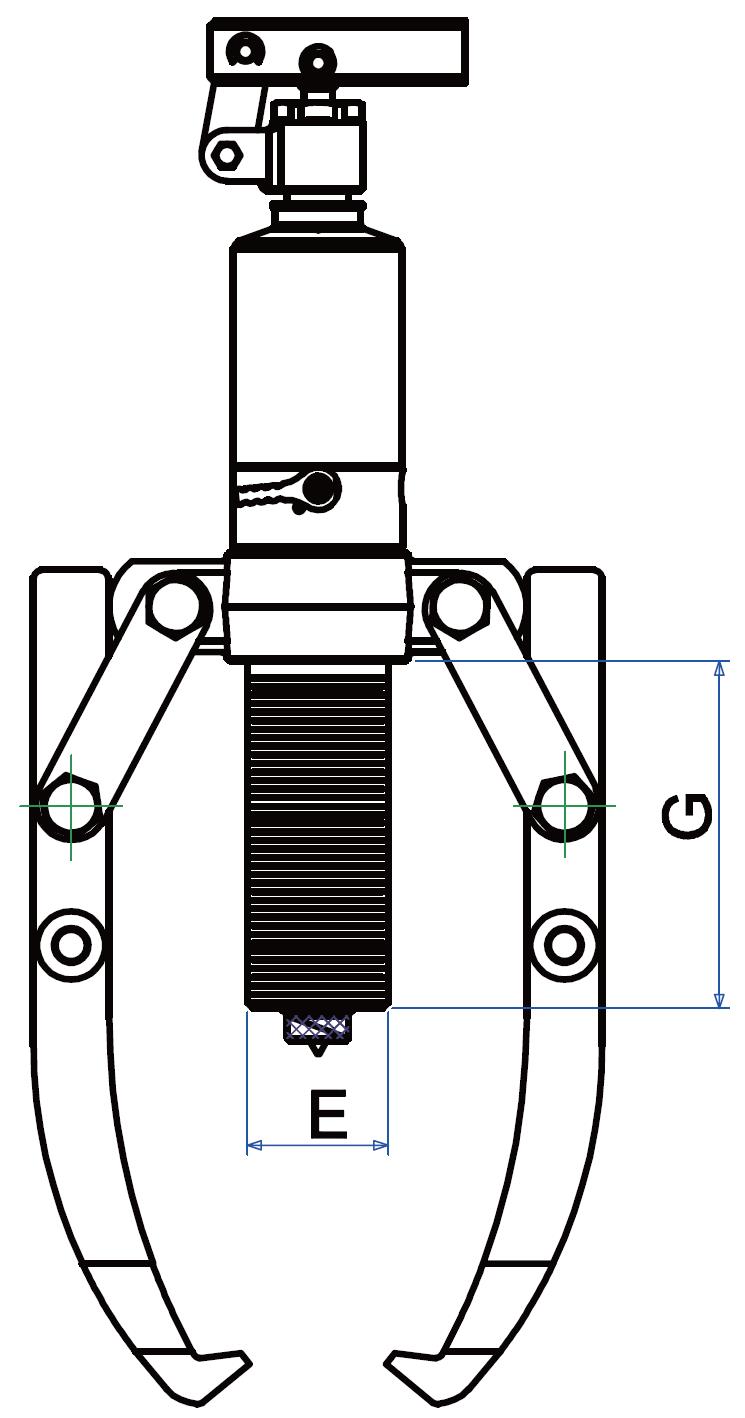

H A B C E F G
KA-HPE-4 4 Ton 190 315 60 13 10 22 42 22 40 8.0
KA-HPE-6 6 Ton 230 390 70 13 10 22 45 23 50 9.8
KA-HPE-8 8 Ton 280 460 85 13 13 27.5 50 25 70 11.7
KA-HPE-10 12 Ton 300 515 85 15 16.5 29 60 28 70 14.8
KA-HPE-20 20 Ton 325 520 111 20 27 33 80 40 62 25.7
KA-HPE-25 30 Ton 415 520 111 20 27 38 98 50 85 36.0
