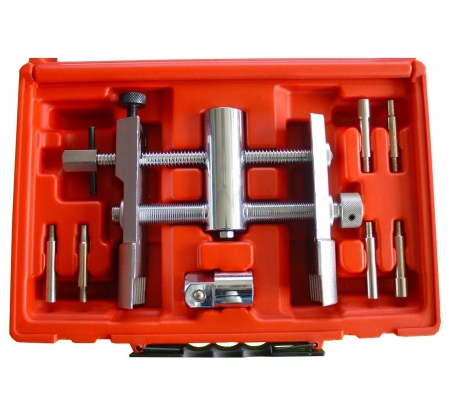

Adjustable Wheel Bearing Lock Nut Wrench

KA-4419K
KA-4419K

Model

KA-4419K

Specification:

  • 6pt lock nuts: 1.3/4” to 5.1/4”(49-135mm) across the flats
  • 8pt lock nuts: 1.3/4” to 5.5/8”(48-143mm) across the flats
  • Pin diamwtwrs: 1/4”(6mm), 5/16”(8mm), 3/8”(10mm).
ADD INQUIRY

Description

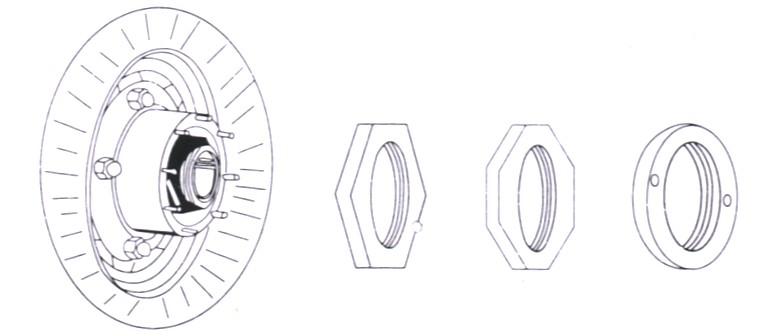

  • Adjustable jaws with locking feature to suit both hexagon & octagon wheel bearing lock nuts.
  • Includes three sets of pins to suit lock nuts with pin holes.
Please lubricate all threads before using.

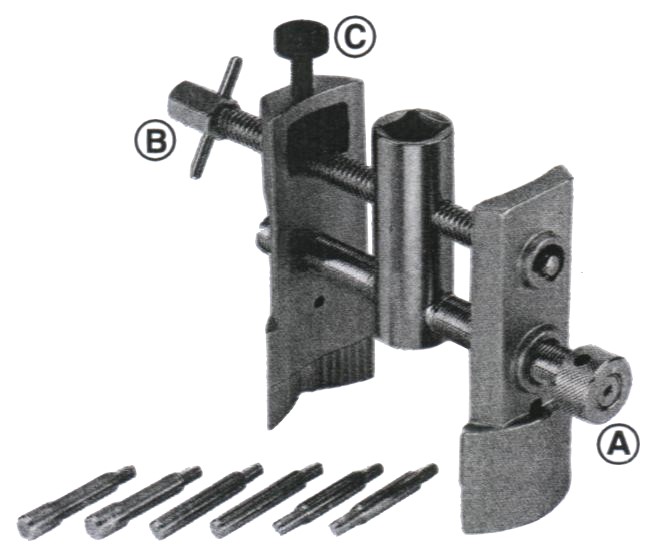

  1. First loosen the locking screw (C).
  2. Then adjust the jaws with adjusting screw (A) to the required size.
  3.  Once you have adjusted the jaws to the required size tighten locking screw (C), and then adjust forcing screw (B) until it is tight. The jaws are then locked into place and the tool is ready for use.
  4. Place wrench over the nut and use a power bar tool loosen or use a torque wrench for installing to manufactures specifications. (Note not to be used with impact wrenches.)
  5. Max. torque: 500F/LBS (69MKG)
  6. Capacity:
6PT Lock nuts: 1.3/4” to 5.1/4” (49-135mm) across the flats
8PT Lock nuts: 1.3/4” to 5.5/8” (49-143mm) across the flats
Pin diameters: 1/4”(6mm), 5/16”(8mm), 3/8”(10mm)
