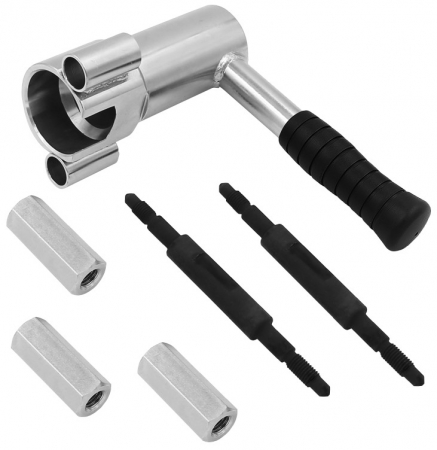

Volvo Ball Joint Press Tool

Ball Joint
KA-6599
KA-6599

Model

KA-6599

Specification:

  • M14 x 1.5, M12 x 1.75, M14 x 2.0

Description

  • Special designed for the lower control arm ball joint mounting and dismounting.
  • For cars with aluminum control arms and steel wishbones alike.
  • Suitable for: Volvo S60(2000-2009), S80(1998-2006), V70/XC70(1999-2007), XC90 (2002-2014)
  •  Remove the ball joint bolts.
  • Install the adapter on the ball joint.

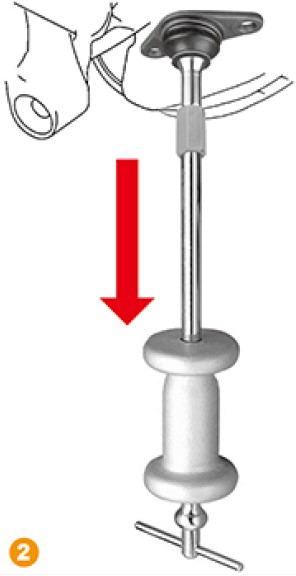

  • Tap loose the ball joint.

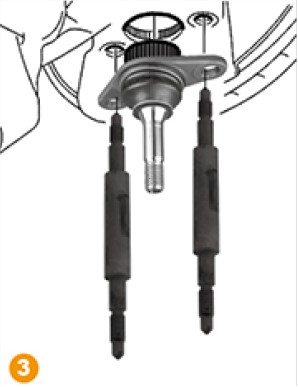

  • Install the new ball joint loosely using the guide bolts.
  • Press up the ball joint against the seat with press tool.

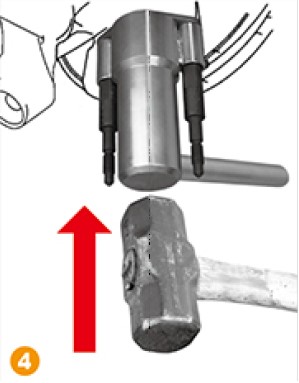

  • Drive in the ball joint with the hammer.
