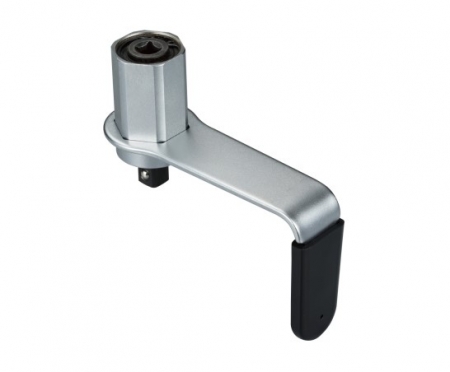

Mini Torque Multiplier

KA-5372
KA-5372

Model

KA-5373-02 / KA-5374-01 / KA-5375-01 / KA-5375-02

Specification:

  • Patented product.
  • Energy-saving tool designed for tire change.
  • Small-size, light weight, easy to carry & storage.
  • 3.4:1 torque multiplication.
  • Accuracy tolerance +/-5%.
  • The tool is adapted for tire change of car and van in automotive repair industry.
  • Supplied with the rubber-cover reaction bar for tire rim protection purpose.
ADD INQUIRY

Description

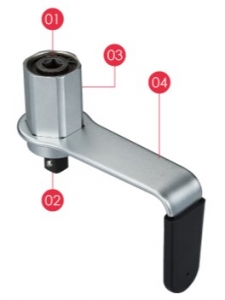

  • 01 Input Square (F): Cr-V alloy steel.
  • 02 Output Square(M): Cr-V alloy steel for better stability and reliability.
  • 03 Main body: Small and light weight ! Easy to operate. Patented mechanisim!! Made of CR-MO alloy steel.
  • 04 Handle: The movable reaction handle is great for different working place.
KA-5373-01 PARTS
Item No.
(Blister Pack)		 Item No.
(Blow Case)		 Range Ratio Input square Output Square Weight
Nm Ft-lb
KA-5373-02 KA-5373-02A 300 221 3.4:1 3/8” 3/8” 710
KA-5374-01 KA-5374-01A 450 332 3.4:1 3/8” 1/2” 710
KA-5375-01 KA-5375-01A 600 443 3.4:1 1/2” 1/2” 1100
KA-5375-02 KA-5375-02A 800 590 3.4:1 1/2” 3/4” 1100
KA-5375-03 KA-5375-03A 1200 885 3:4:1 1/2” 3/4” 1130
