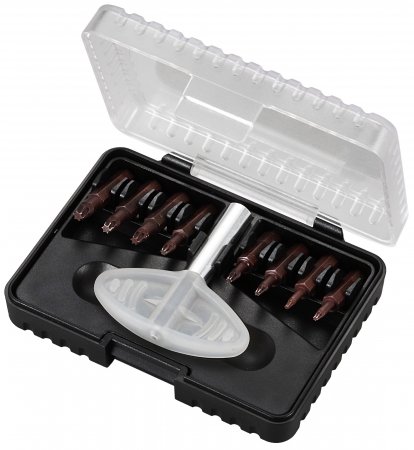

9pcs Torx Plus Extractor Set

KA-6987A
KA-6987A

Model

KA-6987A

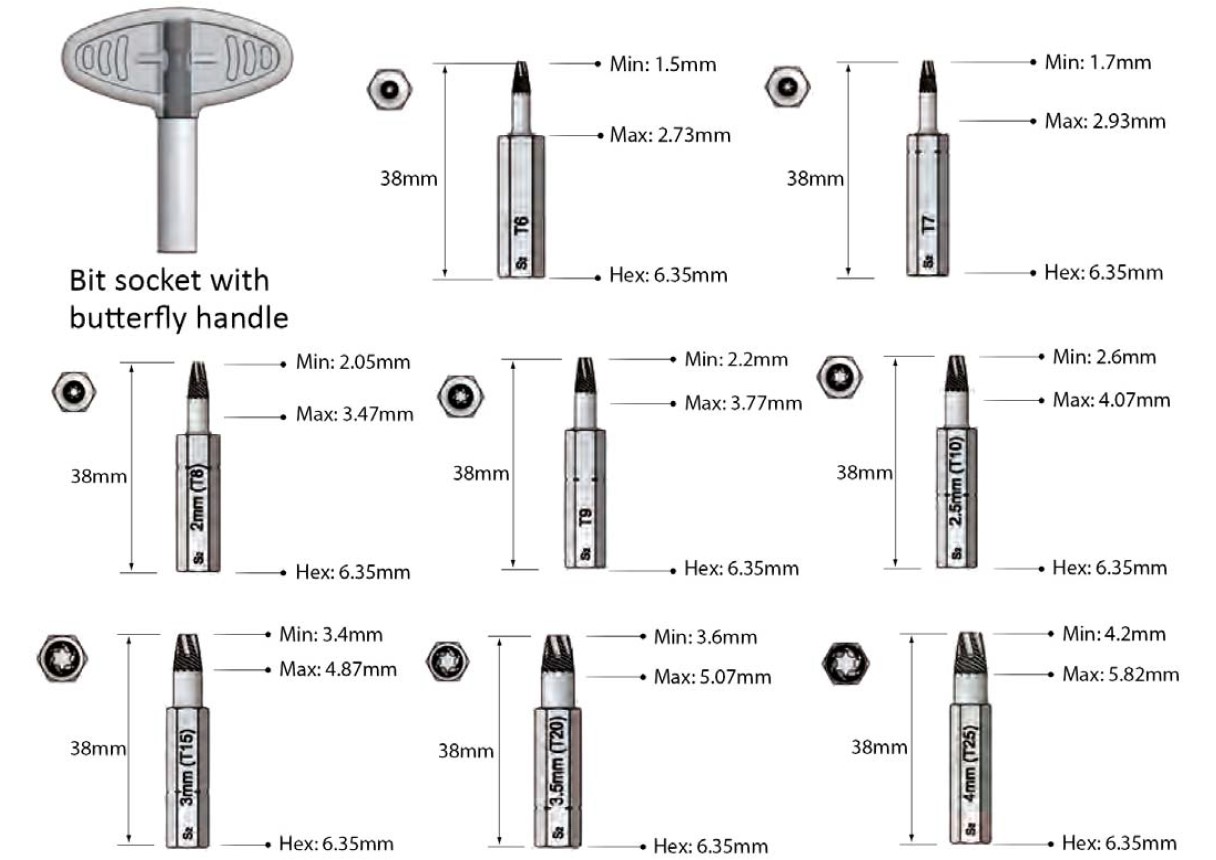

Specification:

  • Material: S2
  • Hardness: 53-55 degree
ADD INQUIRY

Description

  • Special design of torx plus head, twist body with teeth and tap shape.
  • High efficiency to remove damage objects as below
  • Hex inside (not stripped)
  • Stripped hex inside
  • Round inside
  • Stripped round inside
  • Torx / torx plus / torx security inside
  • Stripped torx / torx plus / torx security inside
  • Wide application
  • Patented: EU, Japan
  • Patent Pending: Taiwan, Germany, USA, UK, China
Instructions:

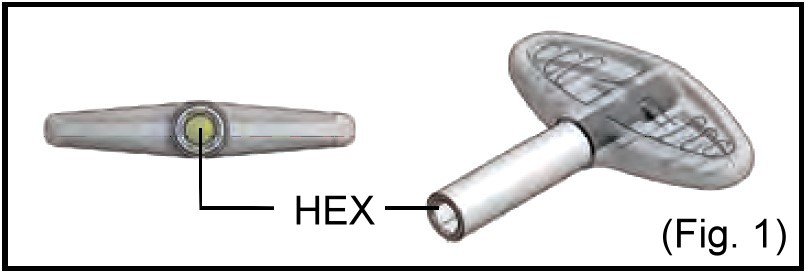

Step 1: Choose a suitable sized extractor and connect to the hex on the bit socket (fig. 1)

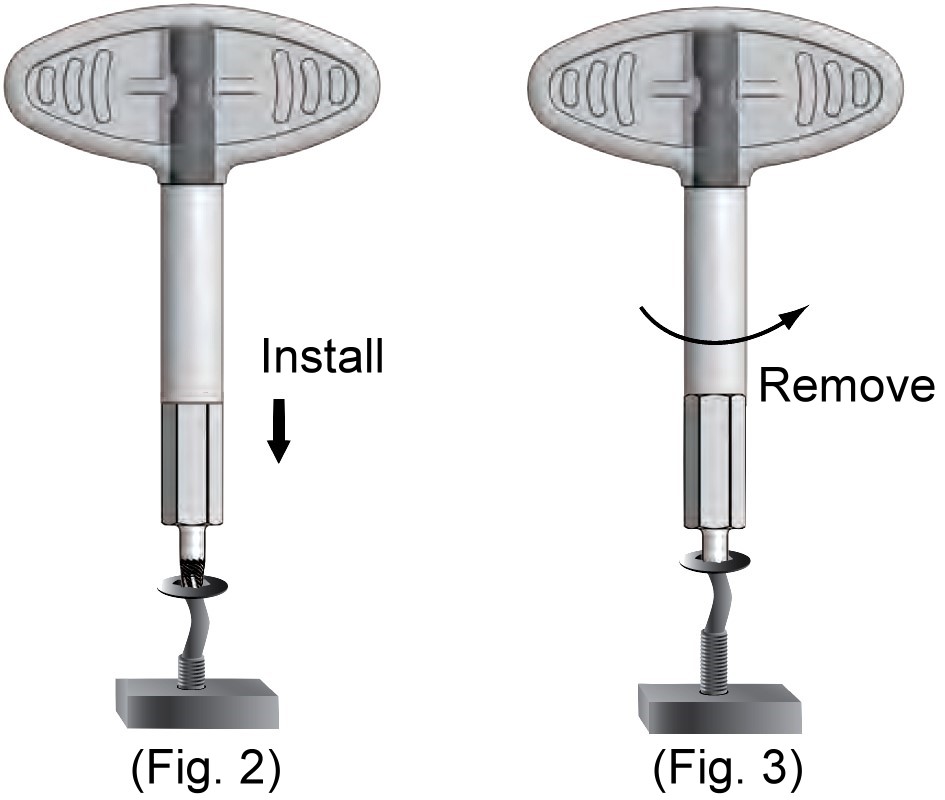

Step 2: Install the extractor on the object to be removed (fig. 2)
Step 3: Turn the bit socket for removing the object (fig. 3)


Object is damaged / stripped
Object is broken or cutted

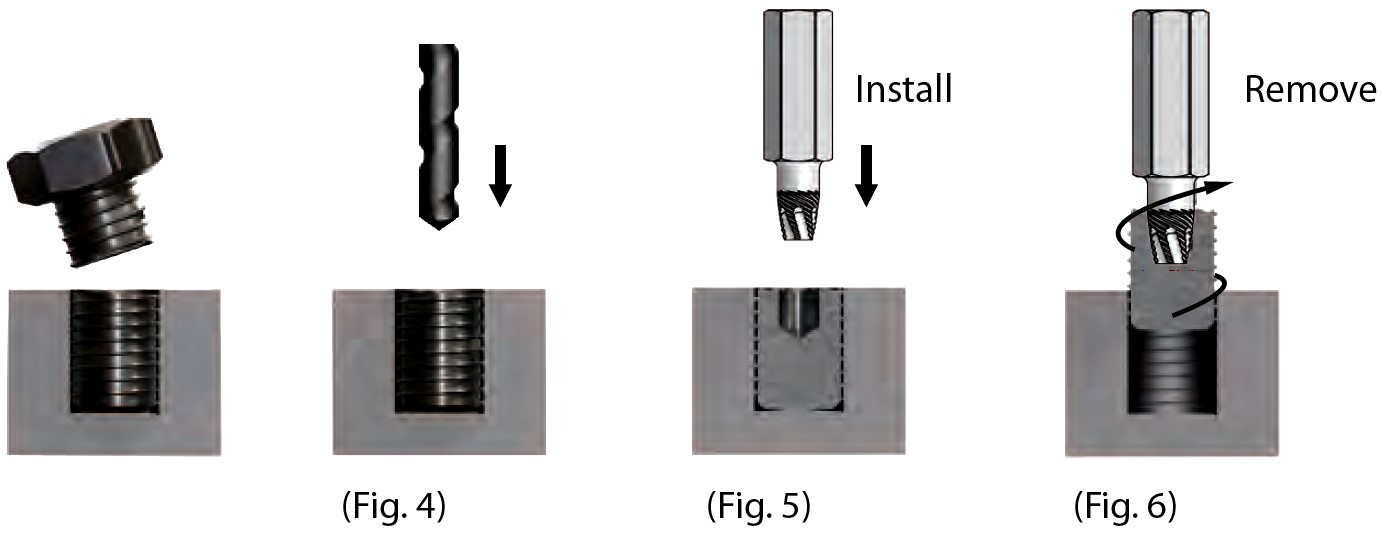

Step 1: drill a hole on the broken or cutted object (fig. 4)
Step 2: Choose a suitable sized extractor and connector to bit socket.
Step 3: Install the extractor on the object (fig. 5)
Step 4: Remove the object (fig. 6)
