8pcs Torx Plus Extractor Set

KA-6987
KA-6987

Model

KA-6987

Specification:

  • Material: S2
  • Hardness: 58-60 degree
ADD INQUIRY

Description

  • Special design of torx plus head, twist body with teeth and tap shape.
  • High efficiency to remove damage objects as below
  • Hex inside (not stripped)
  • Stripped hex inside
  • Round inside
  • Stripped round inside
  • Torx / torx plus / torx security inside
  • Stripped torx / torx plus / torx security inside
  • Wide application
  • Patented: EU, Japan
  • Patent Pending: Taiwan, Germany, USA, UK, China
 Instructions:

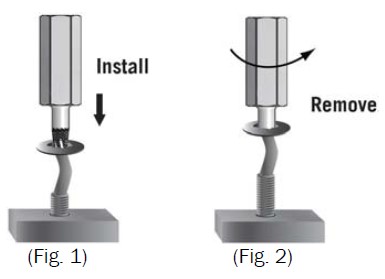

Step 1: Choose a suitable size of extractor. (Fig. 1)
Step 2: Install the extractor on object. (Fig. 1)
Step 3: Remove the object. (Fig. 2)

 Damage / Stripped object

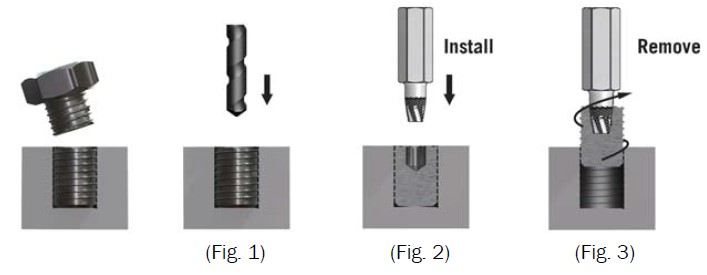

 		 When the object is cut:
Step 1: Drill a hole on stripped object. (Fig. 1)
Step 2: Choose a suitable size of extractor. (Fig. 2)
Step 3: Install the extractor on object. (Fig. 2)
Step 4: Remove the object. (Fig. 3)
