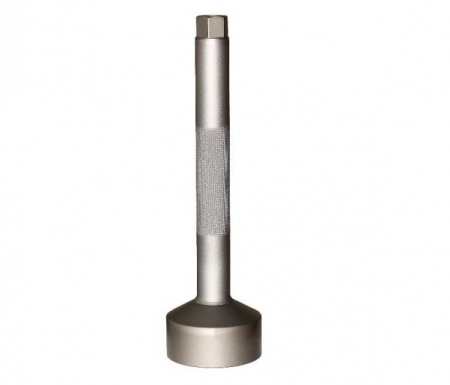

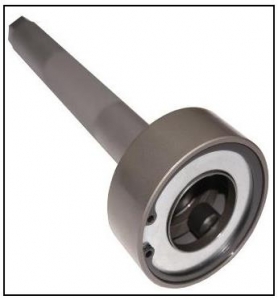

Axial Joint Tool

KA-7226(1)
KA-7226(1)

Model

KA-7226 / KA-7226A / KA-7226B

Specification:

  • KA-7226 : Head Application: Ø35mm ~ Ø45mm (head diameter Ø89mm)
  • KA-7226A : Head Application: Ø28mm ~ Ø35mm (head diameter Ø72mm) *Specially made for Small Cars.
  • KA-7226B : Head Application: Ø45mm ~ Ø55mm (head diameter Ø89mm)
ADD INQUIRY

Description

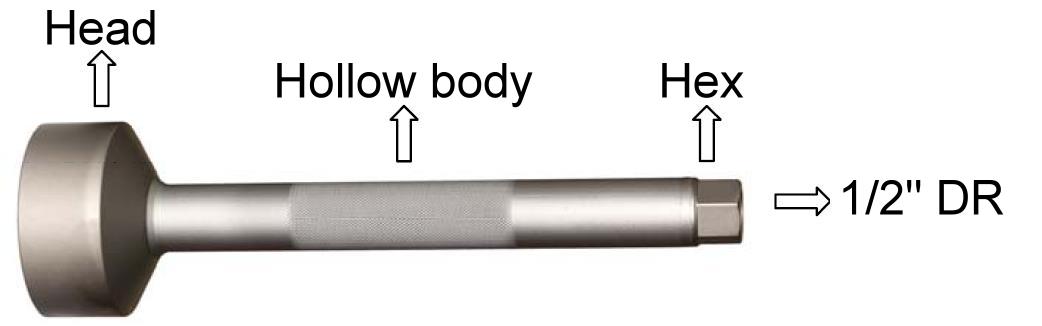

  • Hollow body: Length 400mm
  • Hex part on the end of tool: work with 27mm hex wrench or 1/2”DR. wrench.
  • Function: remove and replace the axial joint.
KA-7226(2)

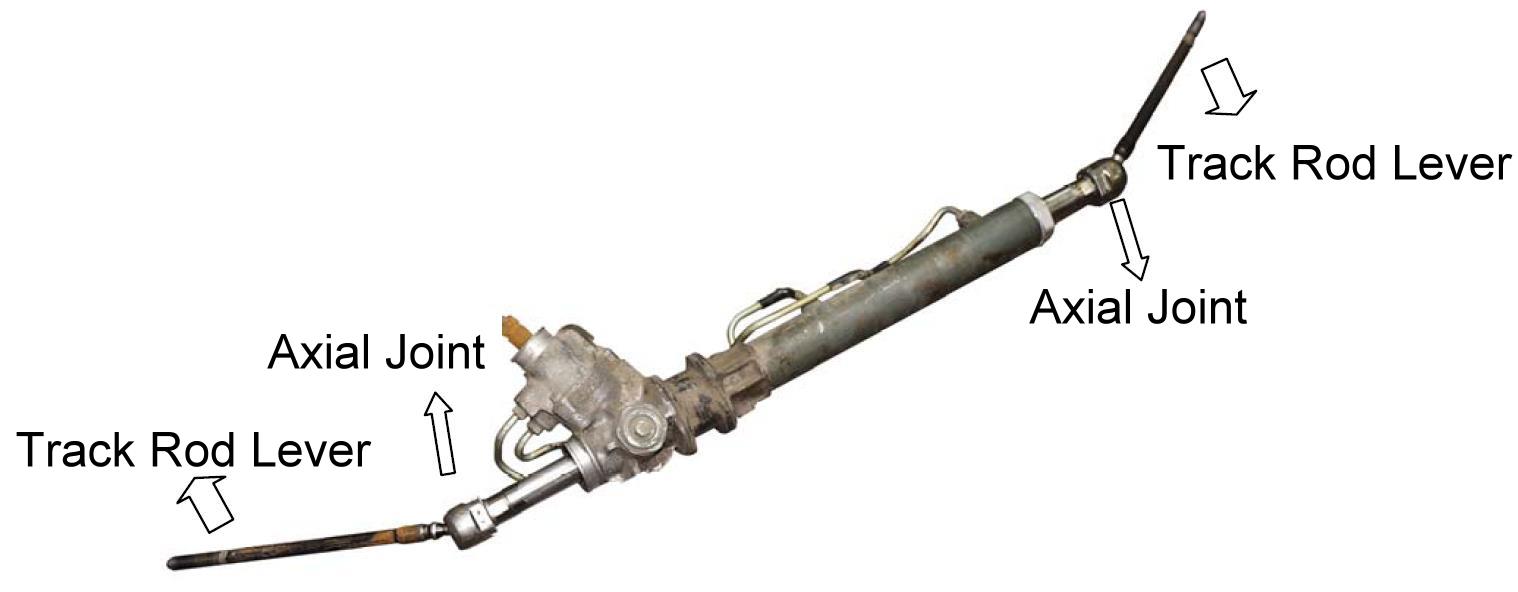

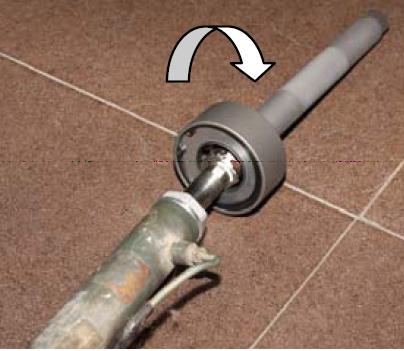

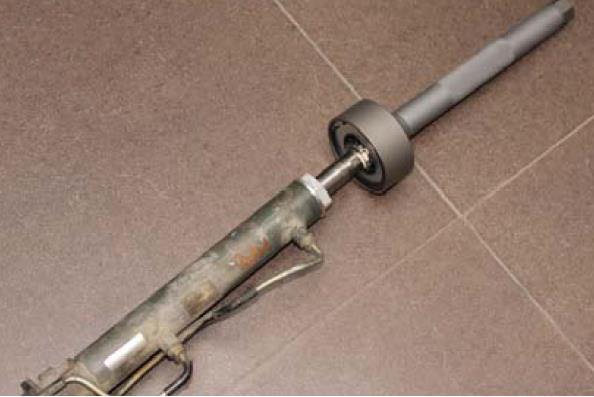

Step 1. The hollow body allowing the track rod lever to pass till the joint of the steering knuckle. Step 2. Choose a 27mm hex wrench to work the end of this tool, turn it anticlockwise to loosen the axial joint.
Note: take a new axial joint and turn the hex part clockwise to replace a new one.
