5pcs Internal Extractor Set

KA-3956
KA-3956

Model

KA-3956

ADD INQUIRY

Description

  • For tightly-fitting ball bearings, bearing races, bushings and shaft seals.
  • To use with impact bearing extractor or support brace.
  • Titanium-nitrided surface.

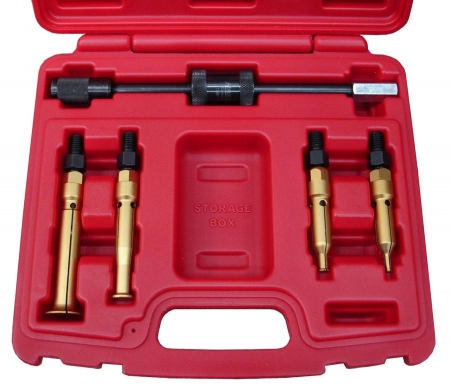

Contents :
  • 4 internal extractors  (5-8.5 mm), (8-15 mm), (15-24 mm), (25-36 mm)
  • 1 impact bearing puller.
  • Multiple wrench size (11+ 13 mm)
  • M10 connecting thread
Operation:
The internal extractor is inserted into the bearing and the spindle screwed in. The sharp turned-out shoulders of the pulling shell jaws will press outwards behind the part to be extracted. The counter-support brace or the impact bearing puller is then added.
