Application
Twist Sockets Shape gives Easier and Quicker Works.
Perfect to use when the Axle Screws is Damaged or Rusty.
Die Sizes
M20 x 1.25; M20 x 1.50; M22 x 1.00; M22 x 1.50; M24 x 1.50; M24 x 2.00
13/16” x 20 UNEF; 3/4” x 20 UNEF
Extension bar (OD: 27mm): Material-S45C; HR: 38-43 degree
Technical Data
Material : SCM440
Hardness: 45 ~ 48 degree
Instruction
Step 1: Remove the wheel axle nut.

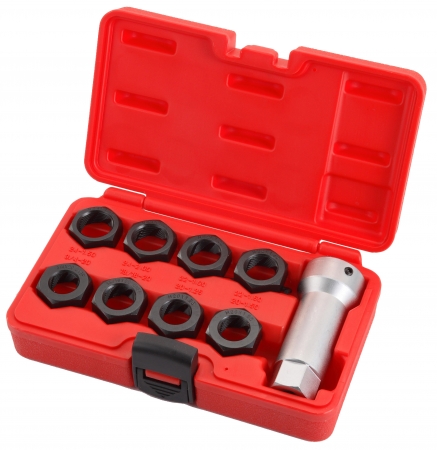

Step 2: Choose a suitable die from the 8 pieces provided.
Step 3: Screw the die onto axle spindle, then connect extension bar with the die.
Step 4: Using wrench or torque wrench for rethreading work.
