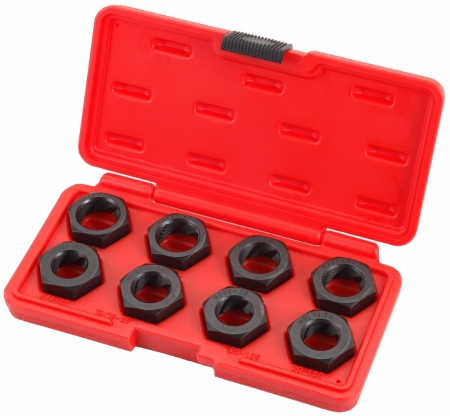

8pcs Twist Axle Spindle Rethreading Set

KA-6431A
KA-6431A

Model

KA-6431A

ADD INQUIRY

Description

  • This tool set accesses axle threads on spindles of eight popular die sizes for both cleaning and rethreading work.
  • Special twist shape provides an easier & quicker work.
Application
When the axle screw is damaged or with rust.
Using with 32mm spanner.

Die Sizes
M20 x 1.25; M20 x 1.50; M22 x 1.00; M22 x 1.50; M24 x 1.50; M24 x 2.00
13/16” x 20 UNEF; 3/4” x 20 UNEF

Technical Data
Material : SCM440
Hardness: 45 ~ 48 degree

Instruction
Step 1: Remove the wheel axle nut.(refer to fig.1)
Step 2: Choose a suitable die from the 8 pieces provided.
Step 3: Screw the die onto axle spindle.
