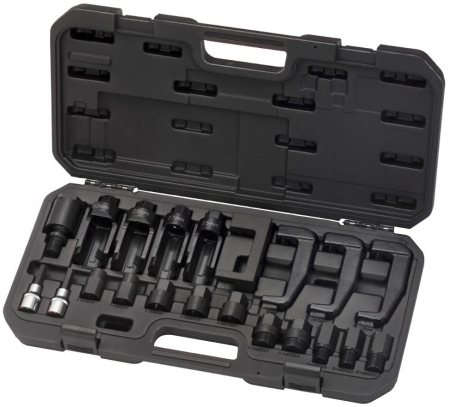

21pcs Injector Removal and Dismantling Set

Diesel Engine Tool
KA-5295
KA-5295

Model

KA-5295

Contents: Application
Universal joint: M18×1.5
Special bit insert hex 10mm × Ø7.6 1x special-use Allen SW10 with 7.5 mm bore, 1/2 drive, to remove the fixing ring, for example, Bosch injectors at MB CDI and PSA HDI
Special bit insert hex 10mm × Ø 6.6 For releasing the internal screw of the CR injectors.
Pull Spindle: IT M16 × 1.0 For Denso (Toyota 2.2D)
Pull Spindle: IT M17 × 1.0 For Bosch injectors, e.g., Alfa, BMW, Fiat, MB, PSA, Renault
Pull Spindle: IT M20 × 1.0 For Denso
Pull Spindle IT M25 × 1.0 Siemens injectors, e.g. PSA (DW10)
Pull Spindle IT M27 × 1.0 Siemens injectors, e.g. PSA (DW10)
Pull Spindle OT M16 × 1.5 Pull Adapter for M16 x1.5 thread, such as used in Facom tools
Pull Spindle OT M14 × 1.5 Internal thread for Bosch / Delphi Injectors, e.g. MB (OM 629/642/646), PSA (DV4 / DW12), VW (CBD), BMW (M47)
Pull Spindle OT M25 × 0.5 For Denso
Pull Spindle OT M25 × 0.75 For Denso
Pull Spindle OT M27 × 1.0 For Siemens, e.g. Citroen C5 / Jumpy / Xsara, Fiat Ducato JTD, Peugeot 206/307/406 / Boxer (2.0 / 2.2 / 2.3 HDI) Mercedes-Benz CDI (except A-Class (Sprinter / Vito)
Special socket (25mm) For Siemens Injectors - 2.0 Hdi (DW Series) As found on PSA, Ford, Toyota etc
Special socket (27mm) For Siemens Piezo Injectors – 2.0 Hdi Piezo (DW Series) As found on PSA etc
Special socket (29mm) For Bosch type injectors – Bosch Cdi / Hdi engines
Special socket (30mm) For Bosch type injectors – Bosch Renault / Nissan 1.9dCi
Injector gripper(12MM) For MB CDI-engines, except Sprinter, Vito and A-class
Injector gripper(13.5MM) For Opel Renault F9Q
Injector gripper(16MM) For Fiat Ducato JTD, Citroen C5, Xsara, Jumpy and Jumper HDI and Peugeot 206, 307, 406, Boxer HDI (2.0, 2.2, 2.3I)
Injector gripper(26MM) For Opel Z19DT / Z19DTH / Z19DTL engines, A20DTH (LBS) / A20DTR (LBY) / A20DTJ (LBX) / A20DTC (LCD) and Fiat 1.9 JTD
