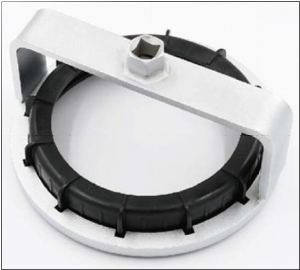

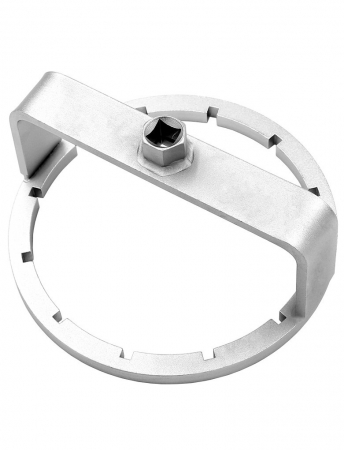

Fuel Tank Locking Ring Tool For Volvo

Fuel System
KA-5337
KA-5337

Model

KA-5337

Description

  • This specialized tool is designed to remove and install the fuel tank locking ring on Volvo diesel or petrol engine.
  • Suitable for C30 / C70 (06~) / S40 (04~) / S60 (11~) / S80 (07~) / S80L / V40 (13~) / V40 Cross Country / V50 / V60 / V70 (08~) / XC60 / XC70 (08~)
  • OEM Ref. 9997093
KA-5337(示意圖)
Used on the following engines:
B4164S3, B4164T, B4164T3, B4164T4, B4184S11, B4184S8, B4204S3, B4204S4, B4204T11, B4204T12, B4204T12, B4204T15, B4204T6, B4204T7, B5204T8, B5204T9, B5244S4, B5244S5, B5254T10, B5254T11, B5254T12, B5254T14, B5254T3, B5254T6, B5254T7, B5254T8, B6324S, B6324S2, B6324S4, B6324S5, D4162T, D4164T, D4204T, D4204T2, D4204T5, D5204T, D5204T2, D5204T3, D5204T4, D5204T5, D5204T6, D5204T7, D5244T10, D5244T11, D5244T13, D5244T14, D5244T15, D5244T17, D5244T19, D5244T4, D5244T5, D5244T8, D5244T9.
