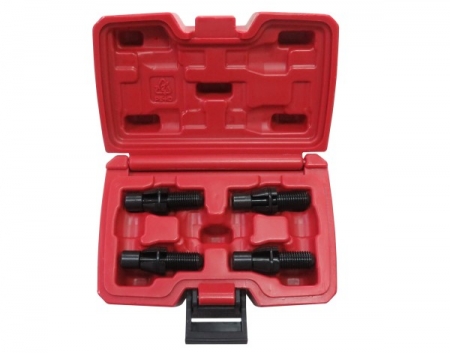

4pcs Subframe Locating Pin Set - M12 x 1.5

Universal Engine Repair Tool
KA-5376
KA-5376

Model

KA-5376

Specification:

  • Material: Cr-Mo with S45C Steel, FINISH: PH Black
  • Size : M12 x 1.5

Description

  • On some vehicles in the Volkswagen Audi Group the sub-frame needs to be removed to service the suspension bushes, when removing the clutch, changing the engine, servicing the wheels, steering, stabilizer bar or control arms.
  • These pins are screwed into the sub-frame and used to guide it back into place once the task is complete. Care should be taken to bolt back diagonally and to the manufacturer's recommended torque.
  • The first an M12 can be fitted to Volkswagen Scirocco (09), EOS (06), Golf (09), Golf Plus (05), Jetta (4-06), Polo (02), Fox (06), Passat (06), Passat CL (09), Audi A3 (04), TT (07) and A4 (01) - OEM T10096 (Sub-frame Locating Pins – Volkswagen and Audi Group.
