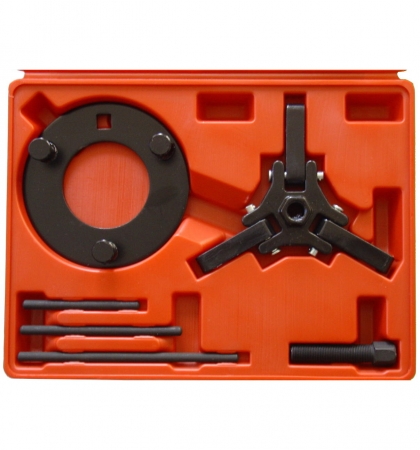

Harmonic Damper Pulley Holding & Puller Set

ka-5131
ka-5131

Model

KA-5131

ADD INQUIRY

Description

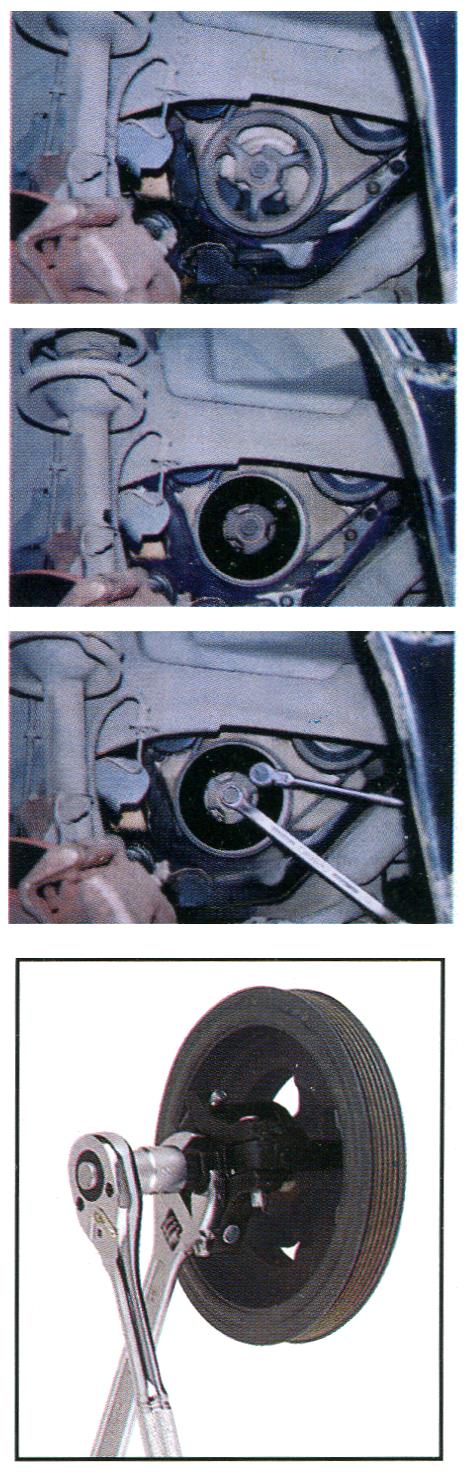

  • This unique tool has been developed to aid in the removal and installation of the crank bolt on most chrysler hyundai and mazda engines.
  • The tool has a 1/2” square drive hole for use with abreaker bar or ratchet.
  • This unique tool has been develoed to aid in the removal of the harmonic damper pulleys.
  • This pulley is hard to access and remove due to space limiations in and around the engine compartment.
  • In most cases this compact tool eliminates the need of a technician to go through the time consuming process or first removing the radiator before being able to remove the pulley.
This low profile puller has been diesigned for use on the following automobiles, vans & pickups:
Chrysler 1990 & later vans with 3.3l V-6
Chrysler 1993-1997 automobiles with 3.3l & 3.5l V-6
Chrysler 1994 & later vans with 3.8l V-6
Chrysler 1994 & later pickups with 8.0l V-10
Chrysler 1995 & later automobiles with 2.0l 4 cyl, 2.4 4 cyl & 2.5l V-6
Chrysler 1998 & later automobiles with 2.7l
Dohc V-6, 3.2l sohc V-6 & 3.5l sohc V-6
Chrysler 1998 and laster 4.7l V-8
Mitsubishi eclipse 1995-1999 2.0l dohc non-turbo
GM 1997 & later genlll 5.7l V-8, includes camaro, corvette, firebird and trans-am 2000 and later genlll turcks & suv’s with 4.8l V-8, 5.3l V-8, 6.0l V-8 and 8.1l V-8
Cadillac 1988-1992 4.5l V-8, 1991-1995 4.9l V-8, 1993 & later 4.6l V-8, escalade 6.0l V-8
OLDSMOBILE 1995 & LATER 4.0L V-8
