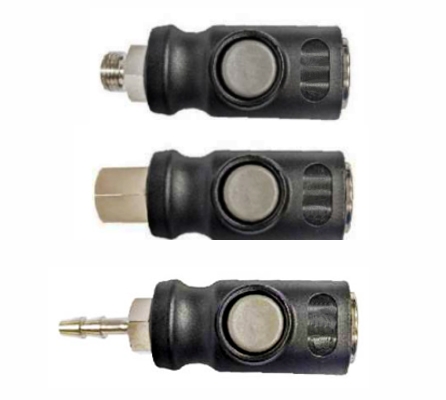

Safety Push Button Coupler
Model

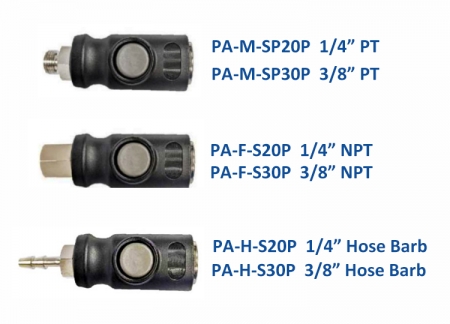

PA-M-SP20P , PA-M-SP30P, PA-F-S20P , PA-F-S30P , PA-H-S20P , PA-H-S30P
Specification:
- For Pneumatic tools, Air Piping, Air Pressure Equipment.
- Compatible with RECTUS (V-TYPE) Plug
- Maximum Pressure: 20 Bar
- Convenient and Safe Connection Design
- RoHS Compliance
- The Body can be Rotated 360°
- Life Testing: 100,000 times
| Material | Plastic (PA6+30%GF) + Steel |
|---|---|
| Working Pressure | 218 PSI (15 Bar/1.5 Mpa) |
| Maximum Pressure | 290 PSI (20 Bar /2 Mpa) |
| Size | 1./4” (20 Type), 3/8” (30 Type) |
| Temp Range | -5 ~ +60 oC |
| Flow Rate | 104 CFM (Inlet 10 Bar) |
