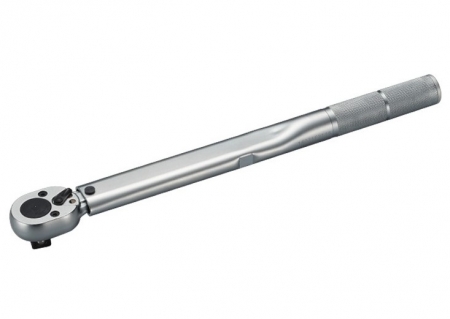

Preset Click Torque Wrench
Model
KA-4552 , KA-4553 , KA-4554 , KA-4555
Specification:
- Industrial application with durability.
- Tolerance of torque ±3%.
- The customization of the torque setting.
- Quality meets DIN ISO 6789 & ASME B107.300-2010.
Description:
.jpg)

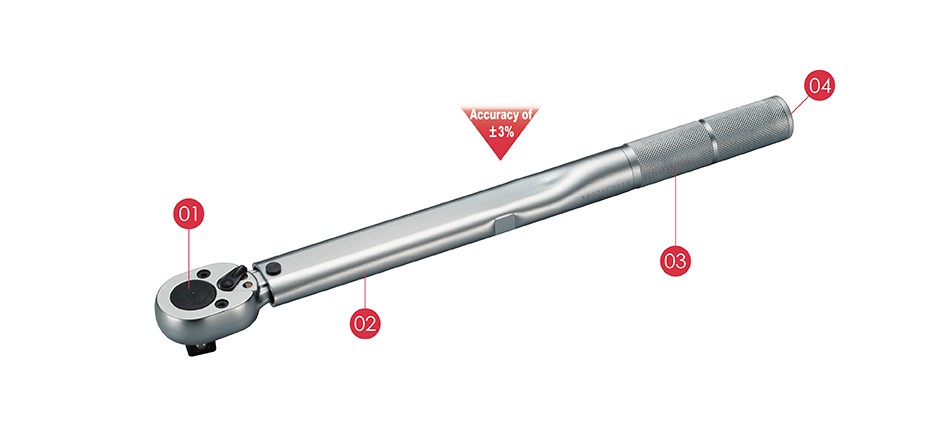

- Ratchet head: A highly robust ratchet mechanism for CW direction application. Repair kit for inner spare parts of ratchet head is available.
- Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use. Thin head and flat tube is suitable for narrow working environment. An audible and palpable signal indicates automatically when the desire torque value is achieved.
- Knurled handle: Non-slip knurled handle design.
- Presetting device: The presetting value is adjusted by the inner screw. The torque tester is required.
| Item NO. | Square drive | Teeth | Nm | L(mm) | g | case/CTN |
|---|---|---|---|---|---|---|
| KA-4552 | 1/4” | 24T | 0.3~2 | 162 | 177 | 24 |
| KA-4552-2D | 1/4” | 24T | 0.6~3 | 162 | 177 | 24 |
| KA-4552-3D | 1/4” | 24T | 1~6 | 162 | 177 | 24 |
| KA-4552-4D | 1/4” | 24T | 2~15 | 211 | 223 | 24 |
| KA-4552-5D | 1/4” | 24T | 5~25 | 218 | 234 | 24 |
| KA-4553 | 3/8” | 24T | 5~25 | 218 | 234 | 24 |
| KA-4553-4D | 3/8” | 24T | 10~50 | 240 | 472 | 24 |
| KA-4553-5D | 3/8” | 24T | 20~100 | 320 | 575 | 24 |
| KA-4554 | 1/2" | 24T | 20~100 | 320 | 575 | 24 |
| KA-4554-2D | 1/2" | 24T | 30~140 | 347 | 710 | 24 |
| KA-4554-3D | 1/2" | 24T | 40~200 | 470 | 1307 | 24 |
| KA-4555 | 3/4" | 24T | 40~280 | 554 | 1520 | 24 |
| KA-4555-2D | 3/4" | 24T | 60~420 | 609 | 1667 | 24 |
