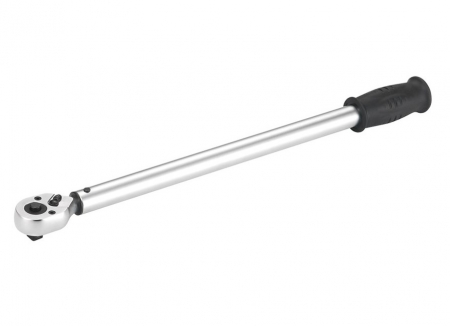

Preset Torque Wrench

KA-4576
KA-4576

Model

KA-4547 , KA-4548 , KA-4576 , KA-4549 , KA-4550

Specification:

  • Tolerance of torque±3%.
  • Industrial application.
  • The customization for the torque setting.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
ADD INQUIRY

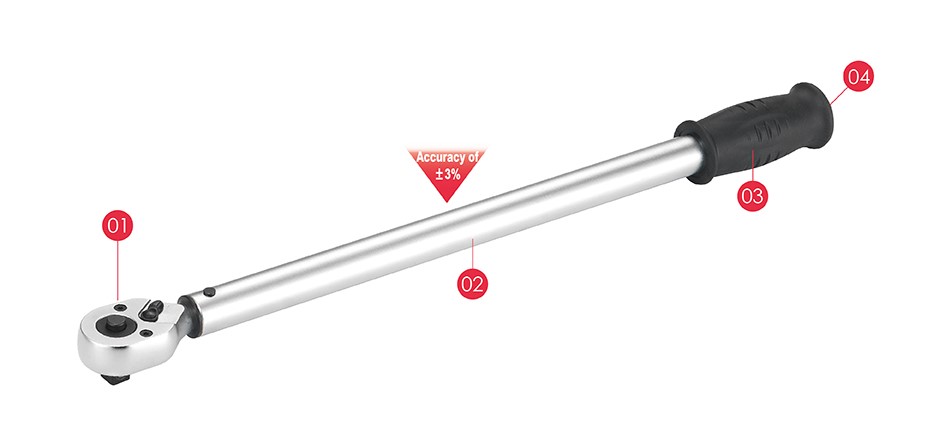

Description:
  1. Ratchet head: A highly robust ratchet mechanism for CW and CCW directions application. Quick released design for changing socket quickly. Repair kit for inner spare parts of ratchet head is available.
  2. Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use. An audible and palpable signal indicates automatically when the desire torque value is achieved.
  3. TPR handle: The injection method TPR handle with non-slip and comfort features. REACH - SVHC Declaration of Conformity.
  4. End cap: Poly End cap with standard or customized design.
Item NO. Square drive Teeth Torque Range(Nm) L(mm) g case/CTN
KA-4547 1/4” 24T 2~10 224 400 24
KA-4547-02W 1/4” 24T 4~20 271 410 24
KA-4547-03W 1/4” 24T 10~50 271 410 24
KA-4548 3/8” 32T 20~100 355 950 12
KA-4548-02W 3/8” 24T 10~60 285 535 24
KA-4548-03W 3/8” 24T 2~10 224 400 24
KA-4548-04W 3/8” 24T 4~20 285 535 24
KA-4576 1/2” 32T 40~200 430 1215 12
KA-4576-02W 1/2” 32T 60~340 534 1450 12
KA-4576-03W 1/2” 32T 20~100 355 950 12
KA-4549 3/4” 24T 100~600 1050 4600 2
KA-4549-02W 3/4” 24T 200~1000 1240 5110 2
KA-4550 1” 24T 200~1000 1240 5110 2
KA-4550-03W 1” 24T 300~1500 1850 9500 2
