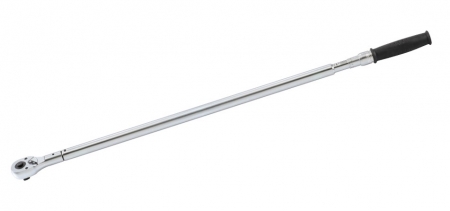

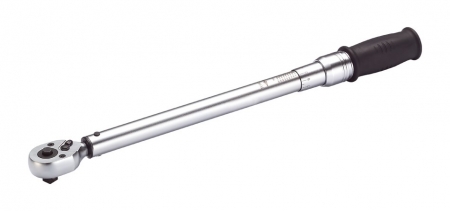

Adjustable Torque Wrench

KA-4556
KA-4556
KA-4556 (1)
KA-4556 (demo 2)

Model

KA-4556 , KA-4566 , KA-4568 , KA-4569 , KA-4570

Specification:

  • Industrial application.
  • Wide range of choice.
  • Tolerance of torque ±3%.
  • Easy torque-adjusting design.
  • Quick release design.
  • Applied to both clockwise and counterclockwise directions.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
ADD INQUIRY

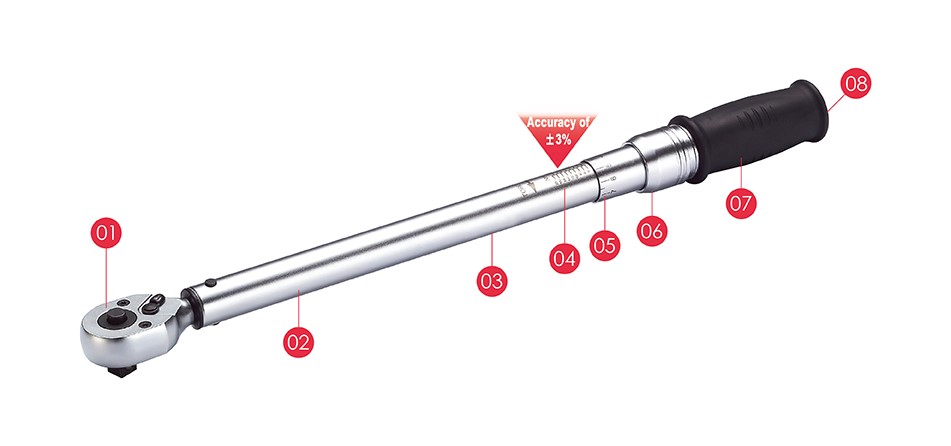

Description:

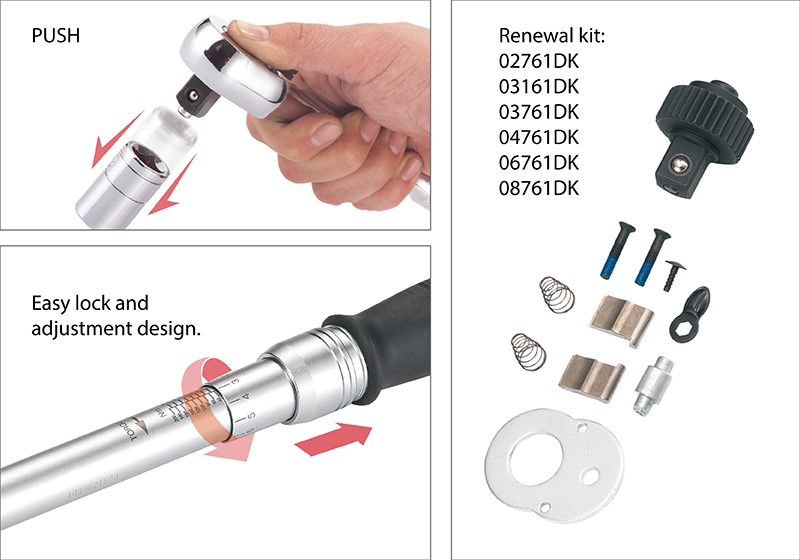

  1. Ratchet head: A highly robust ratchet mechanism for CW and CCW directions application. Quick released design for changing socket quickly. Repair kit for inner spare parts of ratchet head is available.
  2. Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use. An audible and palpable signal indicates automatically when the desire torque value is achieved.
  3. Serial number: Each piece stamping serial number for traceability.
  4. Scales: Easy read laser scales is flexible for multi units and double scales for different market need.
  5. Micrometer scales: Very precise adjustment by visible micrometer laser scales on handle ensure optimal and simplified readings while operation.The micrometer scales for precision adjustment is in integral values, for user easily take round figure while operation.
  6. Lock ring: Easy torque adjustment by press down the Lock-ring, brings energy saving and automatically lock device to avoid accidentally altering setting.
  7. TPR handle: The injection method TPR handle with non-slip and comfort features. REACH - SVHC Declaration of Conformity.
  8. End cap: Plastic poly end cap with standard or customized design.


Item NO. Square drive Teeth Nm Graduation L(mm) g case/CTN
KA-4556 1/4” 24T 2~10 0.1 281 590 24
KA-4556-2DW 1/4” 　24T 4~20 0.1 329 650 24
KA-4556-4DW 1/4” 　24T 10~50 0.25 329 650 24
KA-4556-8DW 1/4” 　24T 5~25 0.2 329 650 24
KA-4566 3/8” 24T 4~20 0.1 329 650 24
KA-4566-2DW 3/8” 32T 20~100 0.5 436 1320 12
KA-4566-3DW 3/8” 　32T 10~60 0.5 344 760 24
KA-4566-4DW 3/8” 　32T 10~50 0.25 344 760 24
KA-4566-8DW 3/8” 24T 5~25 0.2 329 650 24
KA-4566-9DW 3/8” 　24T 2~10 0.1 281 590 24
KA-4568 1/2” 32T 40~200 1 512 1580 12
KA-4568-2DW 1/2” 　32T 60~340 2 614 1800 12
KA-4568-3DW 1/2” 　32T 60~420 2 614 1800 12
KA-4568-5DW 1/2” 　32T 80~400 2 614 1800 12
KA-4568-8DW 1/2” 　32T 50~350 2 614 1800 12
KA-4568-84W 1/2” 　32T 20~100 0.5 436 1310 12
KA-4569 3/4” 24T 100~600 5 1050 5030 2
KA-4569-2DW 3/4” 　24T 150~800 5 1240 6110 2
KA-4569-3DW 3/4” 　24T 200~1000 5 1240 6110 2
KA-4569-5DW 3/4” 32T 80~400 2 614 1800 12
KA-4570 1” 24T 150~800 5 1240 6230 2
KA-4570-2DW 1” 　24T 200~1000 5 1240 6110 2
KA-4570-3DW 1” 　24T 300~1500 10 1850 10510 1

Item NO. Square drive Teeth ft-lb Graduation L(mm) g case/CTN
KA-4556-1EW 1/4” 24T 20~100 1 281 590 24
KA-4556-2EW 1/4” 24T 30~200 1 329 650 24
KA-4556-6EW 1/4” 24T 100~500 2.5 329 650 24
KA-4556-7EW 1/4” 24T 50~250 2 329 650 24
KA-4566-1EW 3/8” 24T 30~200 1 329 650 24
KA-4566-2EW 3/8” 32T 10~80 0.5 436 1320 12
KA-4568-1EW 1/2” 32T 20~150 1 512 1580 12
KA-4568-2EW 1/2” 32T 30~250 1 614 1800 12
