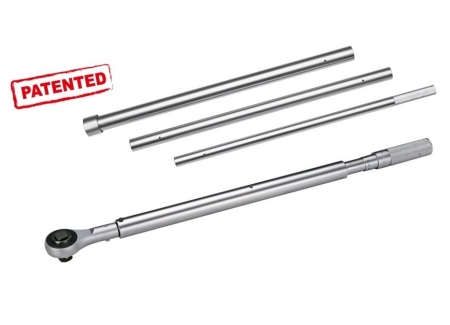

2500Nm Torque Wrench

KA-4546
KA-4546
KA-4546 (1)

Model

KA-4546 , KA-4546-3DW , KA-4546-2EW , KA-4546-3EW

Specification:

  • Industrial application.
  • Wide range of choice.
  • Tolerance of torque ±3%.
  • Easy torque-adjusting design brings energy-saving benefit.
  • Push through design.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
ADD INQUIRY

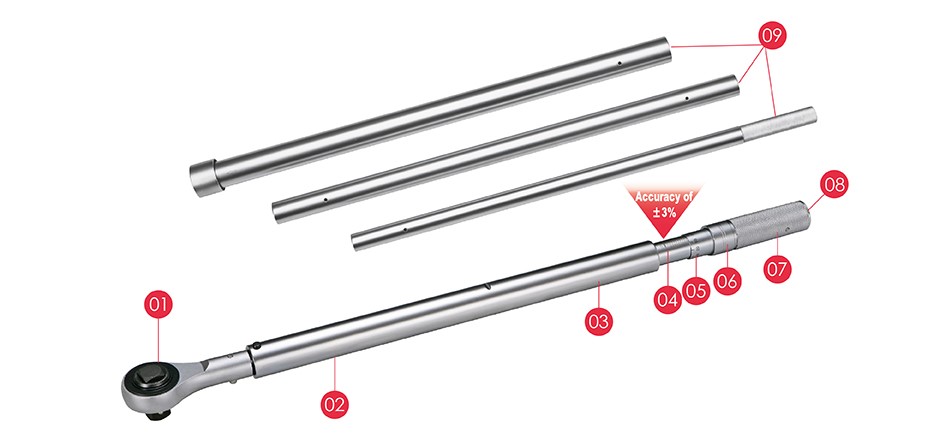

Description:
  1. Round head: A highly robust mechanism with inner 4 pawls mechanism design to bear large output value, without plate and screws to avoid loosing while operation. Push-through square drive.
  2. Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use. An audible and palpable signal indicates automatically when the desire torque value is achieved.
  3. Serial number: Each piece stamping serial number for traceability.
  4. Scales: Easy read laser scales is flexible for multi units and double scales for different market need.
  5. Micrometer scales: Very precise adjustment by visible micrometer laser scales on handle ensure optimal and simplified readings while operation.The micrometer scales for precision adjustment is in integral values, for user easily take round figure while operation.
  6. Lock ring: Easy torque adjustment by press down the Lock-ring, brings energy saving and automatically lock device to avoid accidentally altering setting.
  7. Knurled handle: Non-slip knurled handle design; customized color handle is available.
  8. End cap: Aluminum poly end cap with standard or customized design.

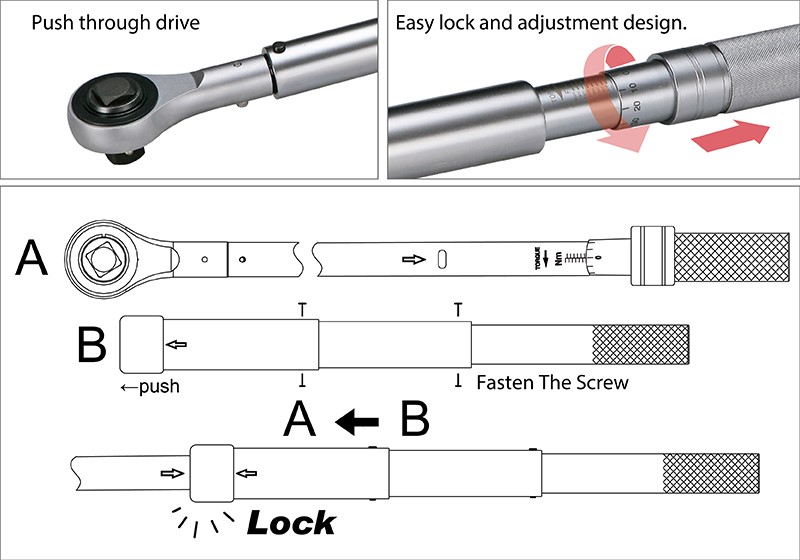

  9. Extension bar: It is necessary to connect 3 extension bars while operation. The easy lock design, to insert extension bar until locking position.

Item NO. Square drive Teeth Nm Graduation L(mm) g case/CTN
KA-4546 1” 36T 400~2000 20 2300 18300 1
KA-4546-3DW 1” 36T 500~2500 20 2755 19600 1

Item NO. Square drive Teeth ft-lb Graduation L(mm) g case/CTN
KA-4546-2EW 1” 36T 300~1500 10 2300 18300 1
KA-4546-3EW 1” 36T 400~2000 10 2755 19600 1
