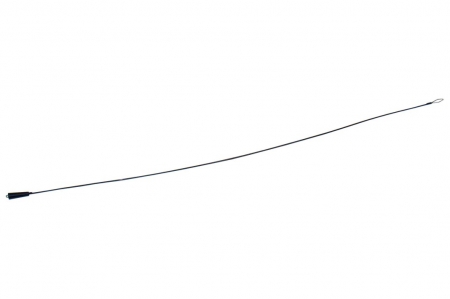

Wire Installer

KA-3117(1)
KA-3117(1)
KA-3117

Model

KA-3117 / KA-3117A / KA-3117B

ADD INQUIRY

Description

  • Designed for quick and easy installation of wires.
  • Convenient, Easy

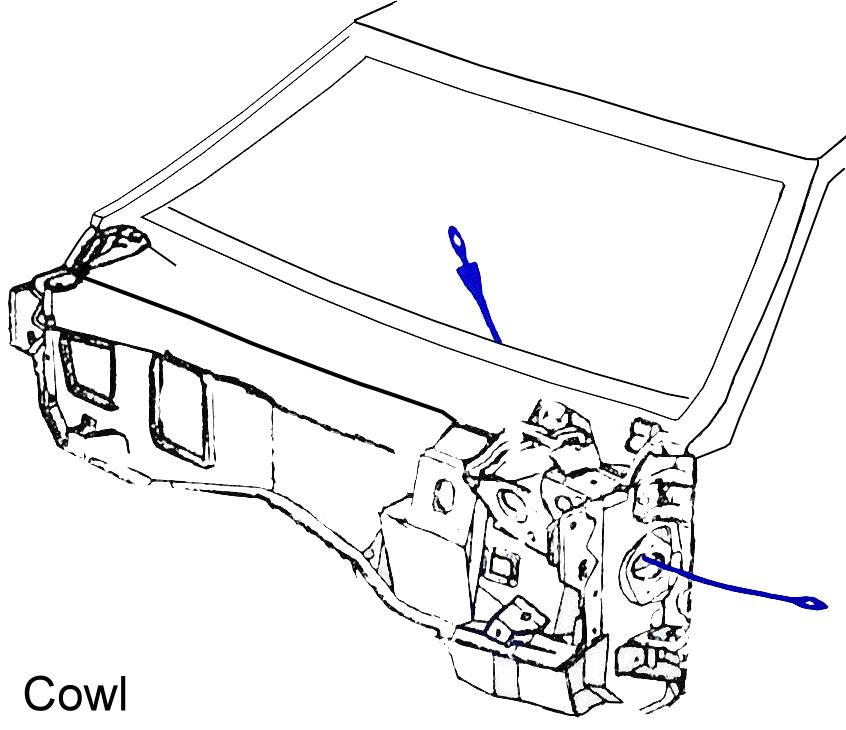

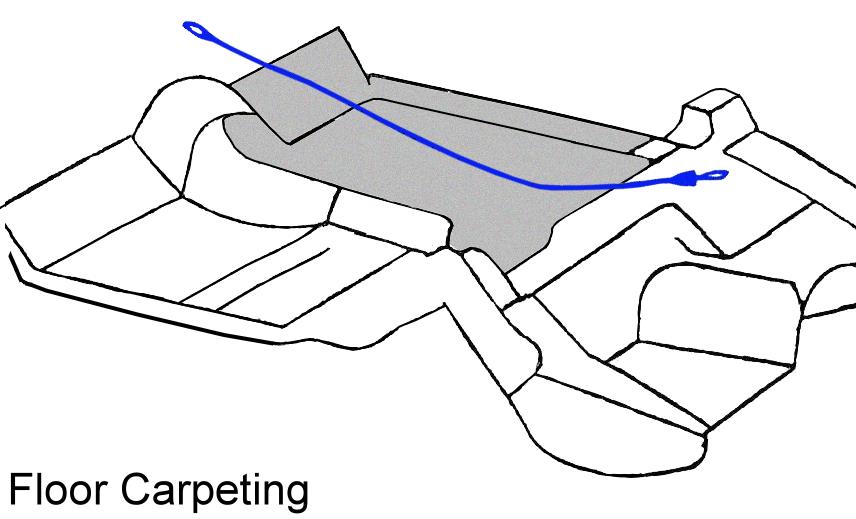

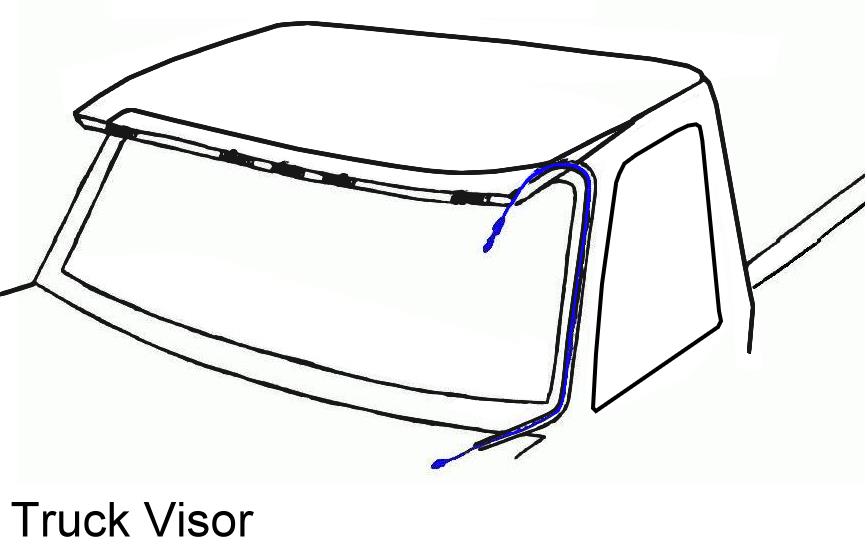

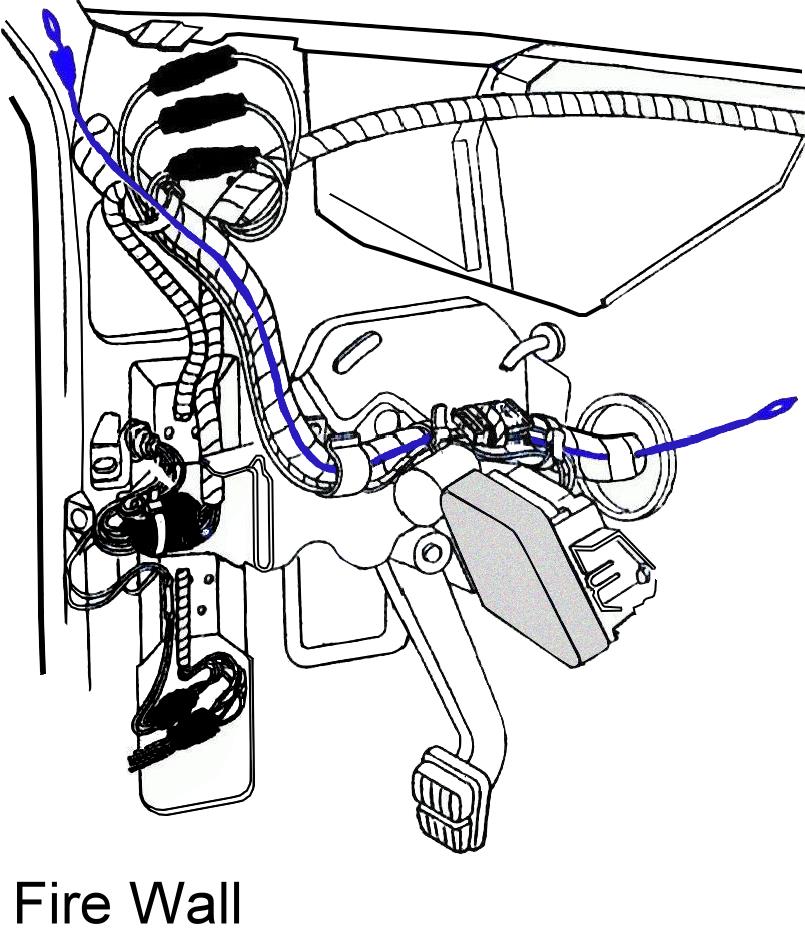

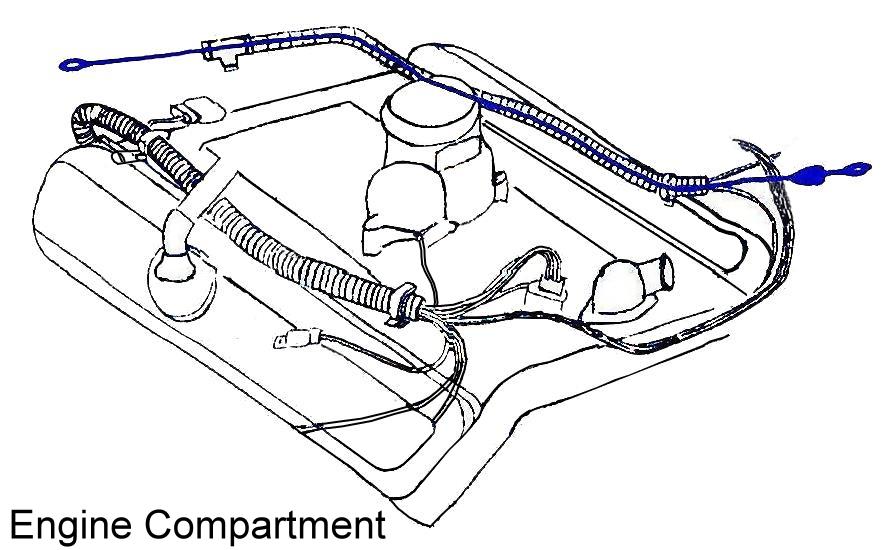

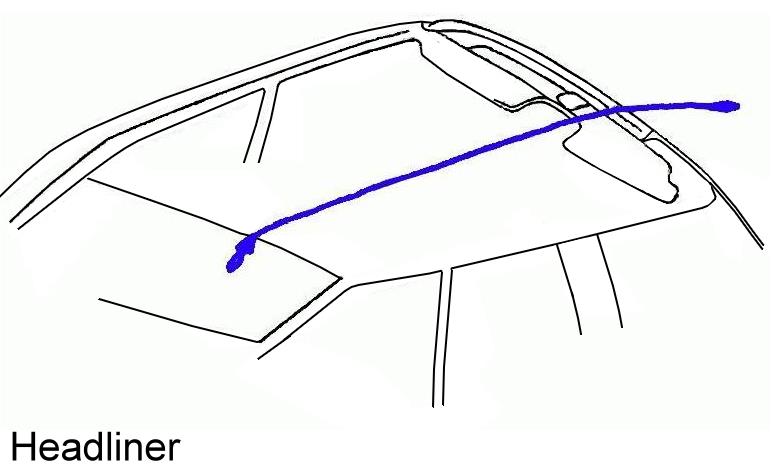

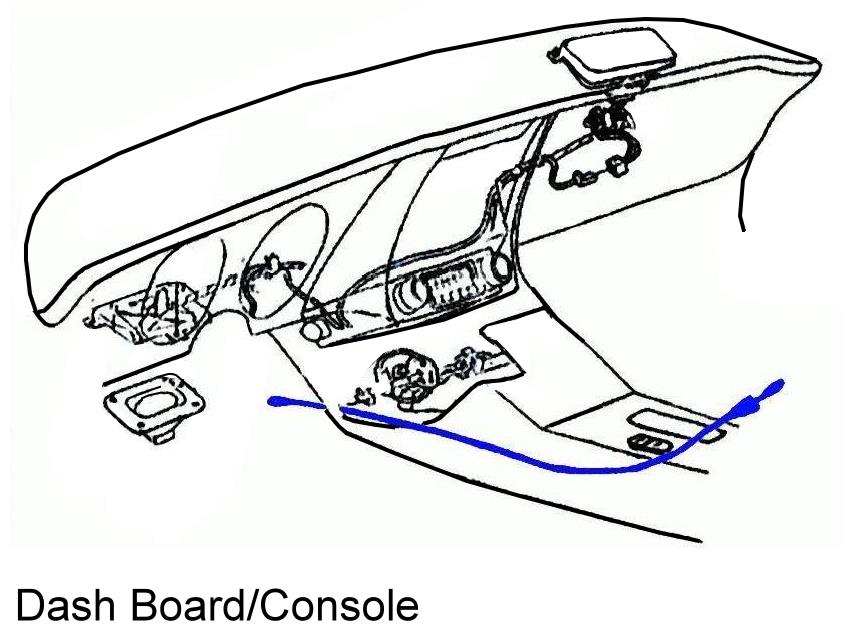

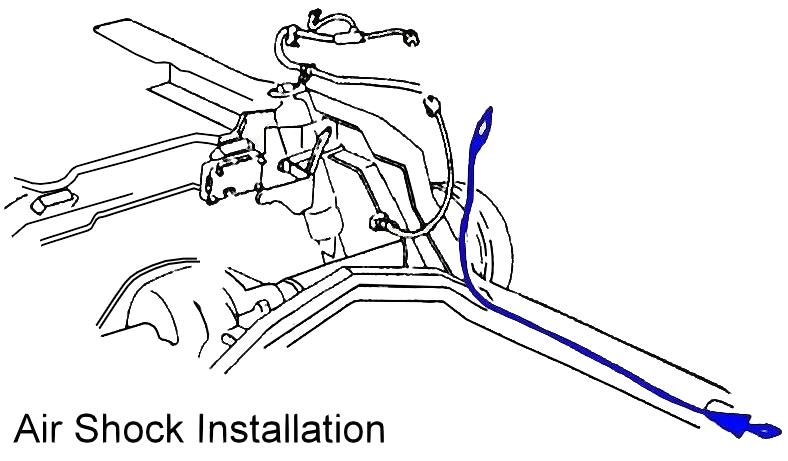

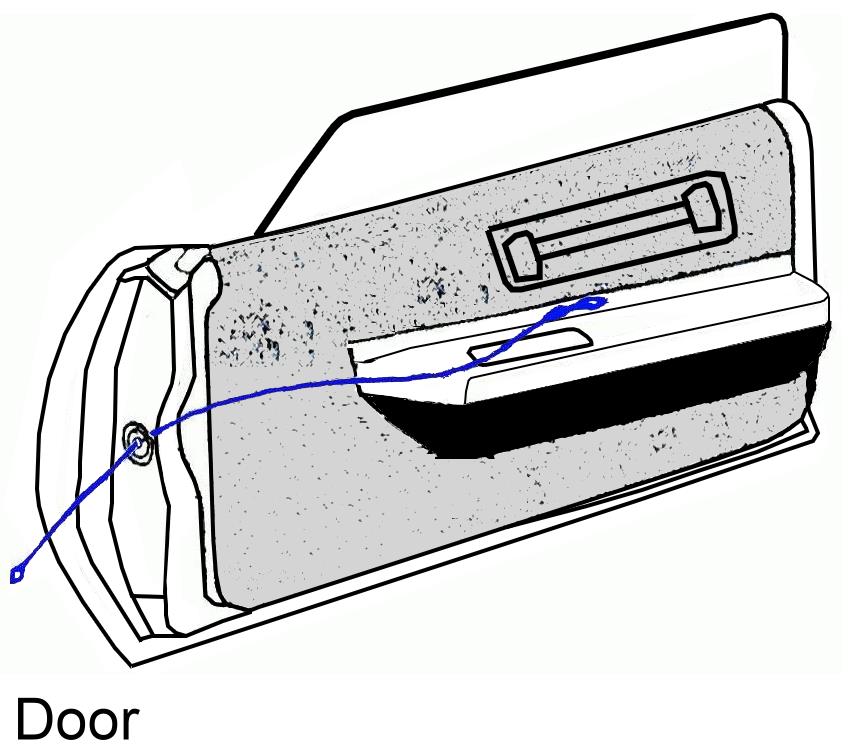

  • Suits for most wire installation work, (e.g. use in cars, trucks, motorcycles, plane, stereo systems, alarm systems, cellular phones, vacuum hoses, and air shock supply lines…etc)

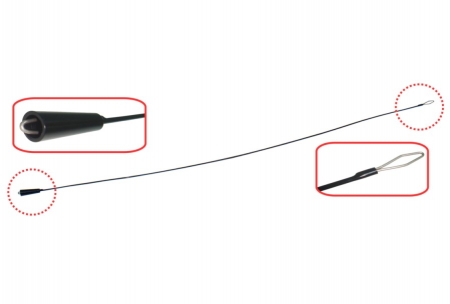

  • Eyelet shaped collet provides secure wire retention when threading wires. Will push or pull wires through openings.
Item No. Length
KA-3117 730mm
KA-3117A 1000mm
KA-3117B 1500mm

Operation:

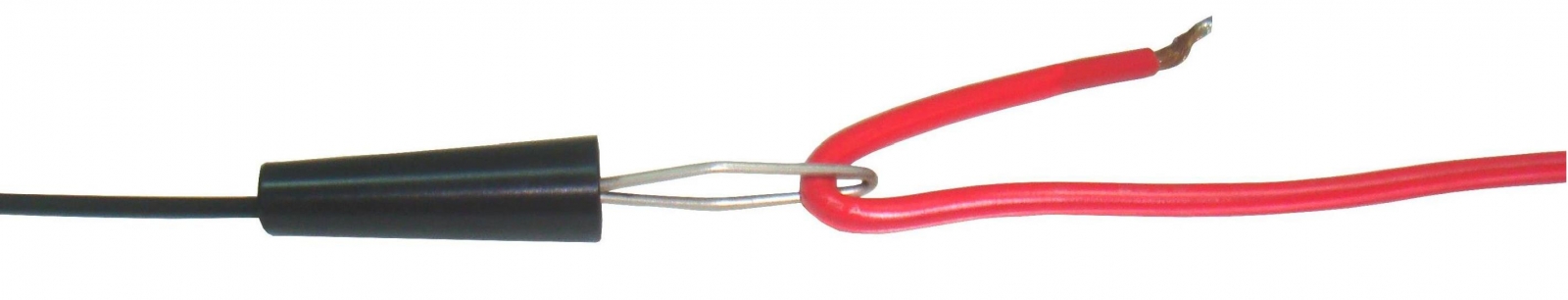

(A) Thread about 1” of the wire/hose through the eyelet of this tool. Fold the wire/hose to the end of wire till parallel.

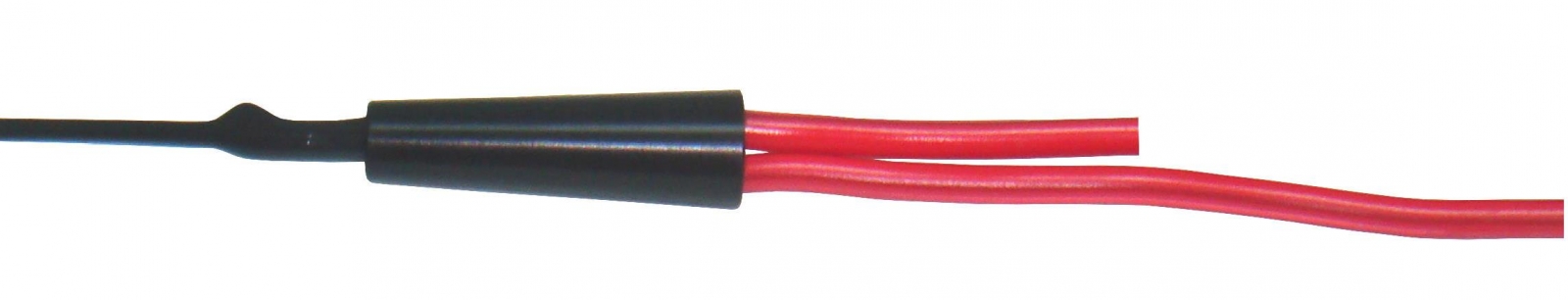

(B) Slide the plastic cone collet up over the eyelet to lock in the wire.

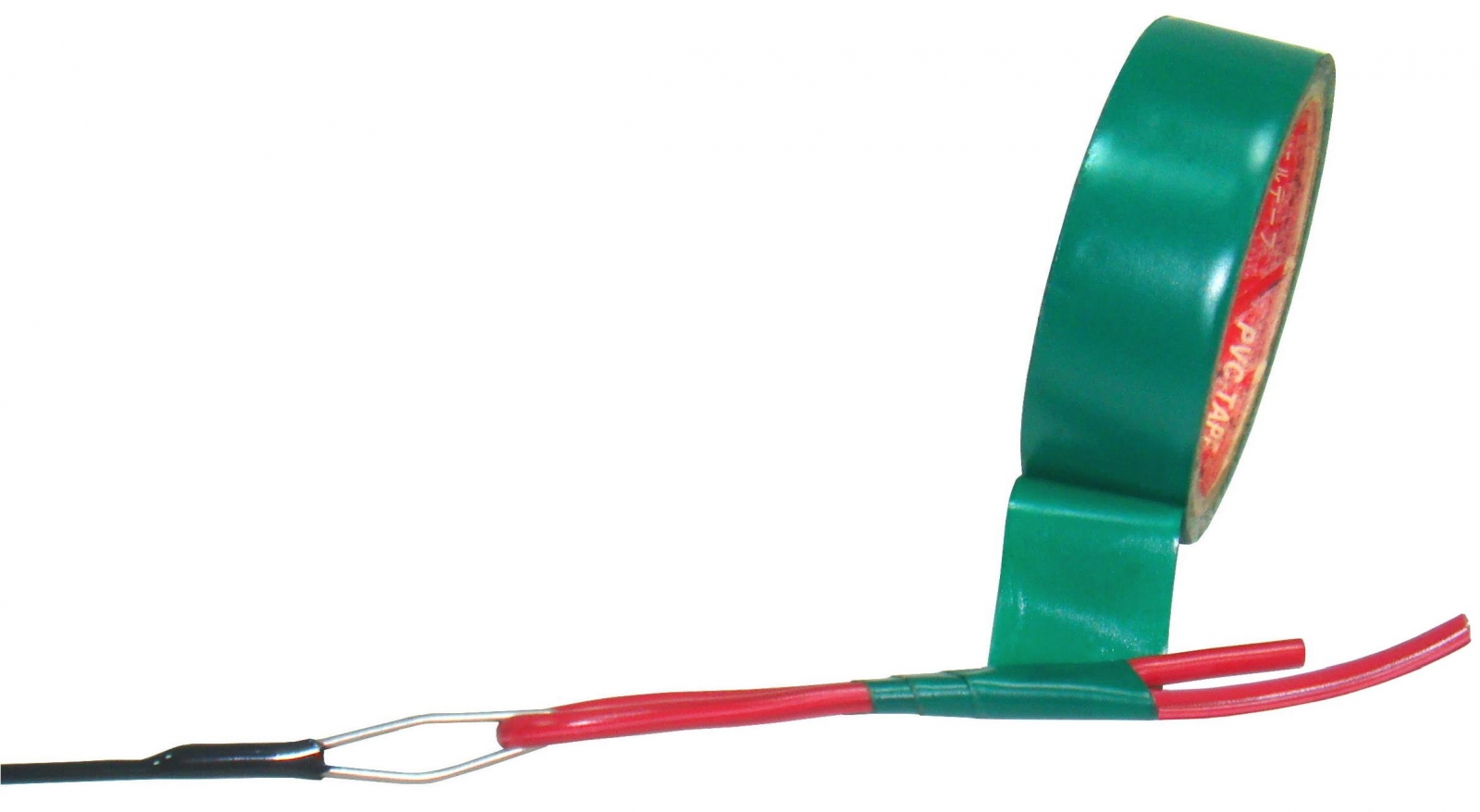

(C) For extremely confined areas, where the wire is too large to pass through. Thread about 1.5” of the wire/hose through the eyelet of this tool. Fold the wire/hose to the end of wire till parallel, then warp the wire with electrical tape in spiral motion.
* Push and rotate the tool slowly when tool does not move smoothly through obstructed areas.
* Please always disconnect vehicle power before using this tool.
* Please always wear eye protection when using this tool.
