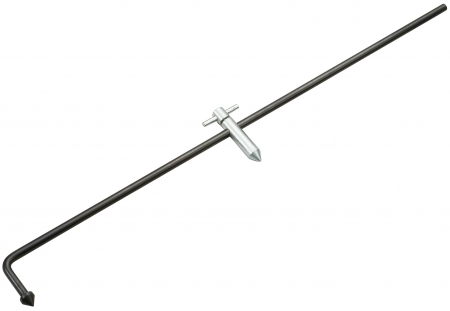

Rear Axle Alignment Tool
Model
KA-4053
Specification:
- It is essential tool proper axle alignment
- The 90-degree angle and adjustable pointer design allows operator to rest it in the swing-arm pivot and axle.
Instructions:
- Loosen rear axle nut, put the 90° angle end in swing-arm pivot bolt.
- Loosen adjustable pointer and move it to end of rear axle. Tighten screw.
- Transfer the tool to the other side of motorcycle and put the 90° angle end is swing-arm pivot bolt again. Do not readjust pointer.
- Adjust the axle until both sides measure the same distance.
- Adjust chain adjusters for proper chain tension.
