Model

KA-8328A

Specification:

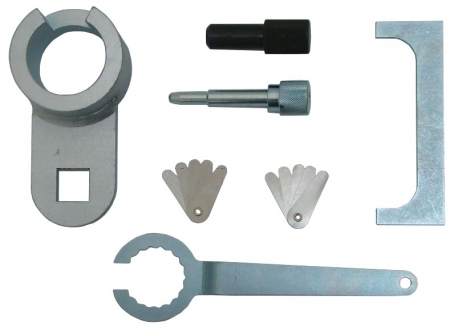

• Set of engine timing locking tools for use on Volkswagen 2.4D with engine codes AAB, AJA(02/95-03)
• The correct alignment is achieved by placing equal thickness of shims (C) between both ends of the bracket and the cylinder head
• Camshaft Setting Strap (B) is used to set the correct timing position of the camshaft
• The centre Part of the bracket fits into the slotted end of the camshaft and the ends of the bracket locate on the cylinder head
• Injection Pump Pulley Setting Spigot (D) is 15.4mm in diameter and is used on engines with a one piece Injection Pump Sprocket
• The Crankshaft Damper Holding Tool (A) prevents the damper from rotating whilst unfastening and refastening the centre bolt. This tool should be used with 3/4”D power bar
