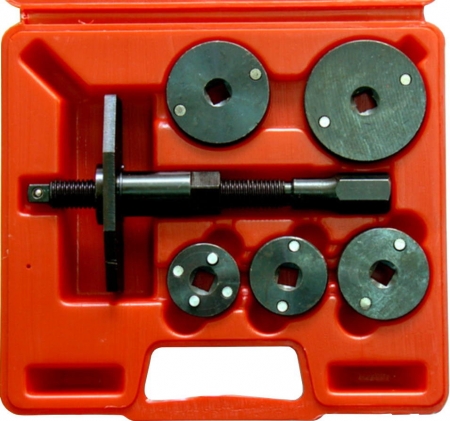

| Disc Size | Repair Part | Applications |
|---|---|---|
| 1-1/2” | 11-1 | (Narrow Pins) MOST HONDA, MAZDA, DODGE CONQUEST, MITSUBISHI, SUBARU & 1-1/2” GENGERAL MOTORS. |
| 1-1/2” | 11-2 | (Wide Pins)MOST FORDS, TOYOTAS, FIERO & SUBARU |
| 1-5/8” | 11-3 | MOST NISSAN, SUBARU,DATSUN & FORD |
| 1-7/8” | 11-4 | GENERAL MOTORS 1-7/8” PISTONS |
| 2-1/8” | 11-5 | GENERAL MOTORS 2-1/8” PISTONS |
| 2-1/2” | 11-6 | GENERAL MOTORS 2-1/2” PISTONS |
INSTRUCTION:
- Remove the old brake pads.
- Select the proper adapter and install it onto the 3/8” square on the center screw.
- Place tool in the caliper. Turn the holding collar counter-clockwise until the holding plate pushes against the caliper and the adapter pins seat against the pistons. Do not over-tighten the center screw causing the piston to be hard to turn.
- Use a 1/2” ratchet to turn the center screw until the piston bottoms in its bore.
