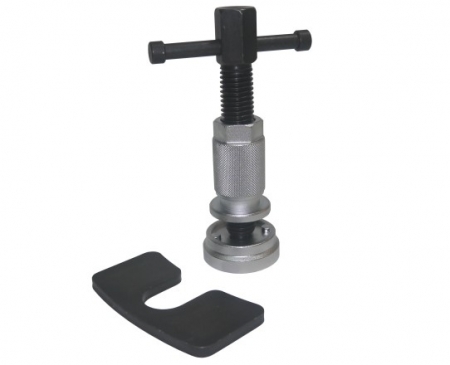

Disc Park Brake Caliper Tool
Model
KA-3041
Specification:
- Use for : FORD, AUDI, SAAB, VW
- New designed tool body & all disc.
- All H/D magnetic socket adapter
- A comprehensive kit for both push-back & wind-back disc brake piston service applications on ‘collete’ type brake assemblies.
- Essential for brake pad replacement & caliper servicing
- Enables necessary pressure to be applied to return piston into housing & provide clearance for new pads to be fitted.
- Kit comprises, main body/screw assembly.
Instruction:
- Remove the old brake pads.
- Select the proper adapter and install it onto the 3/8” hex on the center screw.
- Place tool in the caliper. Turn the holding collar counter-clockwise until the holding plate pushes against the caliper and the adapter pins seat against the pistons. Do not over-tighten the center screw causing the piston to be hard to turn.
