Master Seal Service Tool Set

KA-7580K
KA-7580K

Model

KA-7580K

ADD INQUIRY

Description

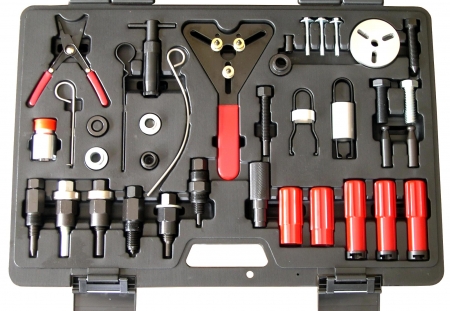

  • The set includes all the tools from KA-7485K, KA-7498K, KA-7500K, KA-7483K and KA-7583K in a H/D blow case.
  • Easy to understand instruction manual will show you step-by-step how to service all the popular compressors.

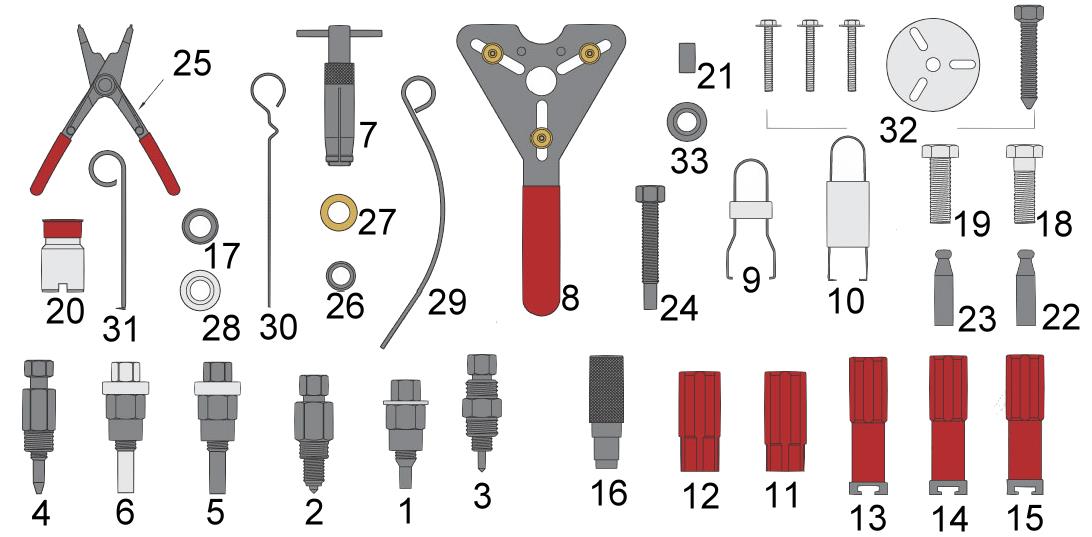

Contains:

1. KA-0119  clutch plate installer 18. KA-0167  5/8”x2”x18 SAE clutch remover
 2. KA-0157  clutch plate remover 19. KA-0168  5/8”x2”x11 NC clutch remover
 3. KA-0158  clutch plate remover 20. KA-0169  seal installer & plate alignment
 4. KA-0159  clutch plate remover 21. KA-0170  shaft protector
 5. KA-0160  clutch plate installer

22. KA-0120  seal protector sleeve
 6. KA-0161  clutch plate installer 23. KA-0171  seal protector
 7. KA-0162  ceramic seal seat remover & installer 24. KA-0172  clutch plate remover arbor
 8. KA-5010  universal clutch holding tool 25. KA-0135  internal snap ring pliers
 9. KA-0163  seal remover 26. KA-0129  clutch plate installer
10. KA-0137  seal seat remover 27. KA-0173   O-ring installation guide
11. KA-0140  seal seat installer 28. KA-0174   O-ring installation guide
12. KA-0164  O-ring snap-ring installer 29. KA-0175  YORK & TECHMSEH oil level dipstick
13. KA-0123  seal remover & installer 30. KA-0149  CHRYSLER oil level dipstick
14. KA-0165  seal remover & installer 31. KA-0138  O-ring seal sleeve remover
15. KA-0166  seal remover & installer 32. KA-0106  clutch plate puller
16. KA-0116  seal seat remover 33. KA-0176  O-ring installation guide
17. KA-0115  seal seat installer
