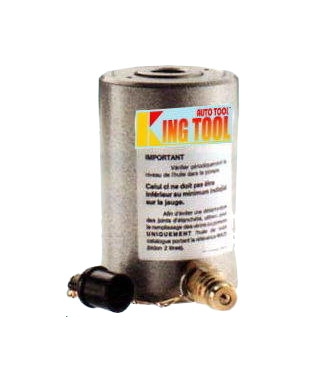

UWG Hollow jacks

KA-7726A B
KA-7726A B

Model

KA-7726A / KA-7726B

ADD INQUIRY

Description

  • For use with pullers.
  • Plunger with tapped through-hole to take a centre screw for pressure or pulling applications.
  • Actuated by 700 bar pump.
  • Caps clip into plunger, allowing use as lifting jack.

ITEM NO. Force KN Travel
mm		 H
mm		 A
mm		 B
mm		 Oil capacity cm3
KA-7726A 200 50 160 100 23.8 141.5
KA-7726B 300 60 177 115 29.0 257.4
