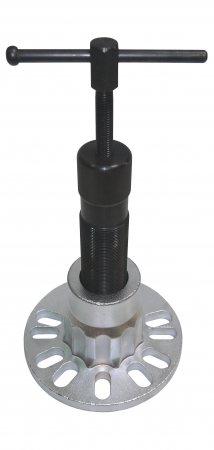

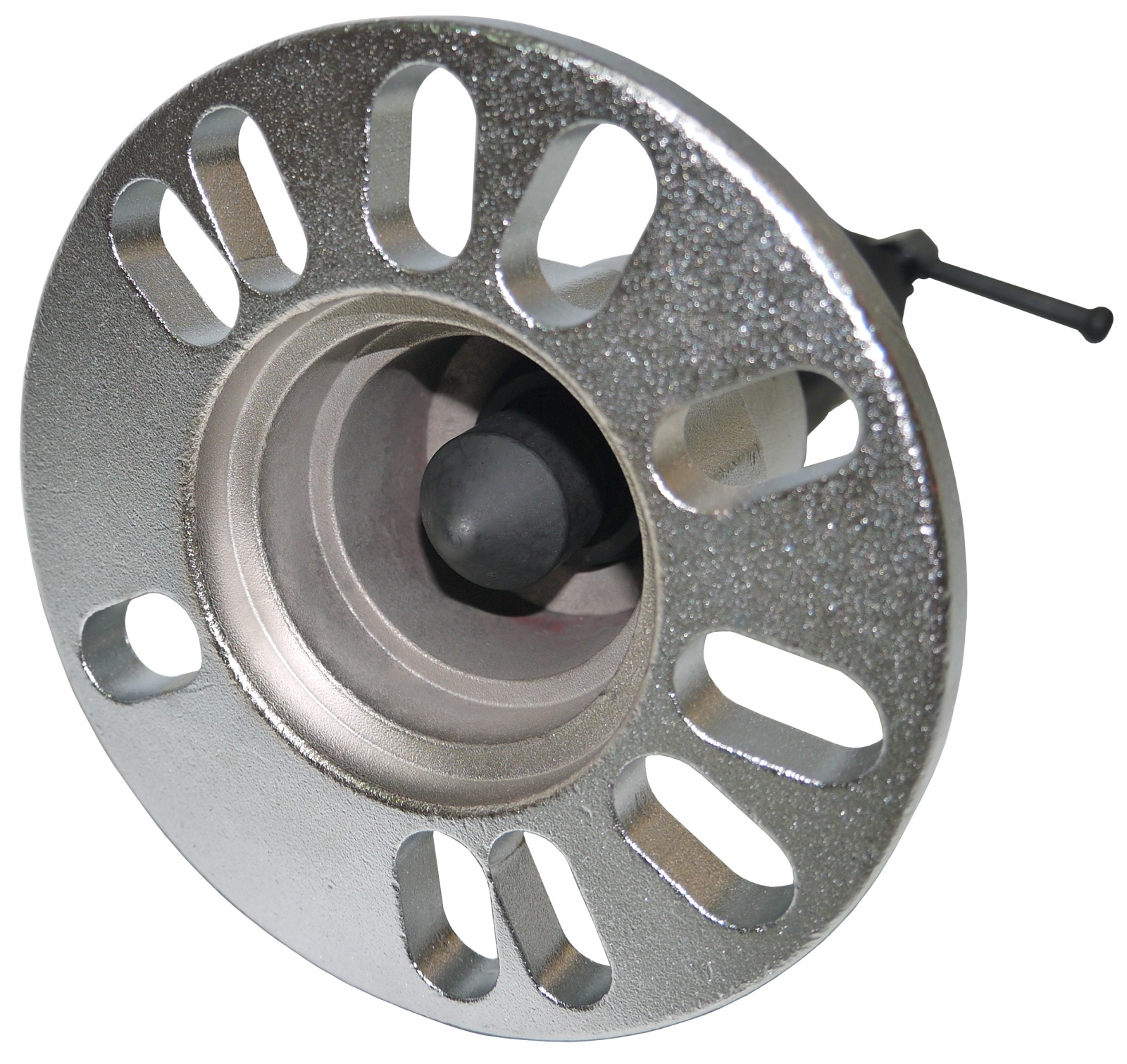

Hydraulic Ram Set – 10 holes plate

KA-3663NA
KA-3663NA

Model

KA-3663NA / KA-3663NAL

Specification:

  • S45C Ø 37.7mm 16T
  • Capacity: 12 Tons
  • T-type Hex. Head for either hand or torque wrench usages.
  • Height: 90mm
  • Depth for bearing 55, 64, 75mm
  • Suitable for 3, 4, 5 bolt
ADD INQUIRY

KA-3663NA Small plate
  • Diameter of disc: 148.5mm
  • Range: 96 ~ 123mm
KA-3663NAL Big plate
  • Diameter of disc: 164mm
  • Range: 96 ~ 138mm
