Description

• The tool delivers 20 tons of hydraulic force to push out stubborn king pins on large trucks with king pin diameters up to 1-1/4”.
• Also able to remove the brake shoe anchor pins on trucks.

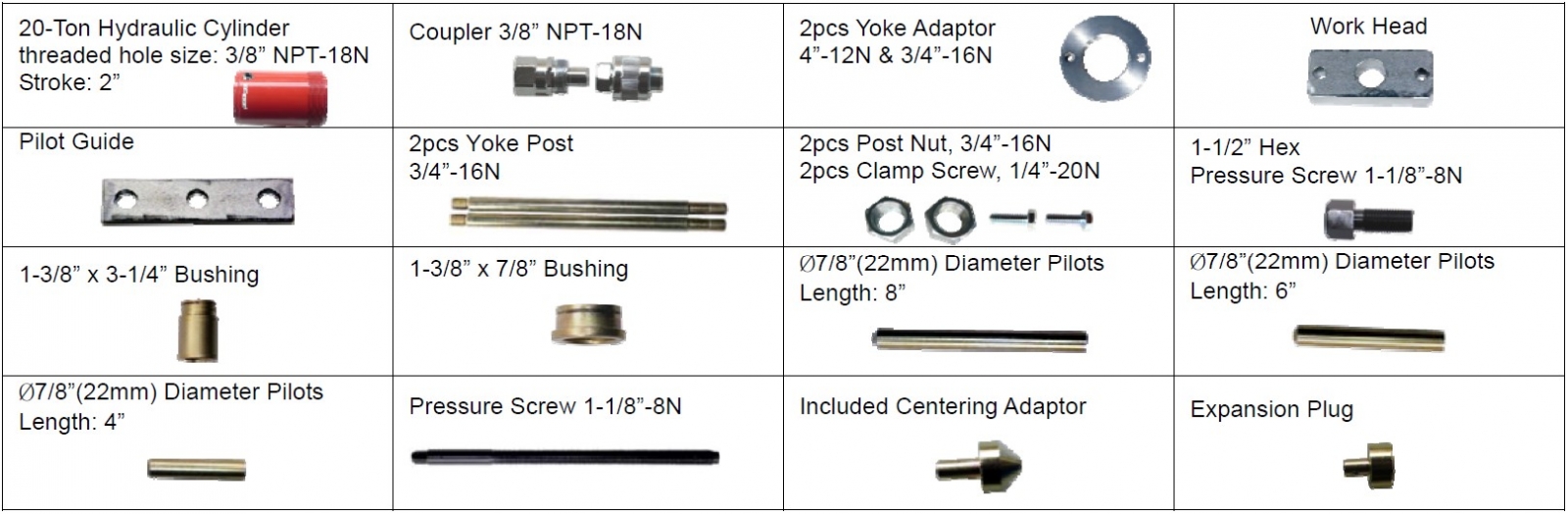

• Has wide side arm construction and three pilots {Ø7/8” (22mm) x 4”, 6”, 8”} and two guide bushing {1-3/8” x 7/8” , 1-3/8” x 3-1/4”} allow this unit to work on both straight and tapered kingpins.
• The removal of King Pins can now be done in minutes with relative ease and efficiency.
• Applicable in assembled truck front axle.
